51 43 148 Removing and installing or replacing trim on left or right door pillar (top)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove panel for door pillar (bottom). See 51 43 150 Removing and installing or replacing trim for left or right door pillar (bottom)

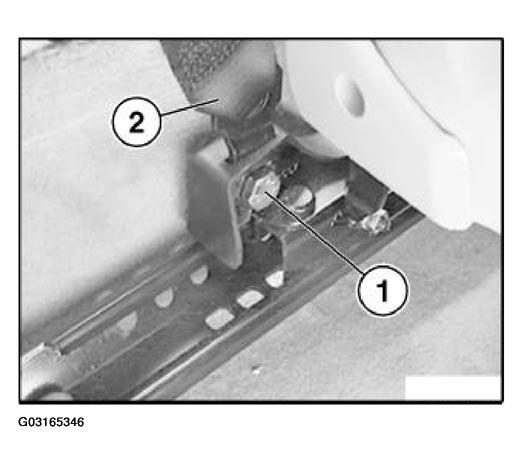

Release seatbelt screw (1) on front seat and feed out seatbelt strap (2).

Fig 1: Removing Seatbelt Strap

G03165346

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque, refer to 72 11 1AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 325I, CI & XI - E46 .

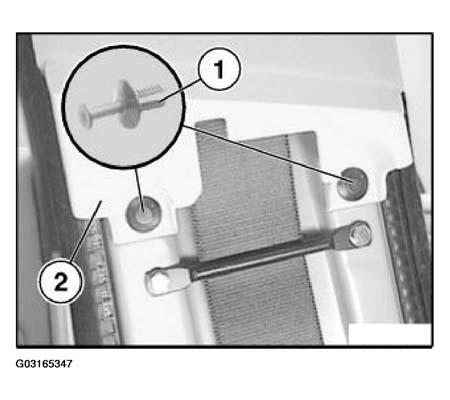

Release expansion rivets (1) on panel (2).

Fig 2: Removing Expansion Rivets On Panel

G03165347

Courtesy of BMW OF NORTH AMERICA, INC.

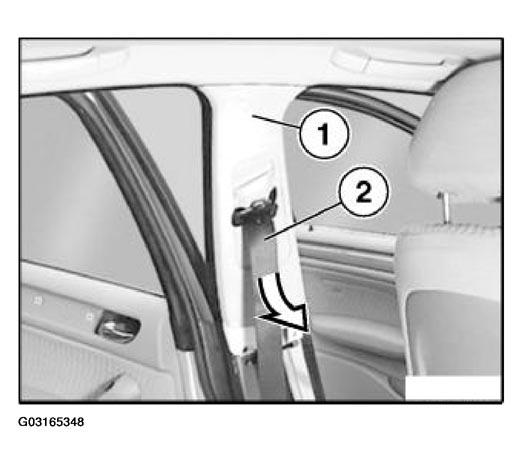

Pull off door pillar trim panel (1) at top towards bottom.

Feed out seatbelt strap (2).

Fig 3: Removing Seatbelt Strap

G03165348

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

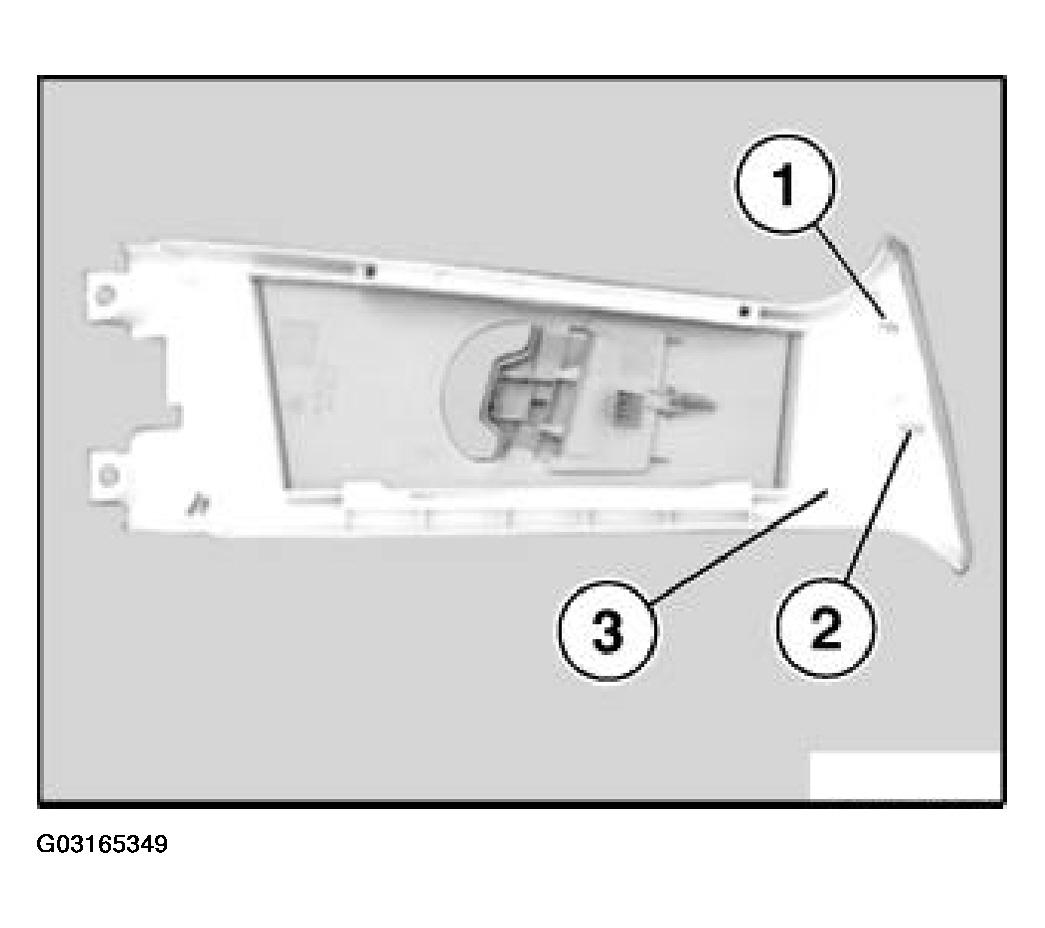

Locator (1) and guide (2) on panel (3) must not be damaged.

Fig 4: Identifying Locator And Guide On Panel

G03165349

Courtesy of BMW OF NORTH AMERICA, INC.
