51 43 150 Removing and installing or replacing trim for left or right door pillar (bottom)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front entrance cover strip

Unclip clips (1) at bottom.

Feed out panel (2) for door pillar from entrance cover strip (3).

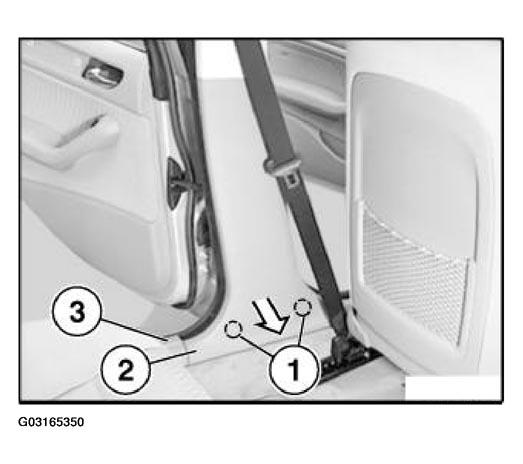

Fig 1: Removing Panel For Door Pillar From Entrance Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully feed out bottom panel (1) from top panel (2).

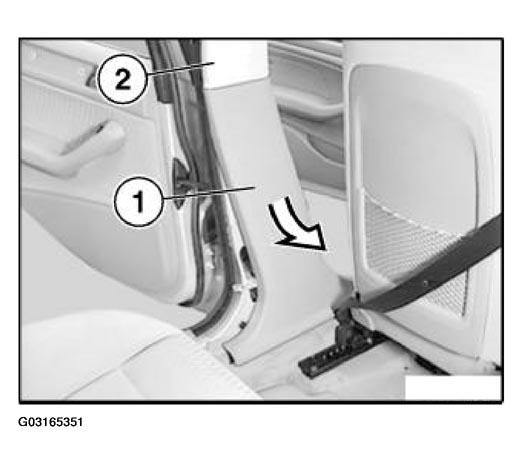

Fig 2: Removing Bottom Panel From Top Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Partially detach mucket in area of B-pillar panel.

Installation:

If necessary, replace faulty clips (1).

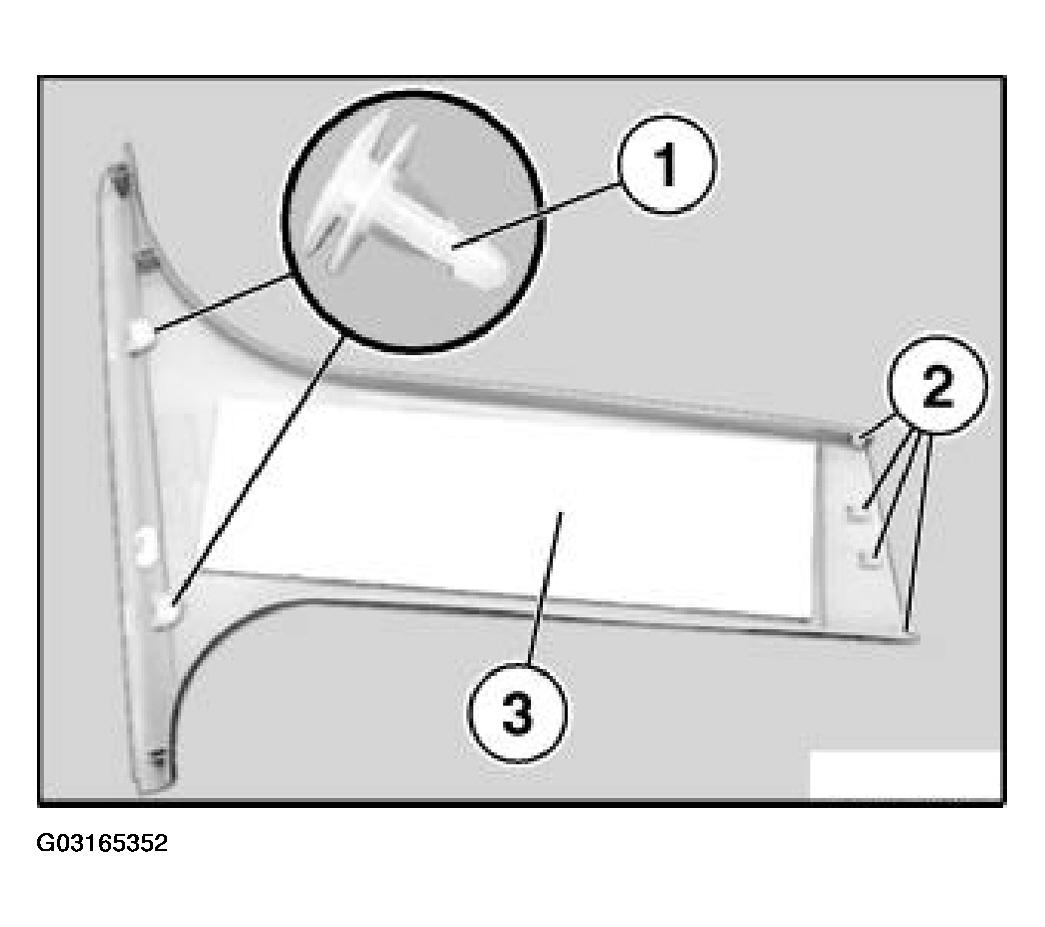

Fig 3: Installing Clips On Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Guides (2) on panel (3) must not be damaged.
