51 42 001 Replacing left or right rear door trim

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear door trim,

refer to 51 42 000 REMOVING AND INSTALLING REAR LEFT OR RIGHT DOOR TRIM PANEL .

Version with window crank:

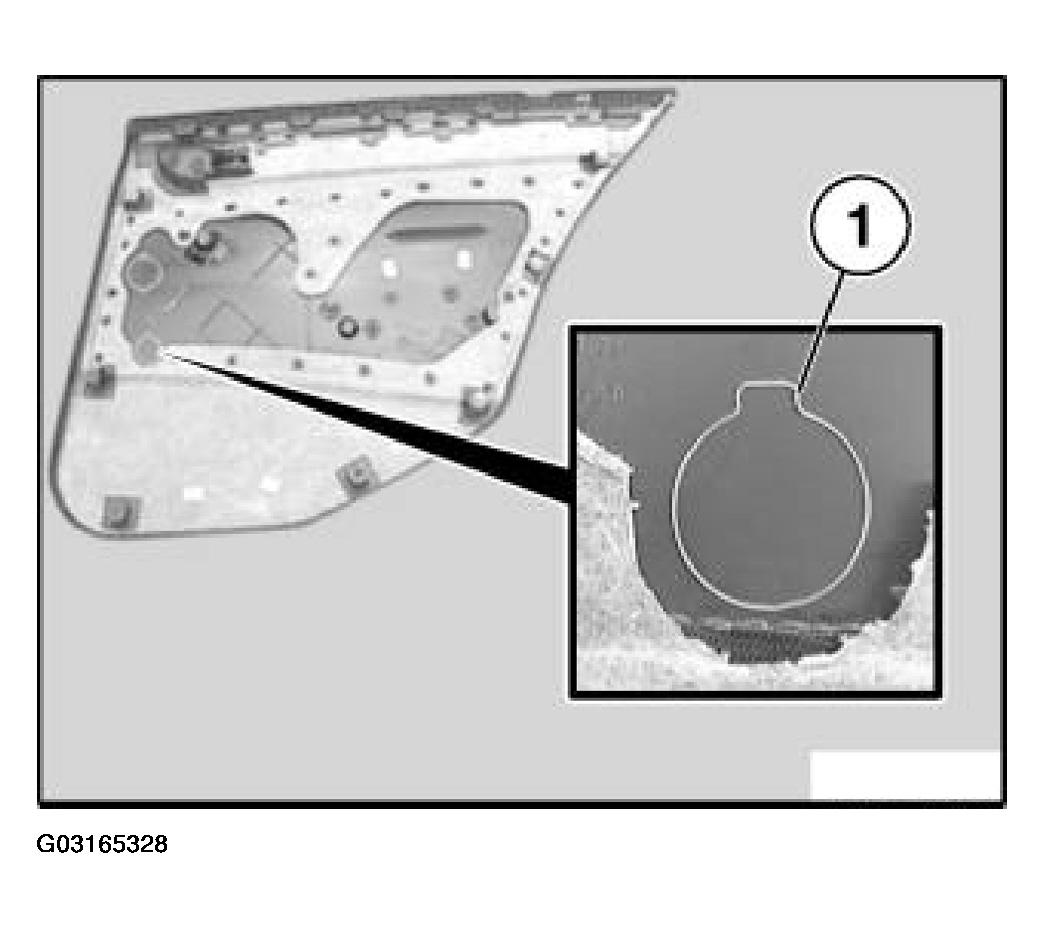

A marking (1) is provided on the new door trim panel for the window crank.

Fig 1: Identifying Marking On New Door Trim Panel For Window Crank

G03165328

Courtesy of BMW OF NORTH AMERICA, INC.

Make cutout for window crank:

Create opening for HiFi speaker,

refer to 51 42 510 CREATING OPENING FOR HIFI SPEAKER (OR WINDOW CRANK) .

Version with Hifi system:

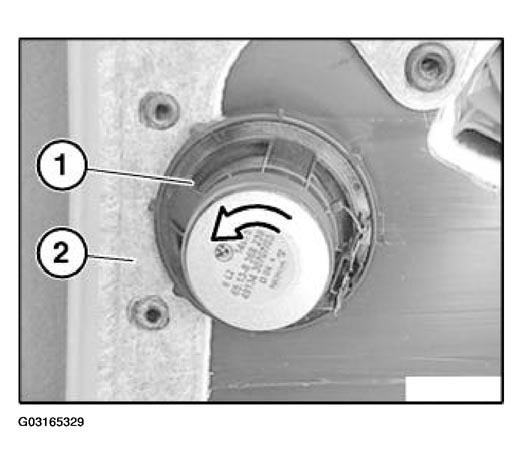

If necessary, detach speaker (1) and remove from door trim panel (2).

Fig 2: Removing Speaker

G03165329

Courtesy of BMW OF NORTH AMERICA, INC.

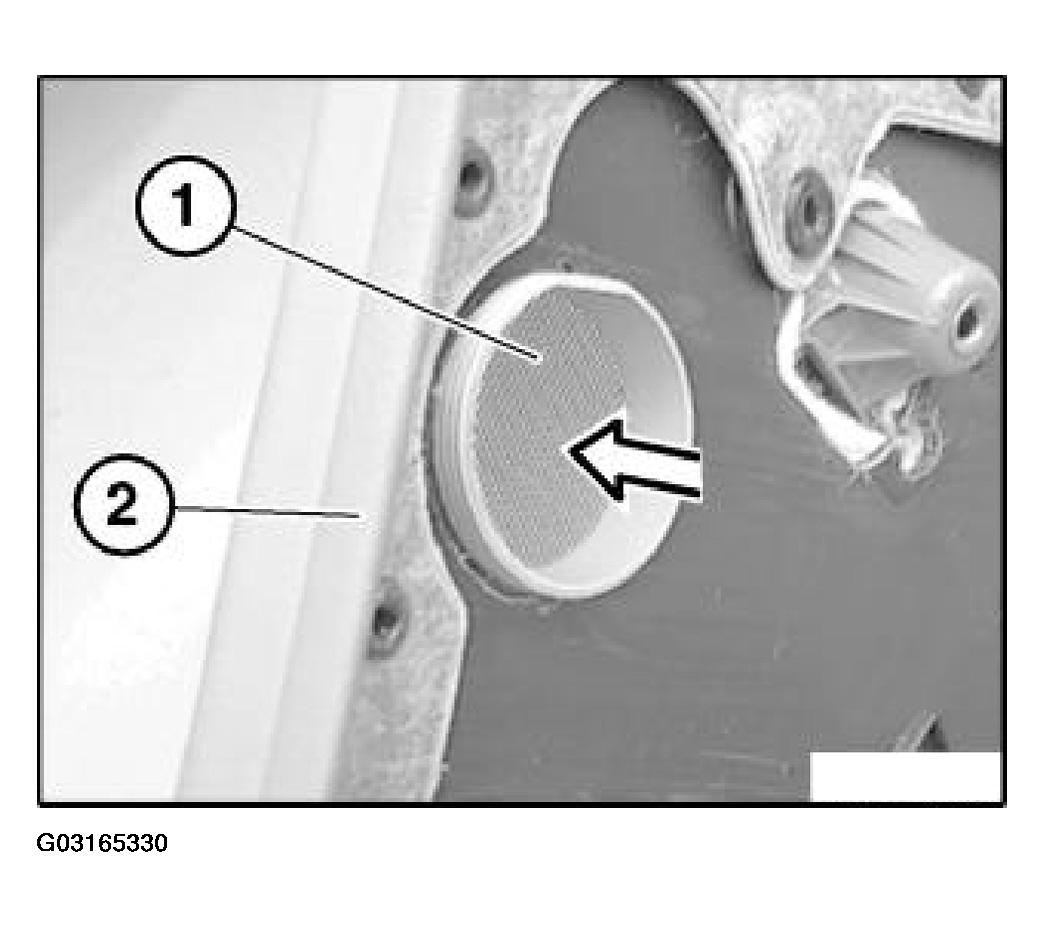

If necessary, remove speaker cover (1) from door trim panel (2).

Fig 3: Removing Speaker Cover From Door Trim Panel

G03165330

Courtesy of BMW OF NORTH AMERICA, INC.

Remove loudspeaker.

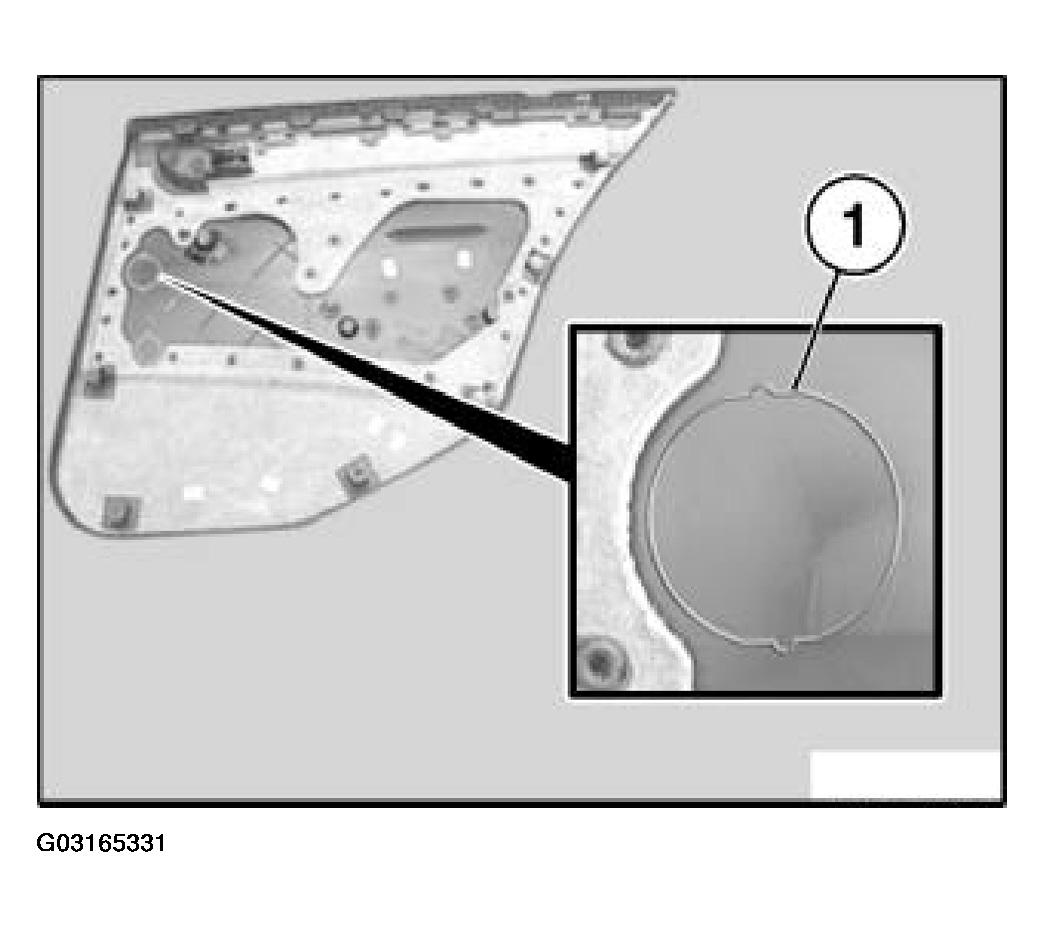

A marking (1) is provided on the new door trim panel for the speaker.

Fig 4: Identifying Marking On New Door Trim Panel For Speaker

G03165331

Courtesy of BMW OF NORTH AMERICA, INC.

Make cutout for HiFi speaker:

Create opening for HiFi speaker,

refer to 51 42 510 CREATING OPENING FOR HIFI SPEAKER (OR WINDOW CRANK) .
