51 42 510 Creating opening for HiFi speaker (or window crank)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Door or side trim panel removed.

NOTE: The aperture is created with a commercially available hot cutter (1) with replaceable blades (2).

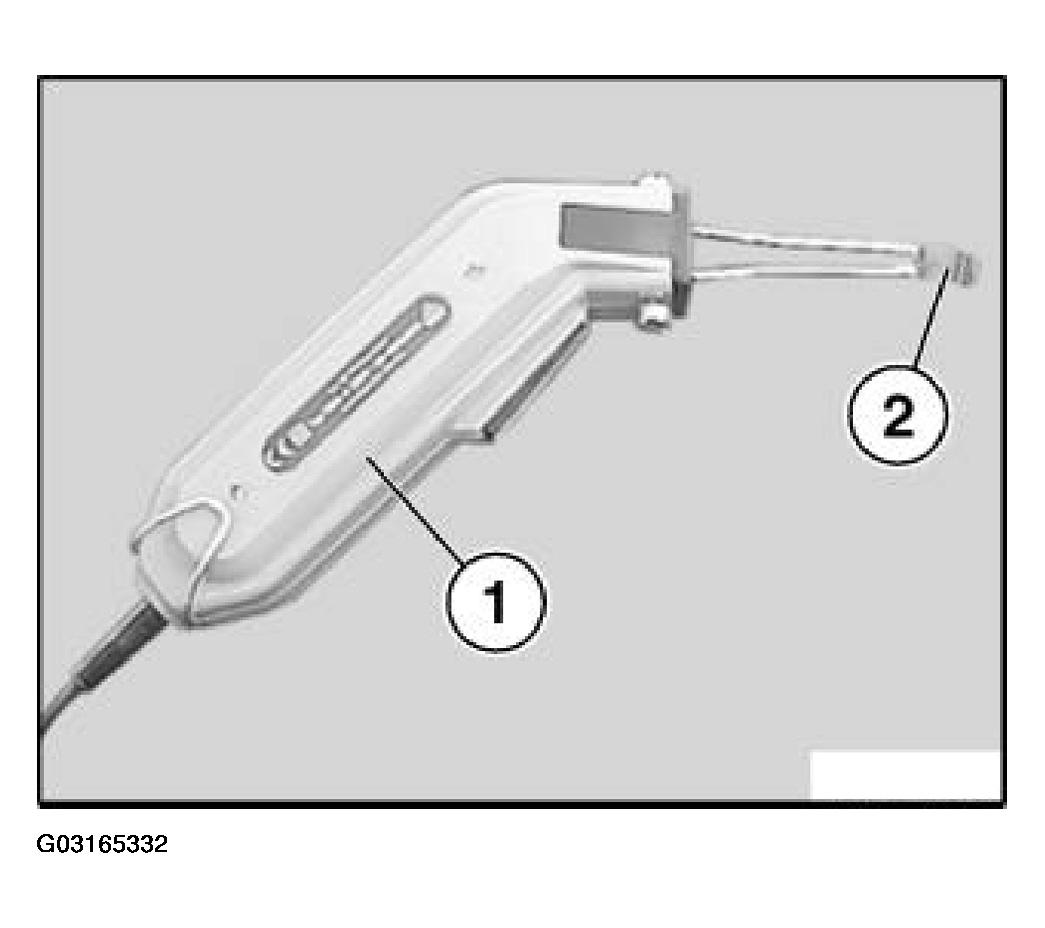

Fig 1: Identifying Hot Cutter

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Be careful not to burn yourself when using hot-cutting equipment. Do not inhale fumes. When working indoors: Ensure room is well ventilated. Remove the fumes generated during cutting with a fume extraction facility.

General information:

Further safety precautions, refer to operating instructions for hot-cutting equipment.

Position blade (1) of hot cutter inside marking (2), push through and cut out along marking (2).

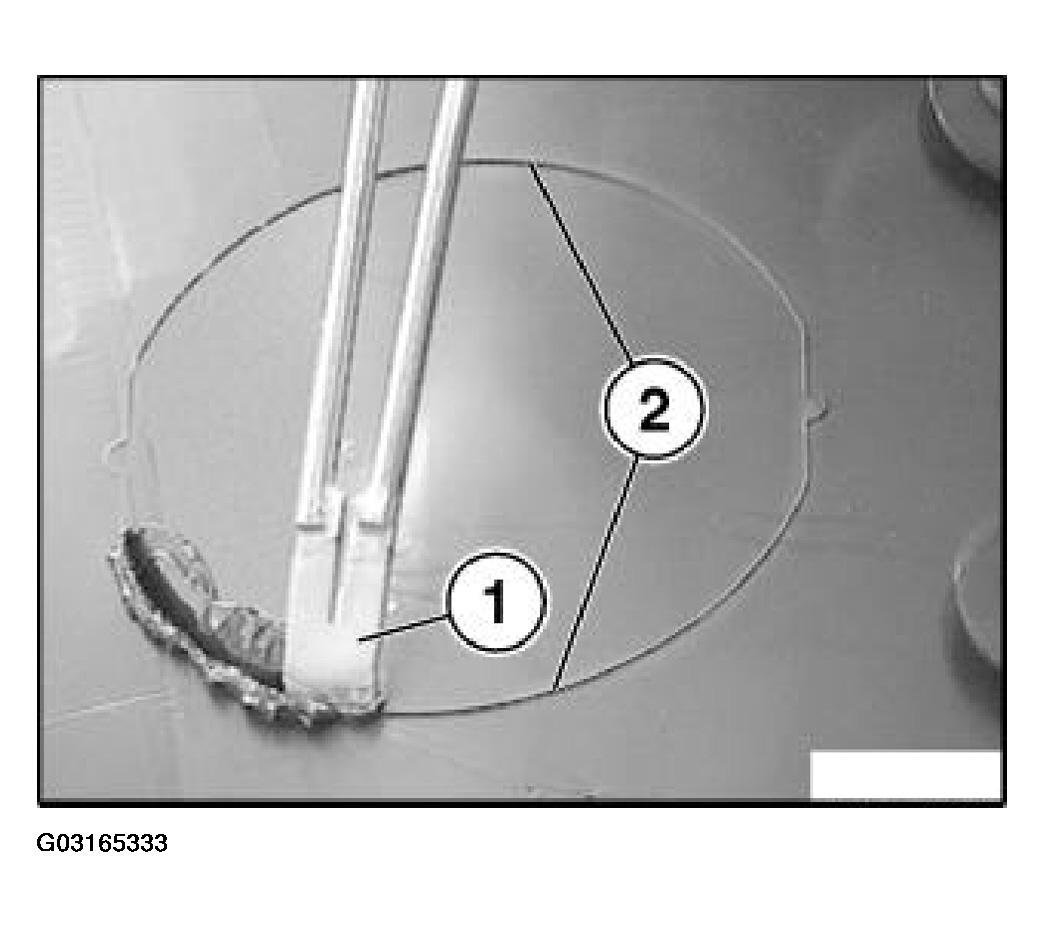

Fig 2: Cutting Trim Along Marking

Courtesy of BMW OF NORTH AMERICA, INC.

Remove remaining area (1) on door trim panel (2) with a scalpel until flush.

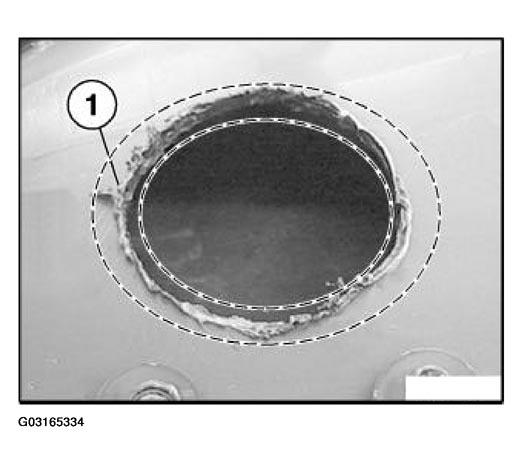

Fig 3: Removing Remaining Area On Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
