(bumper removed)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

If necessary, remove complete rear bumper, refer to 51 12 000 REMOVING AND INSTALLING COMPLETE REAR BUMPER (FROM 09.01) .

Installation:

  1. If necessary, mark position of bracket on body.

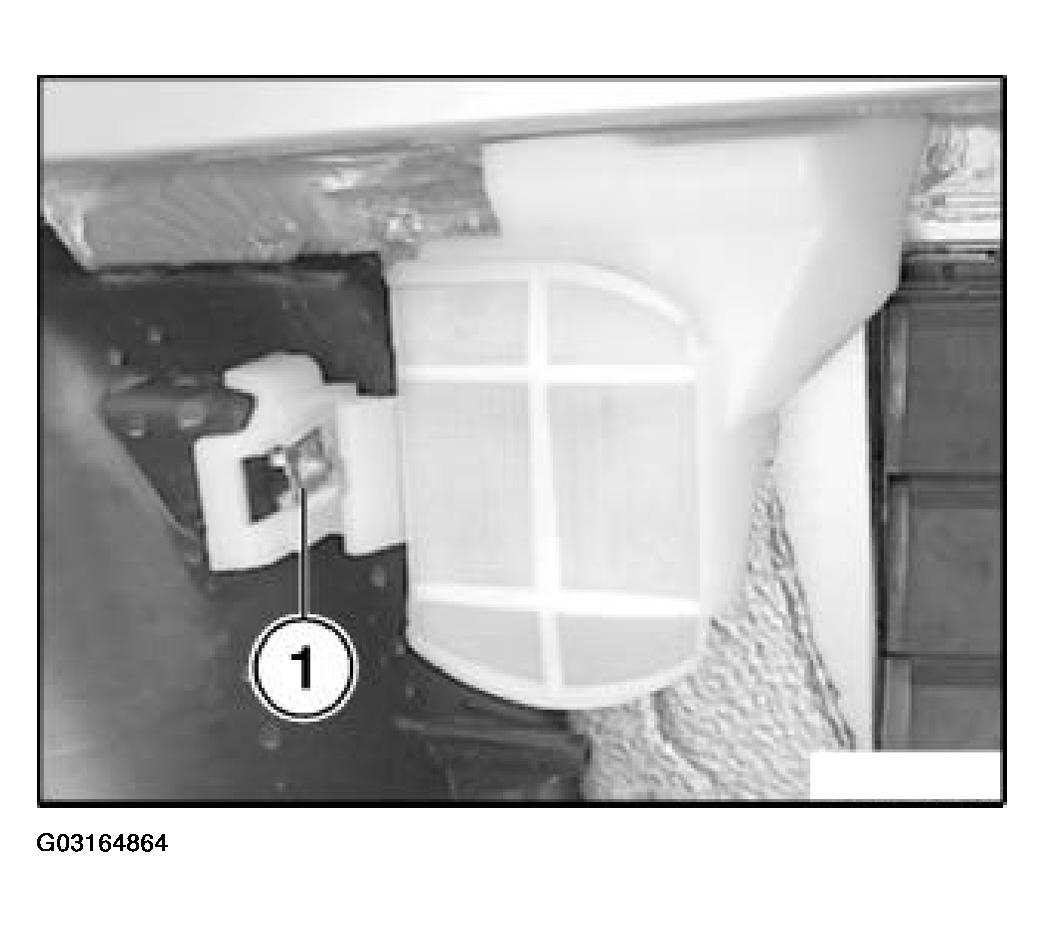

Release screw (1) on wheel arch.

Fig 1: Releasing Screw On Wheel Arch
G03164864Courtesy of BMW OF NORTH AMERICA, INC.

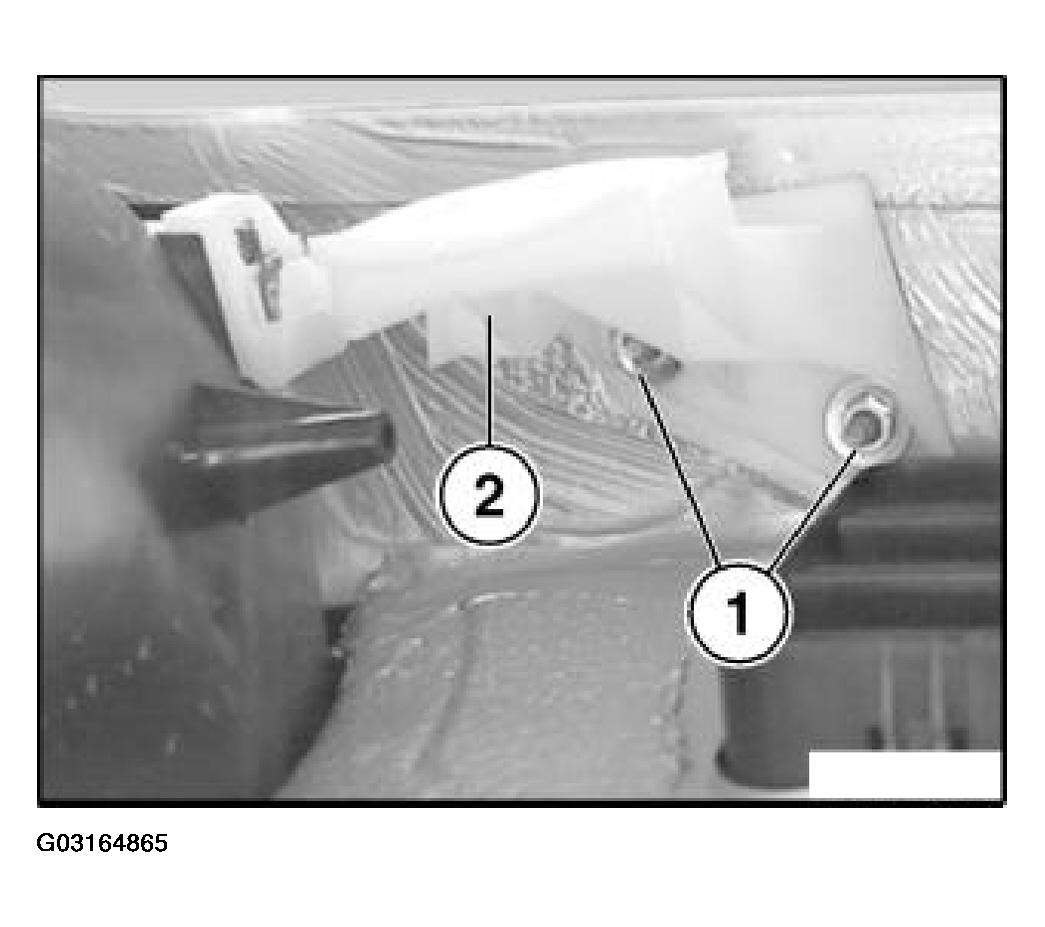

Release nuts (1) and remove bracket (2).

Fig 2: Releasing Nuts And Removing Bracket
G03164865Courtesy of BMW OF NORTH AMERICA, INC.
