51 12 000 Removing and installing complete rear bumper (from 09.01)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Loosen screws (1).

Release screws (2) on impact absorber.

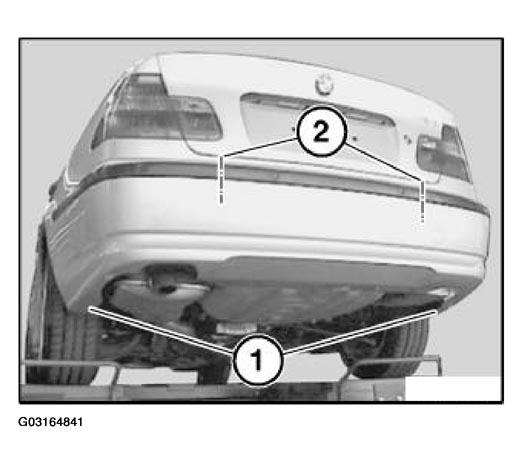

Fig 1: Releasing Screws On Impact Absorber

G03164841

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque, refer to 51 12 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 325I, CI & XI - E46 .

CAUTION: In the following work step, the link (1) on the catch must not be damaged.

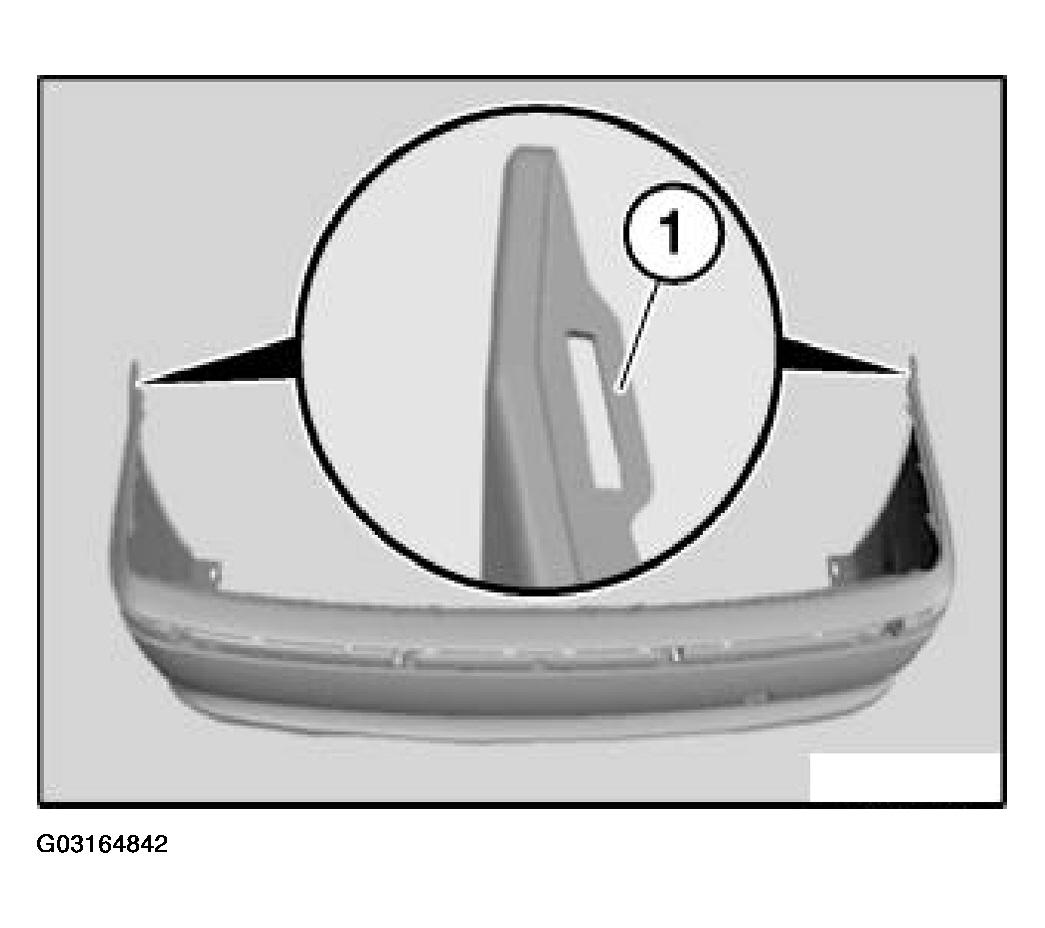

Fig 2: Identifying Link On Catch

G03164842

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully press detent lug (1) downwards.

Detach bumper.

Installation:

If necessary, carefully press detent lug (1) upwards.

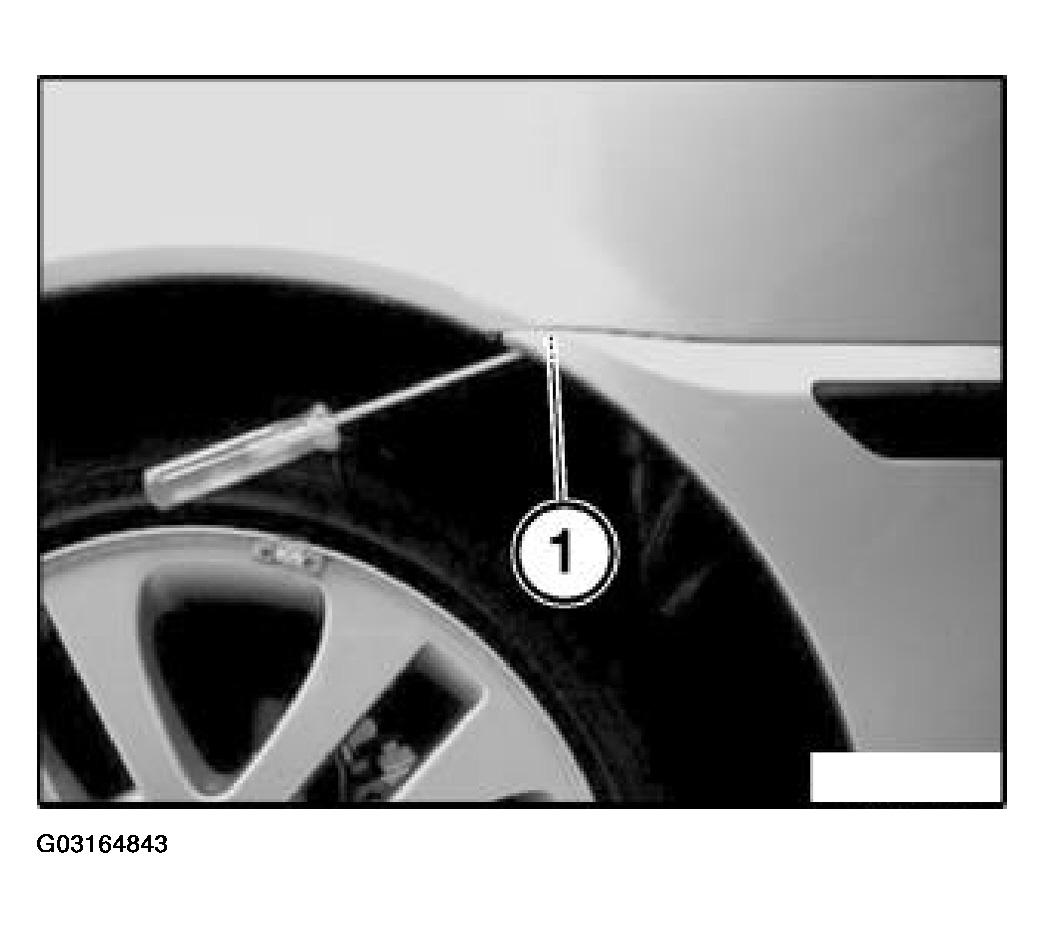

Fig 3: Pressing Detent Lug Upwards

G03164843

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out wheel arch liner (1).

Pull bumper (2) straight towards rear.

If necessary, disconnect plug connections on PDC sensors.

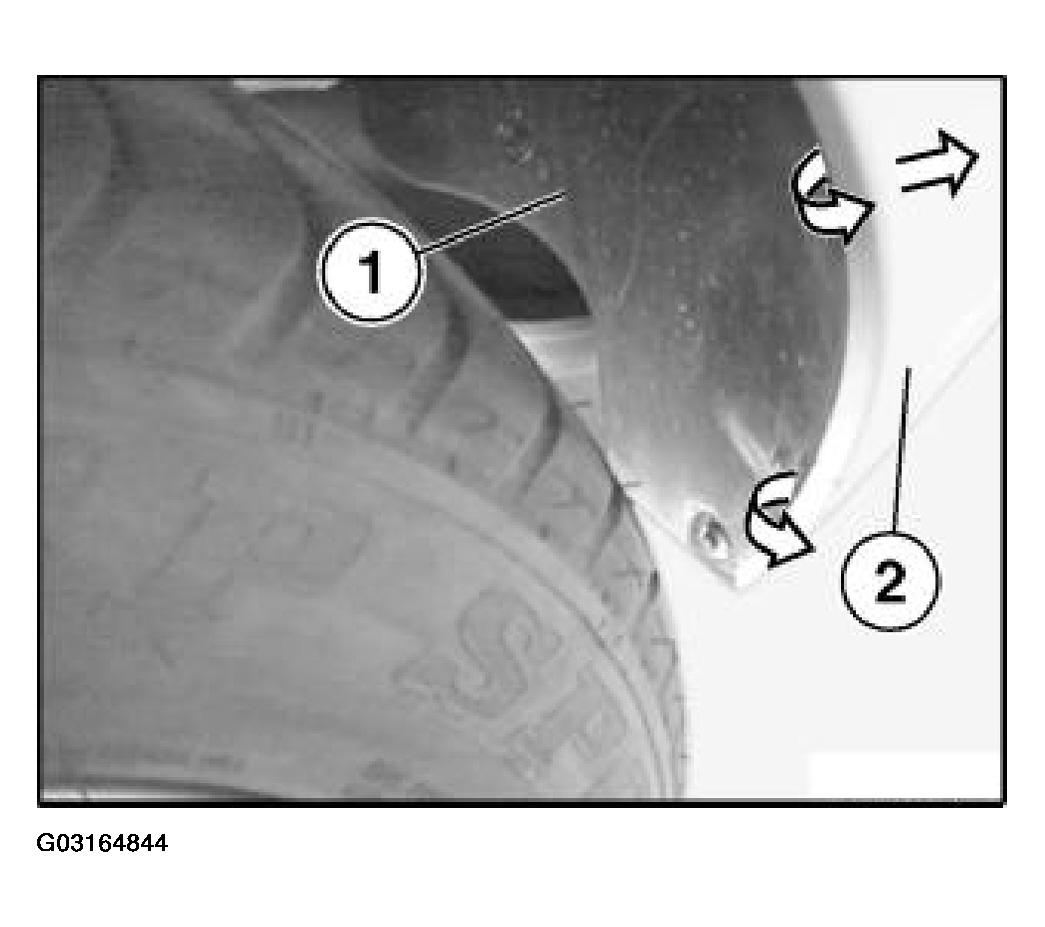

Fig 4: Disconnecting Plug Connections On PDC Sensors

G03164844

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Adjust all-round gap measurement (X) uniformly between bumper and body cutout.

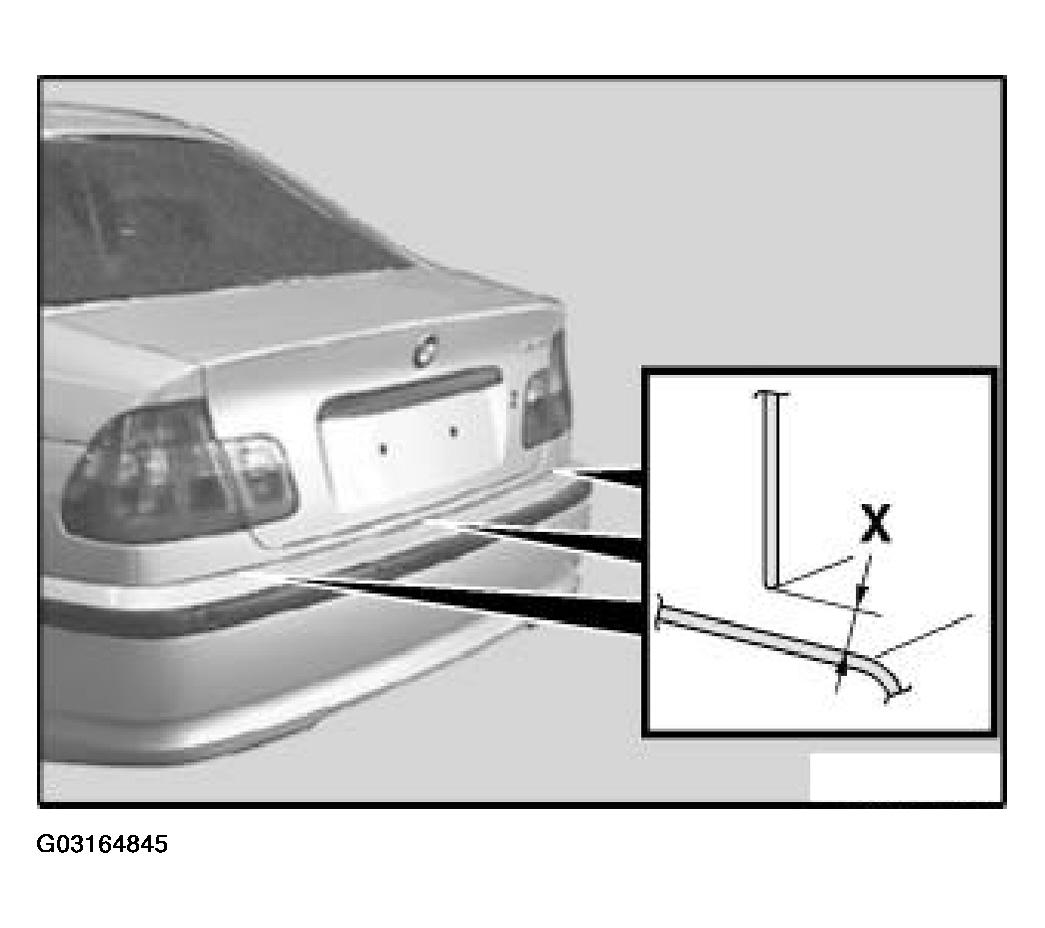

Fig 5: Adjusting All-Round Gap Measurement

G03164845

Courtesy of BMW OF NORTH AMERICA, INC.

Gap measurement (X) = 2^+0.8/-0.5 mm
