51 46 000 Removing and installing/replacing trim for rear parcel shelf
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove rear left/right backrest side section. See 52 26 008 REMOVING AND INSTALLING/REPLACING LEFT/RIGHT SIDES OF BACKREST ON REAR SEAT BACKREST
- Remove rear left/right seat belt. See SEAT BELT PRETENSIONERS (COUPE)
- Remove rear left/right head restraints. See 52 24 390 REMOVING AND INSTALLING/REPLACING REAR HEAD RESTRAINTS (NORMAL)
- Remove left/right trim panels for roof pillar (C-pillar). See 51 43 251 Removing and installing / replacing trim panel for left or right rear roof pillar (C-pillar)
- Remove left/right rear speakers. 65 12 020 REMOVING AND INSTALLING/REPLACING REAR SPEAKER

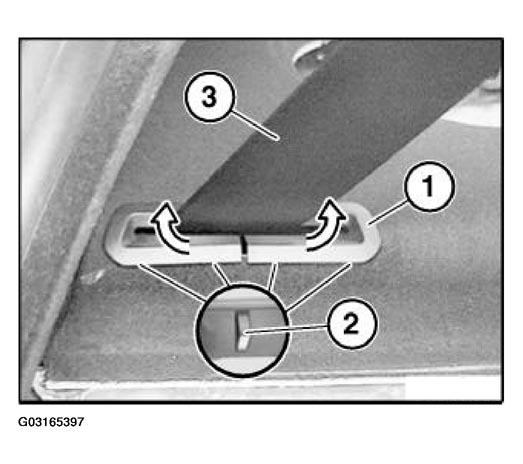

Lever out belt feed trim (1).
Pay attention to catch (2).
Remove belt feed trim (1).
Feed strap (3) out through belt opening.
Disconnect plug connection (3) in speaker opening on right.

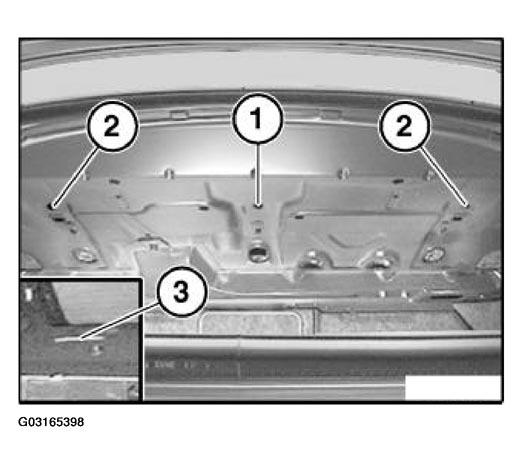

Version with roller sun blind:
Unfasten screws (1 and 2).

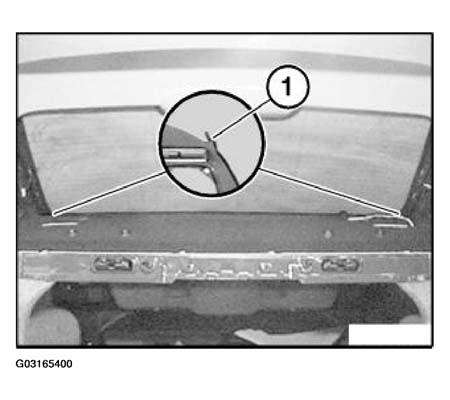

Coupe from 04/2004 without roller sun blind:
Release screw (1).

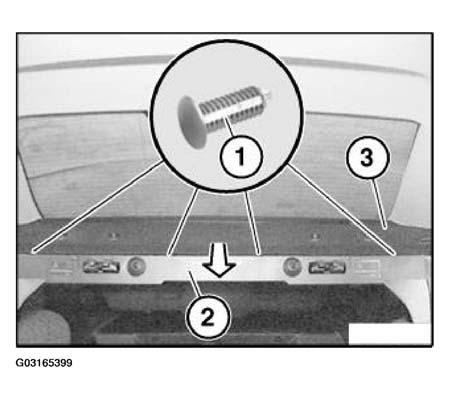

Release clip (1) and remove cover (2).
Pull out rear parcel shelf (3) towards front.
Installation:
Make sure guides (1) are correctly seated on rear parcel shelf.
NOTE:
The operation "Removing trim for rear parcel shelf" ends here.
Replacement:

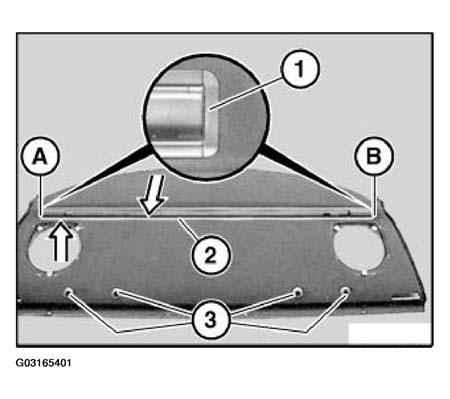

Version with roller sun blind:
Remove trim (1).
Press roller sun blind (2) together at (A) in direction of arrow and press through from (A) to (B).
Remove roller sun blind (2) towards bottom.
Remove trim for head restraints (3).
