51 43 251 Removing and installing / replacing trim panel for left or right rear roof pillar (C-pillar)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Lift out side interior light (1) from C -pillar trim and disconnect plug connection.

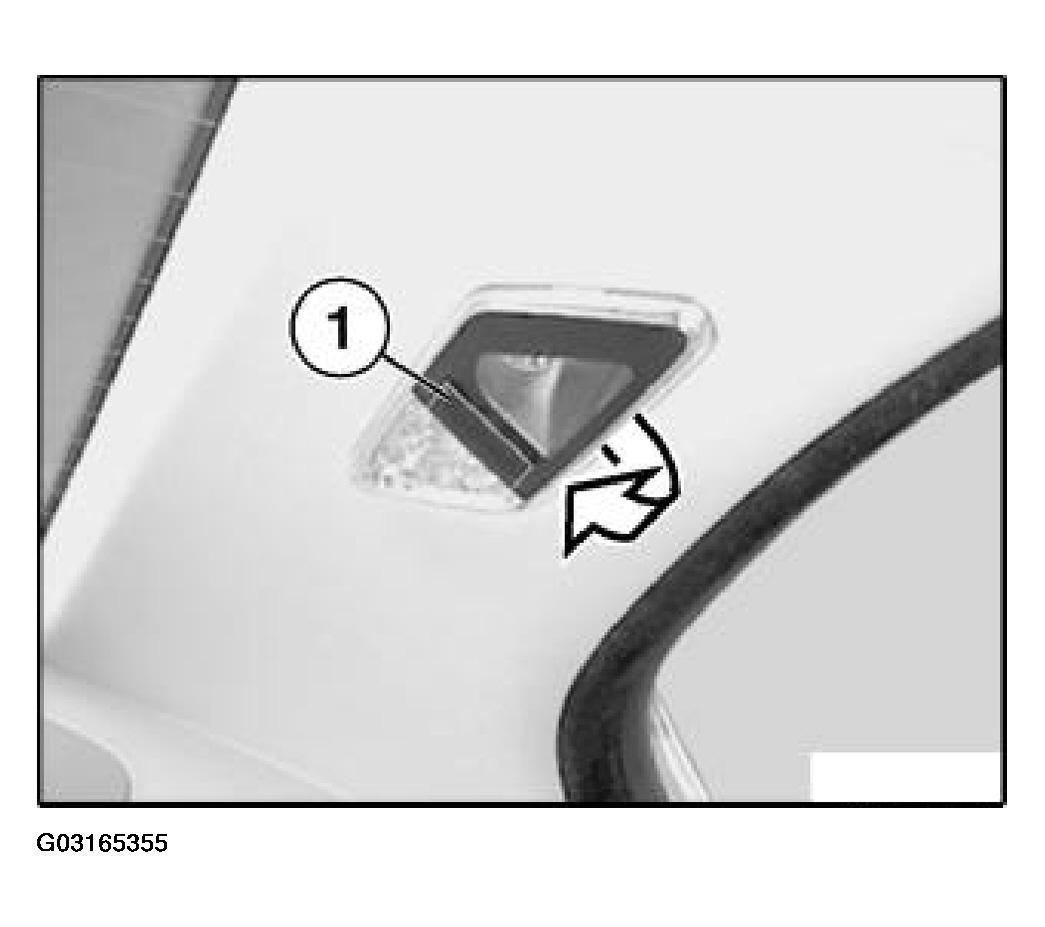

Fig 1: Removing Side Interior Light From C -Pillar Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip clips (1) and remove trim (2) towards inside/top.

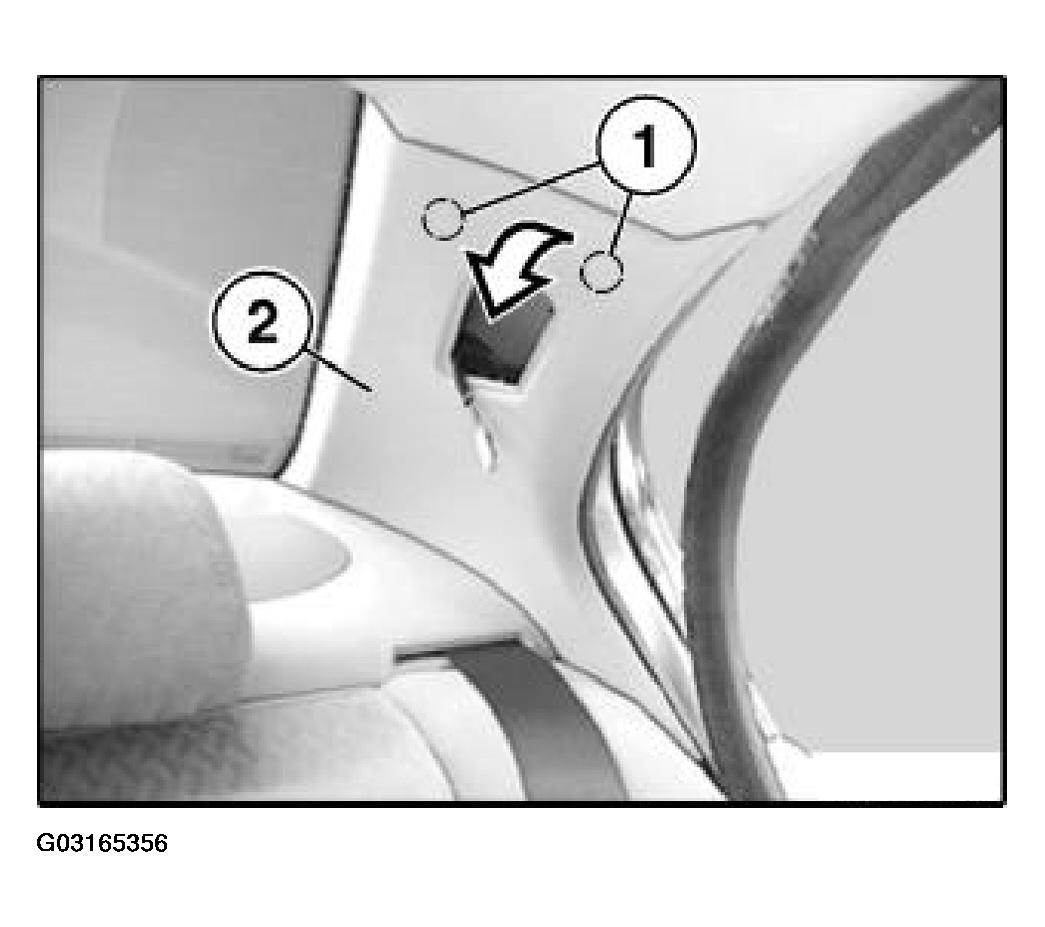

Fig 2: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty clips (1) and (2).

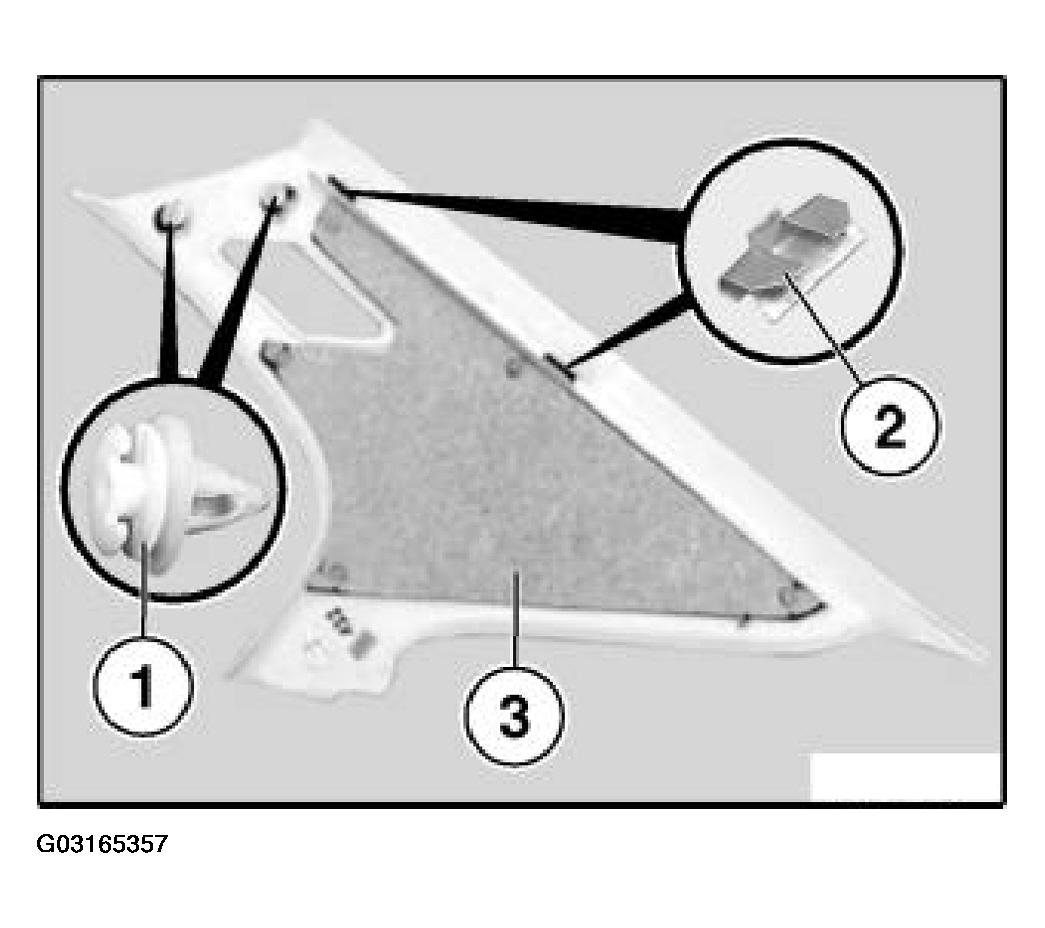

Fig 3: Installing Clips

Courtesy of BMW OF NORTH AMERICA, INC.
