36 10 715 Checking rim for face and radial runout

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove wheel, refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL .

Check front or back wheel for face and radial runout, refer to 36 10 209 CHECKING FRONT AND REAR WHEEL FOR FACE AND RADIAL RUNOUT .

Pull tire off rim.

Remove fitted balancing weights.

Remove dirt from rim well and rim flange.

Mount disk wheel in balancing machine.

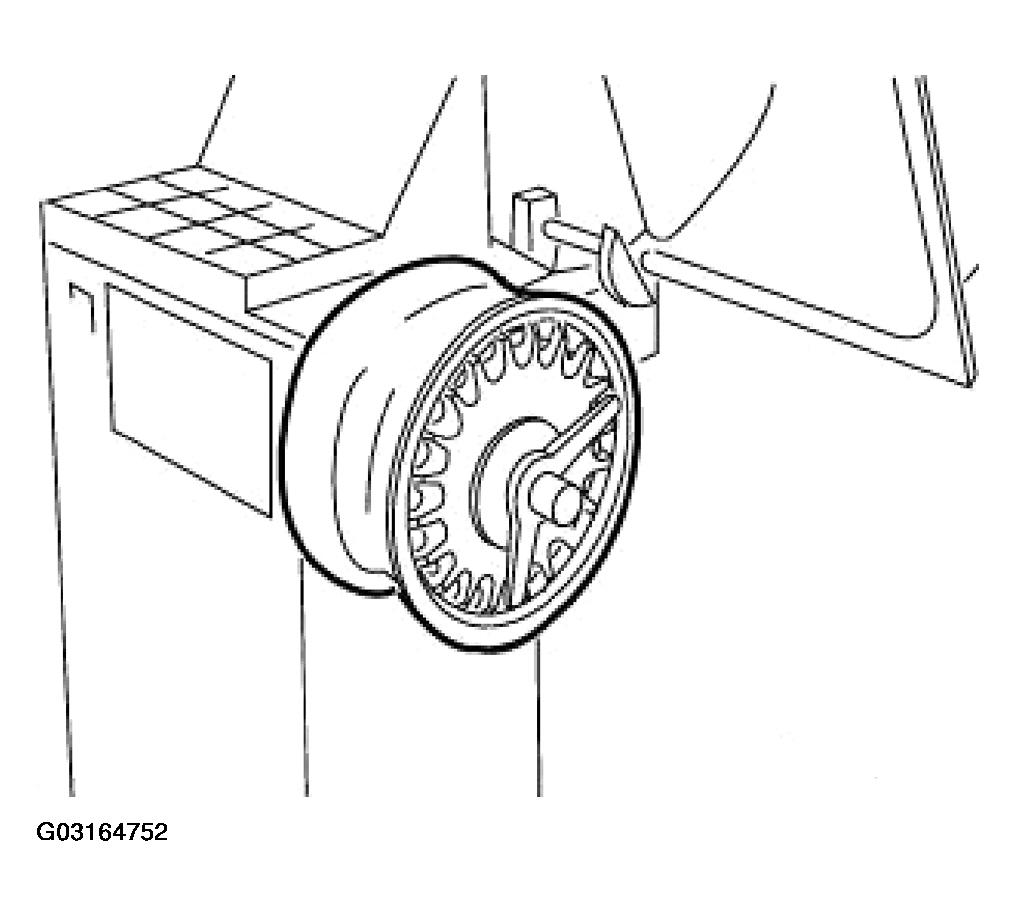

Fig 1: Mounting Disk Wheel In Balancing Machine

G03164752

Courtesy of BMW OF NORTH AMERICA, INC.

Use suitable wheel Centre supplied with corresponding balancing machine.

Basic flange.
Centre.
Type flange.
Clamping nut.

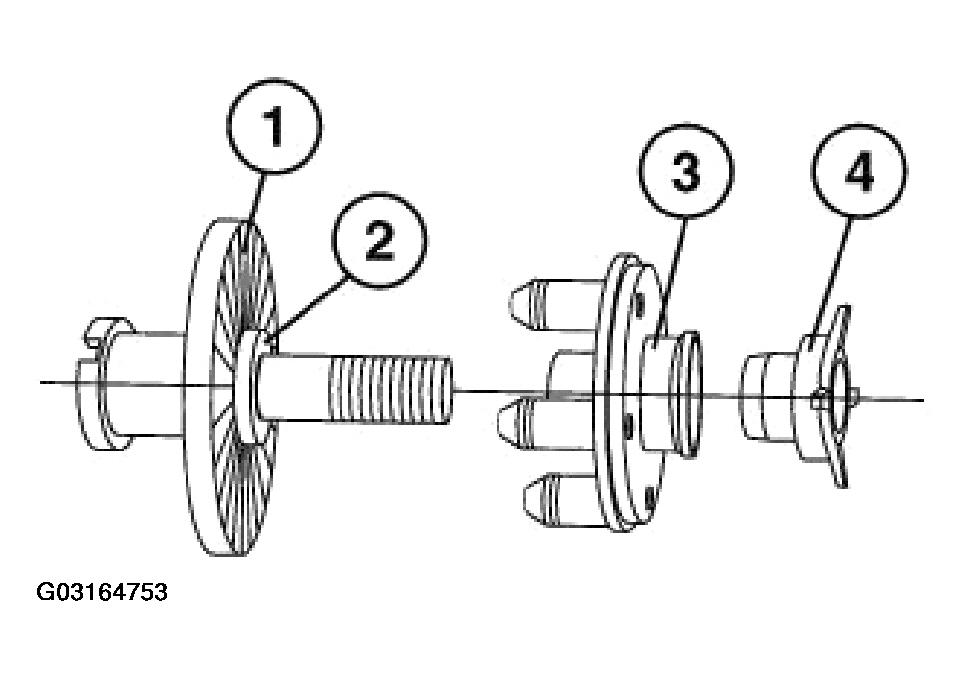

Fig 2: Identifying Balancing Machine Wheel Centre

G03164753

Courtesy of BMW OF NORTH AMERICA, INC.

Place dial gauge sensor on rim shoulder.

Turn wheel by hand and measure maximum radial runout, refer to 36 10 WHEELS ONE-PART ALLOY WHEELS , 36 10 WHEELS STEEL AND ALUMINUM STRIP WHEELS or 36 10 WHEELS TWO-PART ALLOY WHEELS .

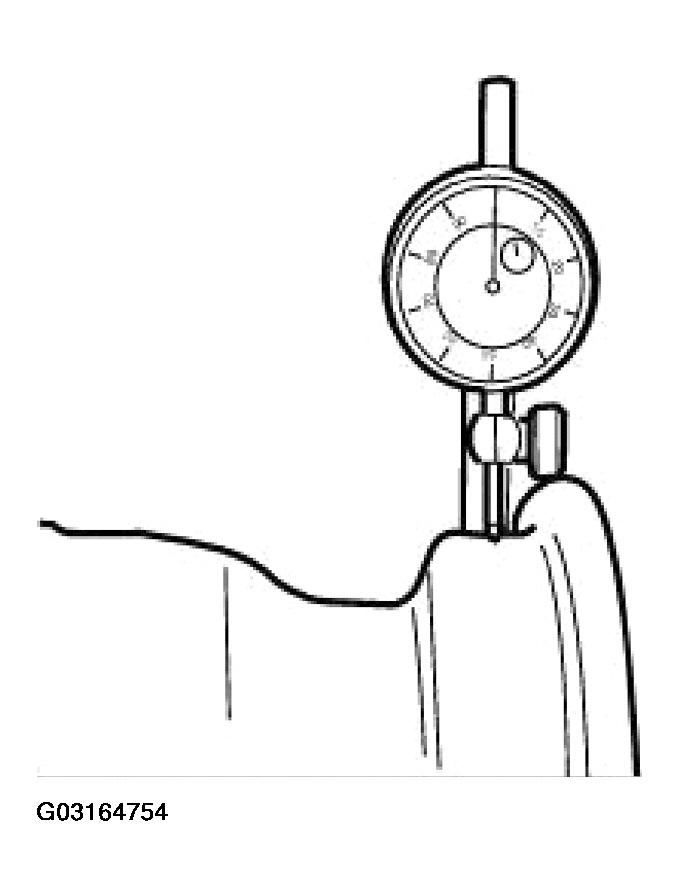

Fig 3: Measuring Maximum Radial Runout

G03164754

Courtesy of BMW OF NORTH AMERICA, INC.

Carry out measurement on both rim shoulder sides.

NOTE: Dial gauge must be vertical to rim shoulder.

Position sensor on rim flange.

Turn wheel by hand and measure maximum lateral runout, refer to 36 10 WHEELS ONE-PART ALLOY WHEELS , 36 10 WHEELS STEEL AND ALUMINUM STRIP WHEELS or 36 10 WHEELS TWO-PART ALLOY WHEELS .

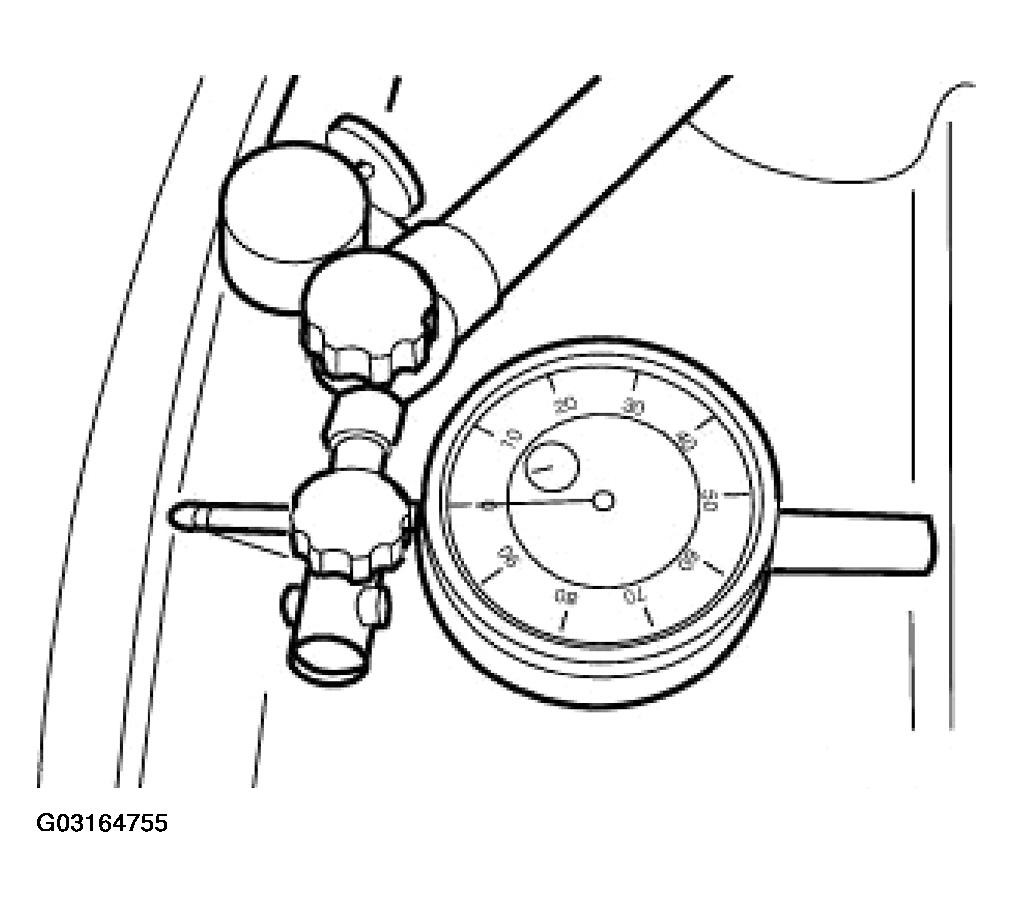

Fig 4: Measuring Maximum Lateral Runout

G03164755

Courtesy of BMW OF NORTH AMERICA, INC.

Carry out measurement on both rim flanges.

NOTE: Dial gauge must be vertical to rim flange.

IMPORTANT: Avoid transformation errors during subsequent installation tasks.
