36 10 209 Checking front and rear wheel for face and radial runout

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

NOTE: For special tools, refer to WHEEL & TIRES - SPECIAL TOOLS - 325i, 325Ci, 325xi (M54/E46) .

36 1 030

IMPORTANT: Wheel bearing must be OK!

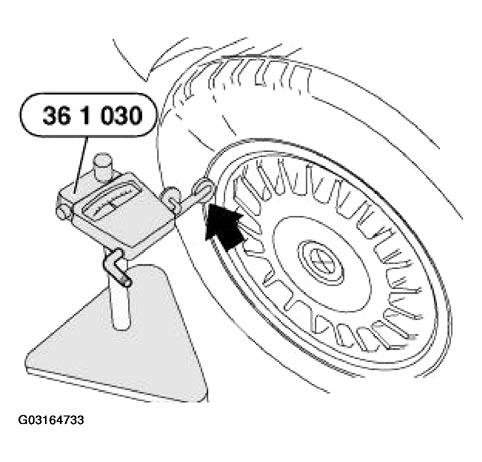

Fig 1: Checking Wheel With Special Tool (Lateral Runout)

Courtesy of BMW OF NORTH AMERICA, INC.

Lift vehicle.

Check wheel with special tool 36 1 030 (measuring fixture) for lateral runout, refer to 36 10 WHEELS ONE-PART ALLOY WHEELS , 36 10 WHEELS STEEL AND ALUMINUM STRIP WHEELS or 36 10 WHEELS TWO-PART ALLOY WHEELS .

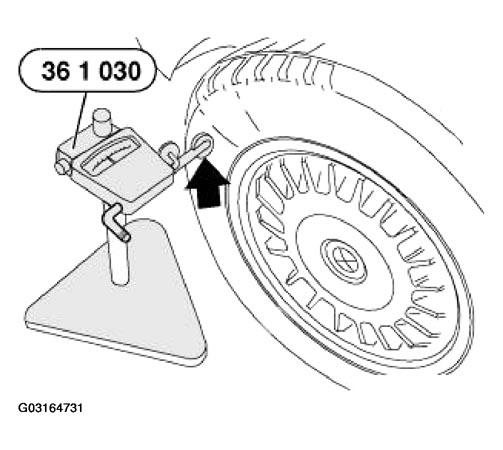

Fig 2: Checking Wheel With Special Tool (Radial Runout)

Courtesy of BMW OF NORTH AMERICA, INC.

Check wheel with special tool 36 1 030 (measuring fixture) for radial runout, refer to 36 10 WHEELS ONE-PART ALLOY WHEELS , 36 10 WHEELS STEEL AND ALUMINUM STRIP WHEELS or 36 10 WHEELS TWO-PART ALLOY WHEELS .

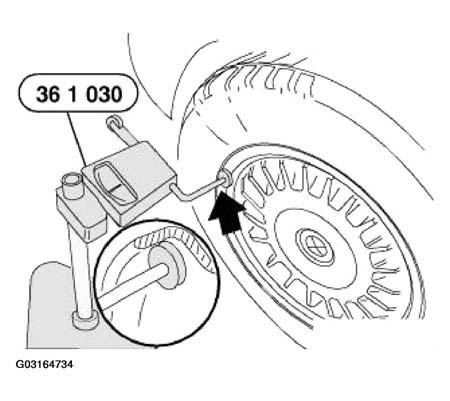

Fig 3: Checking Lateral Runout Of Rim With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

If applicable, remove balance weights.

Check lateral runout of rim with special tool 36 1 030 (measuring fixture), refer to 36 10 WHEELS ONE-PART ALLOY WHEELS , 36 10 WHEELS STEEL AND ALUMINUM STRIP WHEELS or 36 10 WHEELS TWO-PART ALLOY WHEELS .

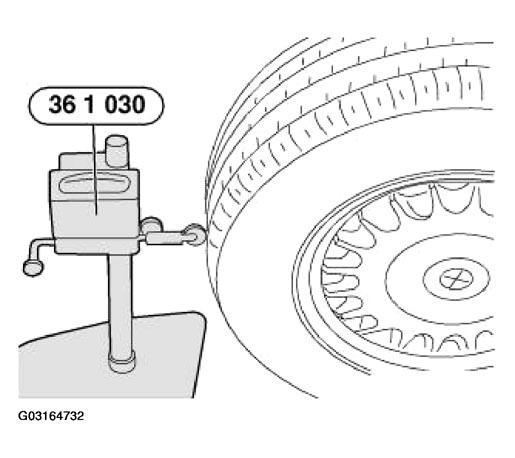

Fig 4: Checking Radial Runout Of Rim With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Check radial runout of rim with special tool (measuring fixture), refer to 36 10 WHEELS ONE-PART ALLOY WHEELS , 36 10 WHEELS STEEL AND ALUMINUM STRIP WHEELS or 36 10 WHEELS TWO-PART ALLOY WHEELS .
