36 10 713 Checking one road wheel on balancing machine for face and radial runout (wheel removed)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

NOTE: For special tools, refer to WHEEL & TIRES - SPECIAL TOOLS - 325i, 325Ci, 325xi (M54/E46) .

36 1 030
36 1 031
36 1 032
36 1 033
36 1 034
36 1 035
36 1 036

Remove wheel, refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL .

Mount wheel in balancing machine.

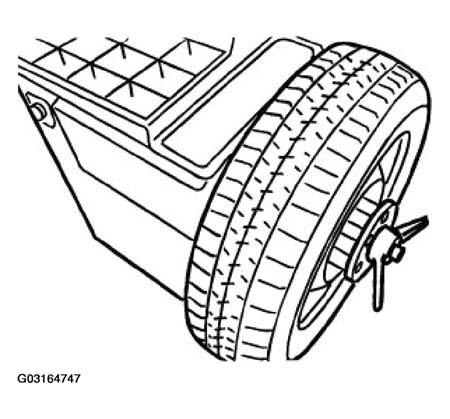

Fig 1: Mounting Wheel In Balancing Machine

Courtesy of BMW OF NORTH AMERICA, INC.

In order to avoid transformation errors, the wheel must be mounted on the balancing machine in the same manner as subsequently mounted on the car (e.g. valve facing down).

Use suitable wheel Centre supplied with corresponding balancing machine.

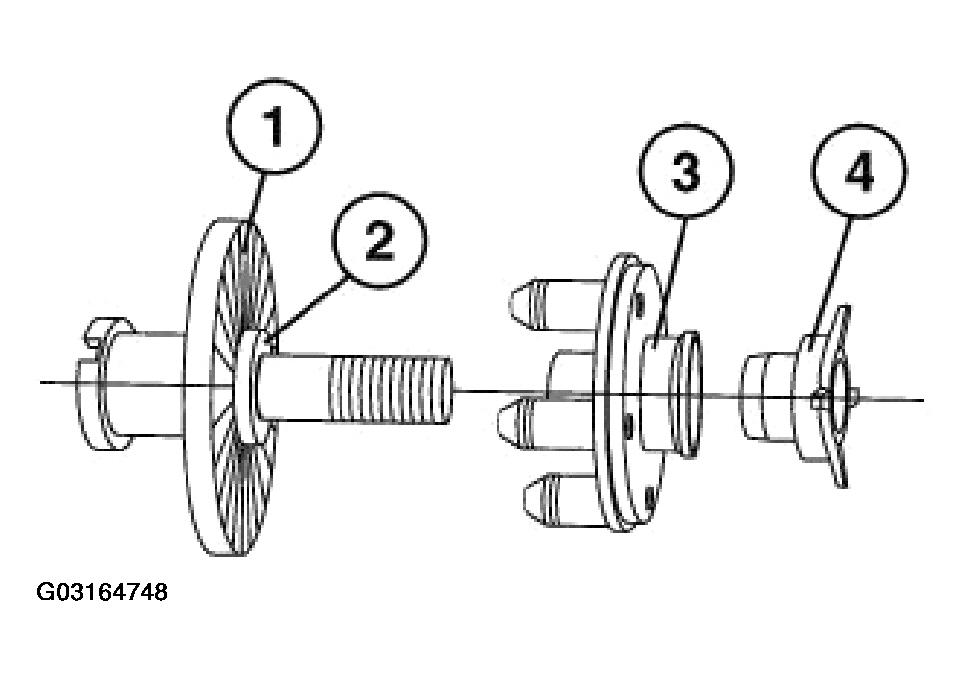

Fig 2: Installing Suitable Wheel Centre Supplied With Corresponding Balancing Machine

Courtesy of BMW OF NORTH AMERICA, INC.

Use special tool 36 1 030 for testing.

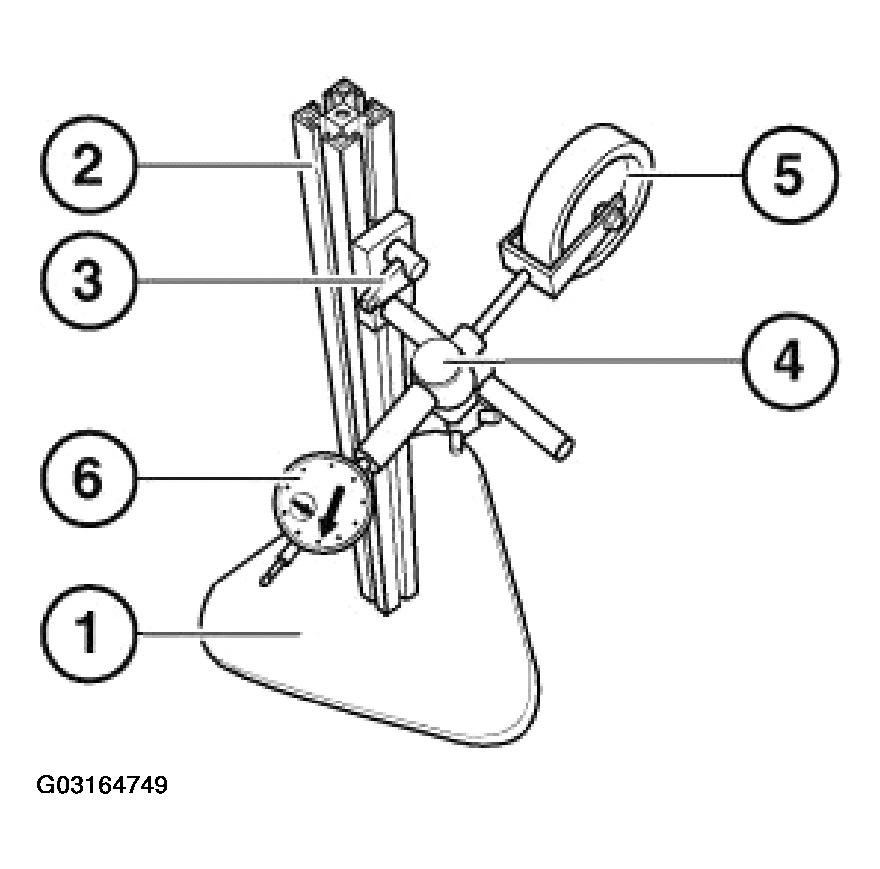

Fig 3: Identifying Special Tool 36 1 030

Courtesy of BMW OF NORTH AMERICA, INC.

Special tool 36 1 030 consists of:

36 1 031 Stand.
36 1 032 Post with clamp.
36 1 033 Holder with clamp.
36 1 034 Clamp.
36 1 035 Measuring roller.
36 1 036 Dial gauge.

Position special tool 36 1 030 on tire tread.

Turn wheel by hand and measure max. tire radial runout, refer to 36 10 WHEELS ONE-PART ALLOY WHEELS , 36 10 WHEELS STEEL AND ALUMINUM STRIP WHEELS or 36 10 WHEELS TWO-PART ALLOY WHEELS .

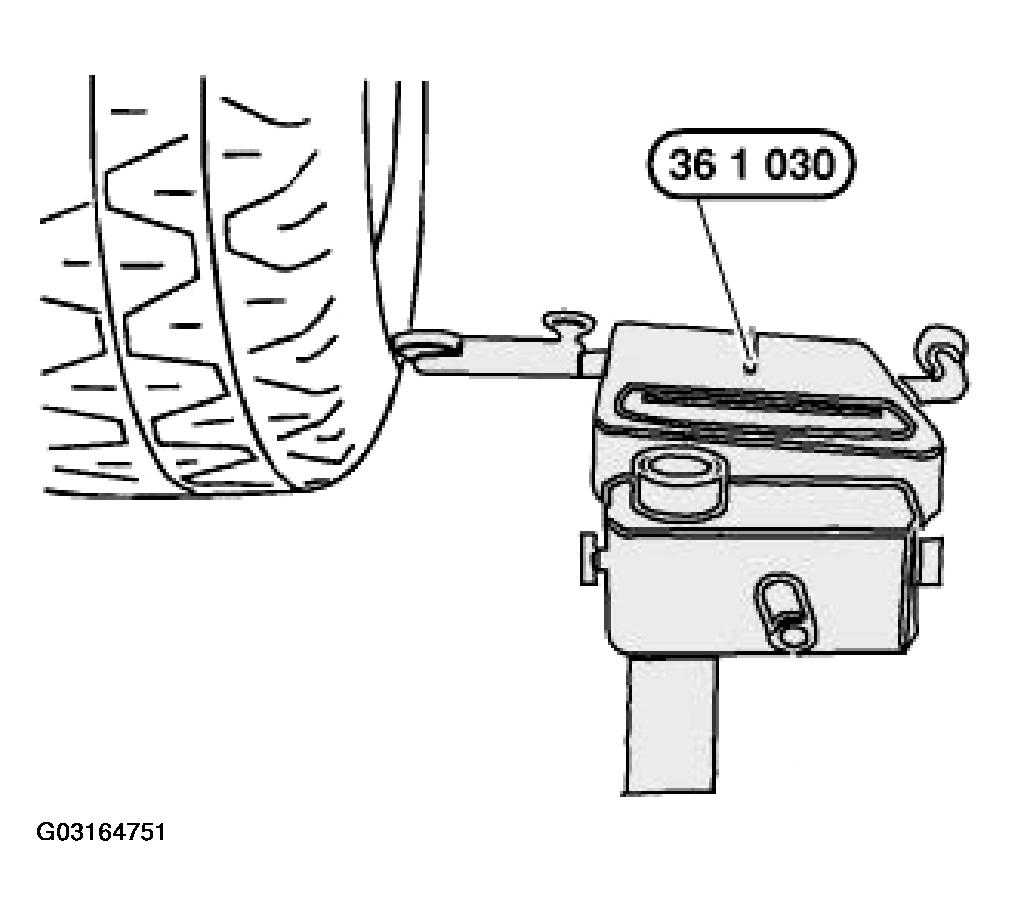

Fig 4: Measuring Max. Tire Radial Runout

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Measuring device must be vertical to tire tread.

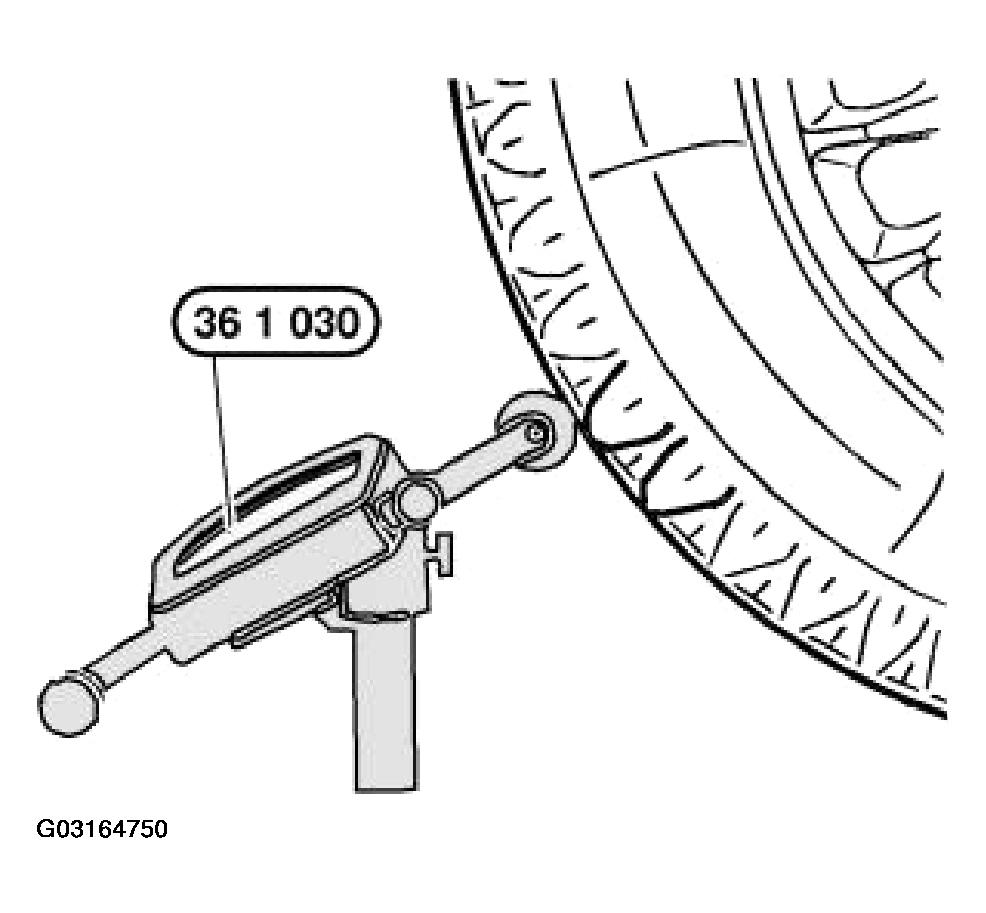

Fig 5: Measuring Max. Tire Face Runout

Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 36 1 030 on tire sidewall.

Turn wheel by hand and measure max. tire face runout, refer to 36 10 WHEELS ONE-PART ALLOY WHEELS , 36 10 WHEELS STEEL AND ALUMINUM STRIP WHEELS or 36 10 WHEELS TWO-PART ALLOY WHEELS .

NOTE: Measuring device must be vertical to tire sidewall. Never measure on printed text on tire! If necessary, check disk wheel (rim) for radial and face runout, refer to 36 10 715 CHECKING RIM FOR FACE AND RADIAL RUNOUT .
