66 54 010 Removing And Installing Complete Night Vision Camera

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection). Refer to 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary preliminary tasks:

Remove front bumper trim, refer to 51 11 156 REMOVING AND INSTALLING FRONT BUMPER TRIM
Remove front underbody protection, refer to 51 47 490 REMOVING AND INSTALLING / REPLACING FRONT UNDERBODY PROTECTION
Remove air duct for brake ventilation on left sides. See 35 11 000 REMOVING AND INSTALLING MOUNTING BLOCK FOR PEDALS
Partially remove cooling air duct. See 35 11 000 REMOVING AND INSTALLING MOUNTING BLOCK FOR PEDALS
Remove air duct (brake). See 35 11 000 REMOVING AND INSTALLING MOUNTING BLOCK FOR PEDALS

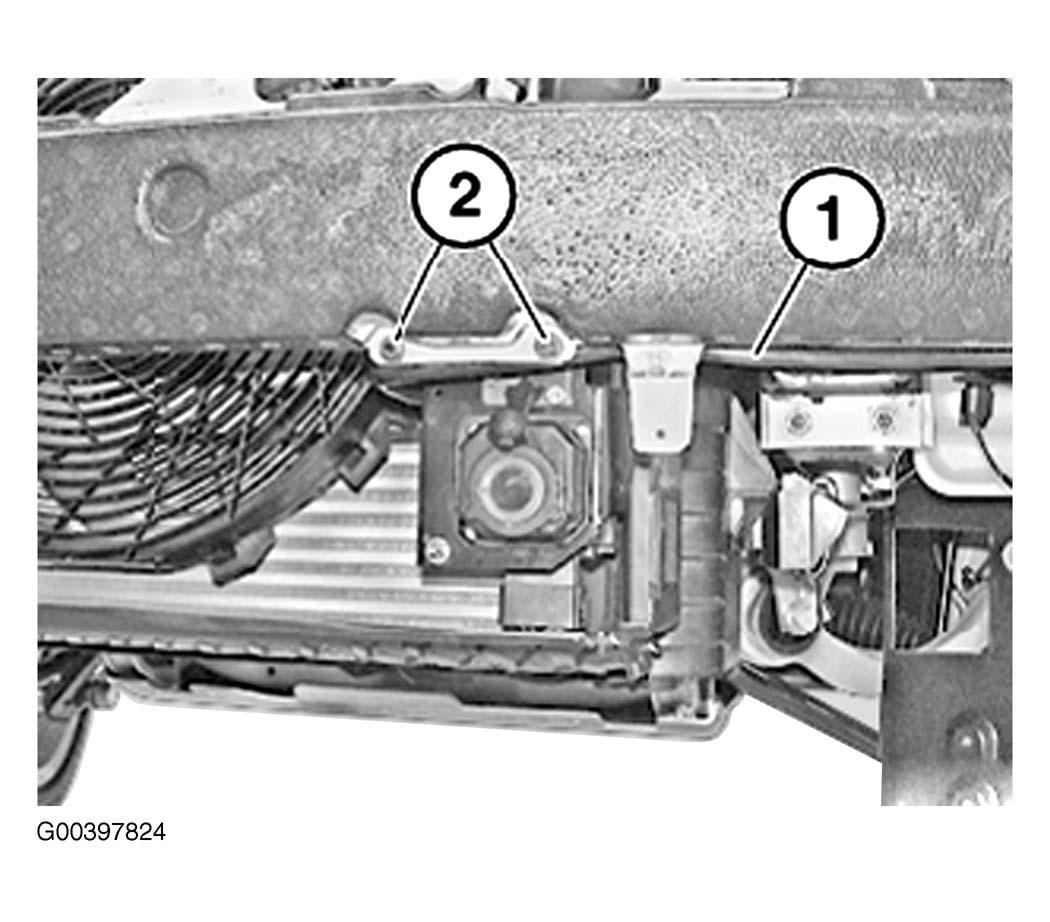

Unclip tube (1) from guide. Disconnect associated plug connection. Unfasten screws (2).

Fig 1: Unclipping Tube From Guide

Courtesy of BMW OF NORTH AMERICA, INC.

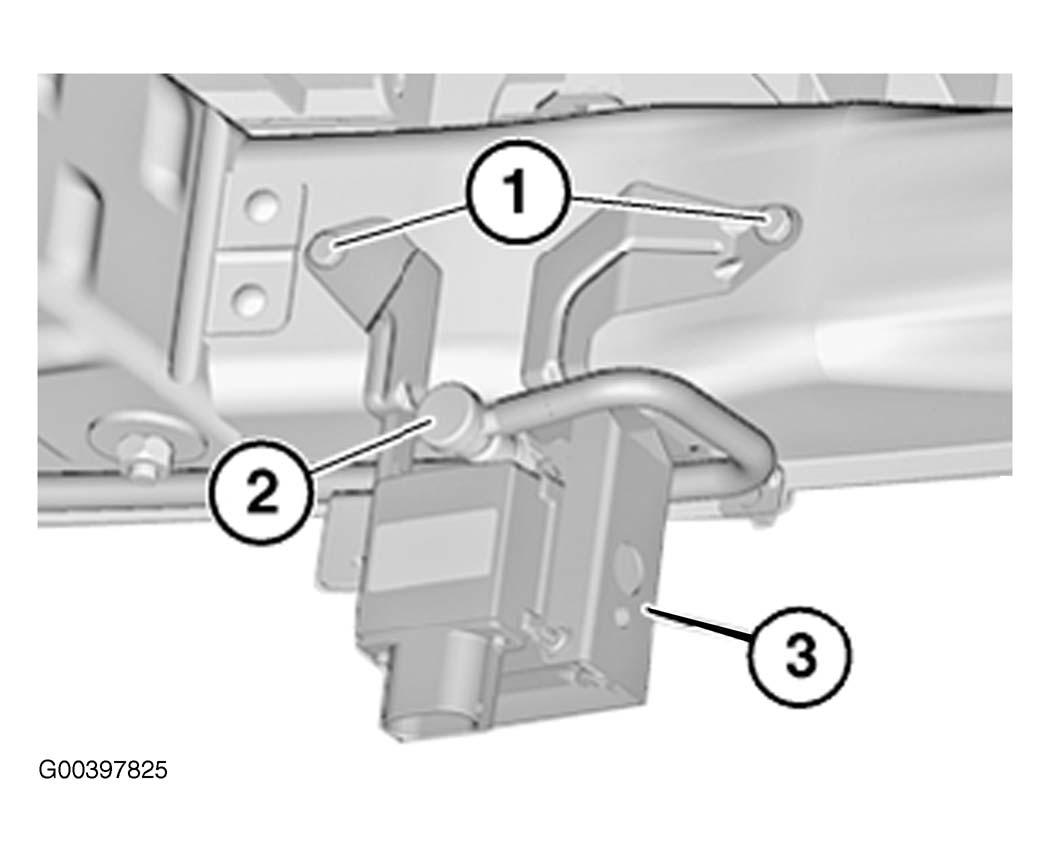

Release screws (1). Disconnect tube connection (2) and remove bracket with night vision camera (3).

Fig 2: Removing Night Vision Camera

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Fill up with washer fluid

Replacement only:

Carry out coding/programming
Adjust night vision camera, refer to 66 54 001 AXIALLY ADJUSTING NIGHT VISION CAMERA
