66 54 001 Axially Adjusting Night Vision Camera

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove grille in bumper trim on left. See 51 13... REMOVING AND INSTALLING/REPLACING TRIM ON FRONT GRILLE CENTRE SECTION

Set up headlight aiming device (1) at distance (A, approx. 1.5 m) to car.

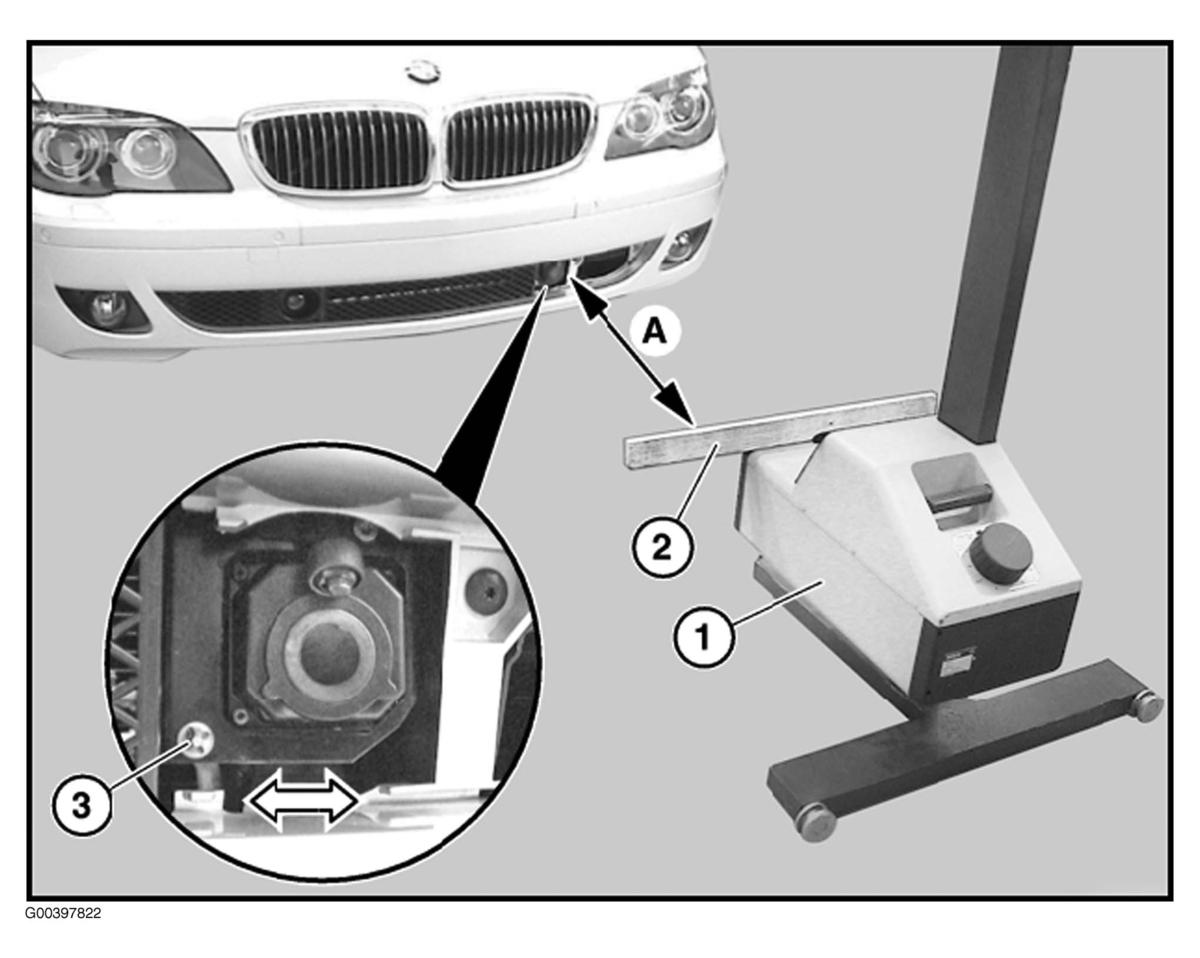

Fig 1: Setting Up Headlight Aiming Device

Courtesy of BMW OF NORTH AMERICA, INC.

Align a suitable object (2), here a wooden strip, horizontally on headlight aiming device.

Slowly carry out axial adjustment of night vision camera at adjusting screw (3).

Vertical adjustment of the camera is only possible with a BMW diagnosis system.

NOTE: Illustration shows the in-car monitor view.

If necessary, align the picture of the night vision camera with aid of a second person.

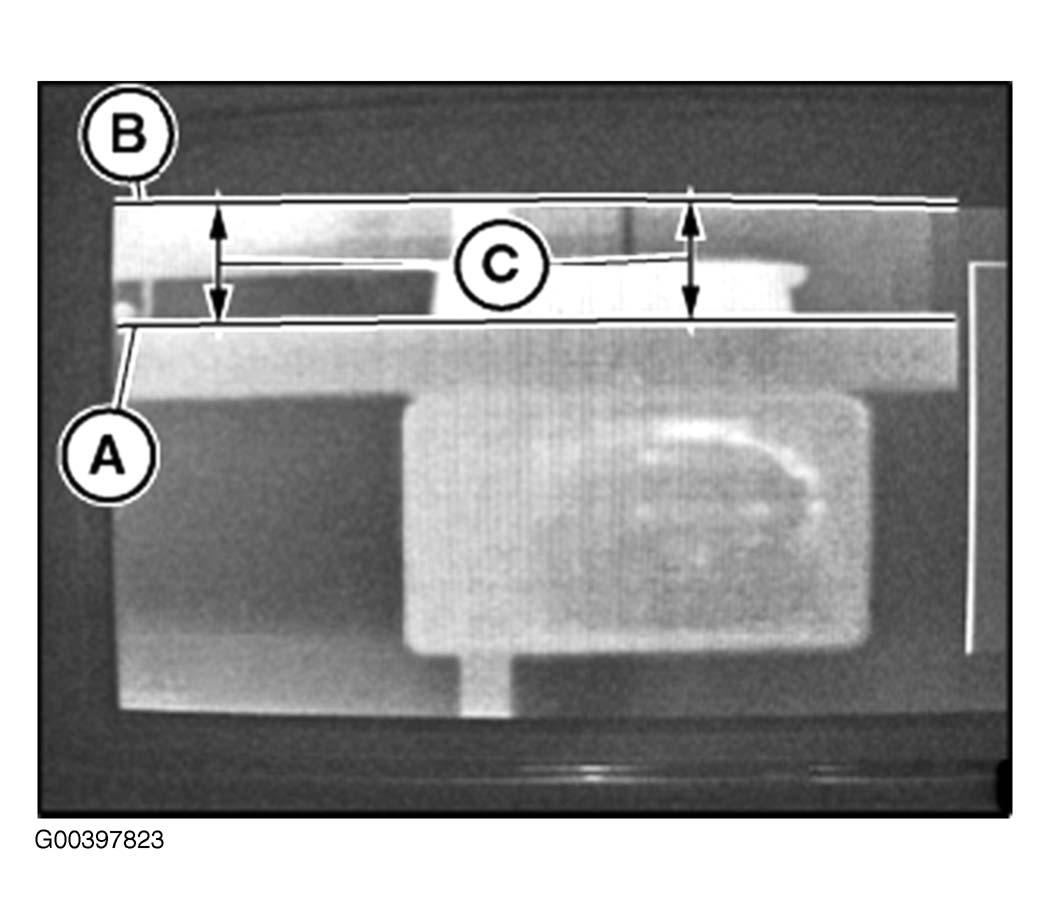

Fig 2: Aligning Picture

Courtesy of BMW OF NORTH AMERICA, INC.

Top edge (A) must be aligned parallel to top edge of screen (B).
