11 00 670 Securing engine in installation position (N14)
Special tools required:
- 00 6 030
- 00 0 490
- 00 6 100
- 00 6 130
- 00 6 080
Observe following instructions relating to special tool:
- Prior to each use, check the special tools for defects, modifications and operational reliability.
- Damaged/modified special tools must not be used!
- No changes or modifications may be made to the special tools!
- Keep special tools dry, clean and free of grease.
Modification:
Remove front facings from adapter 00 6 030.
Attach special tool 00 0 490 on left and right to 00 6 030.

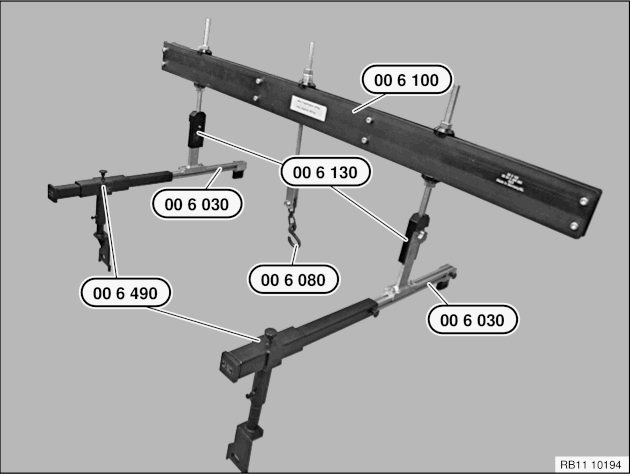

Assemble cross-member 00 6 100 with special tools 00 6 130, 00 6 030 and 00 6 080.

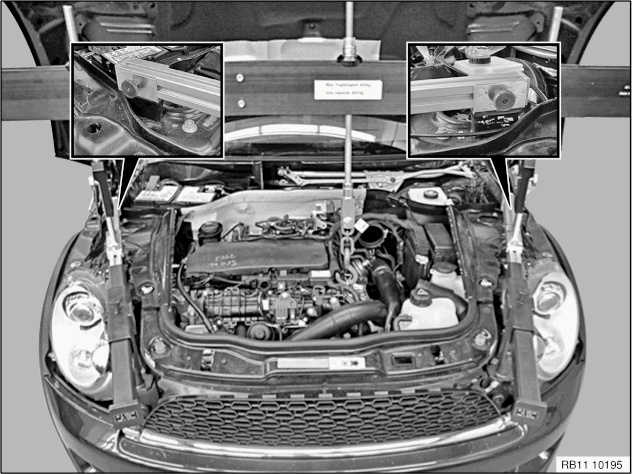

Position assembled cross-member 00 6 100 on spring strut dome with a 2nd person helping.

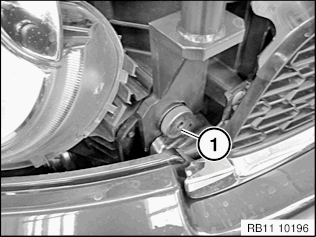

Secure special tool 00 0 490 to side member with knurled screws (1).
Align transverse member 00 6 100 so that spindle is correctly positioned over suspension lug.
Tighten down all adjusting screws, knurled screws and nuts on cross-member 00 6 100 and on special tool 00 0 490.

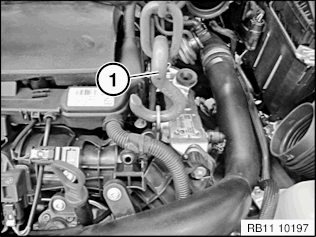

Attach hook (1) 00 6 080 to suspension lug.
Avoid a change of engine position in the transverse or longitudinal direction.
Always make sure there is sufficient clearance between the engine (or its add-on parts) and the body.
Left side only:
Remove transmission support bracket. See REMOVING AND INSTALLING/REPLACING TRANSMISSION SUPPORT BRACKET .
Right side only:
Slacken nut (1).
Installation note:
Replace self-locking nut.
Tightening torque 22 11 2AZ
Slacken screws (2) and (3).
Installation note:
Secure engine first to engine or transmission mounts and then tighten down bolts (2) and (3).
Tightening torque 22 11 6AZ
