31 60 004 Removing and installing/replacing right output shaft
Remove FRONT WHEEL .
Manual gearbox only: Drain and catch transmission oil. See 00 11 229 OIL CHANGE IN MANUAL GEARBOX .
Unfasten collar nut (1). For this purpose, press the brake pedal.
Installation note: Replace collar nut.
- Remove anti-roll bar link on anti-roll bar on right.
- Remove track rod end from swivel bearing on right. See 32 21 151 REPLACING LEFT OR RIGHT TRACK ROD END .
- Remove wheel control joint from swivel bearing on right.
Use special tools (see BMW Workshop Catalogue).
- Hydraulic unit - BMW part number 81 64 2 155 744
- Adapter kit 1 - BMW part number 81 64 2 155 745
- Adapter kit 2 - BMW part number 81 64 2 155 746
The following operations describe the way in which the output shaft is pressed out of the drive flange:
The following tools are required to press out the output shaft from the drive flange:
Necessary components:
| 1 | Hydraulic unit |
| E3 | Washer M24 |
| F3 | Spindle M24 (length 270 mm) |
| B2 | Adapter |
| K2 | Screws M14 x 1.5 |
Secure output shaft against falling out.

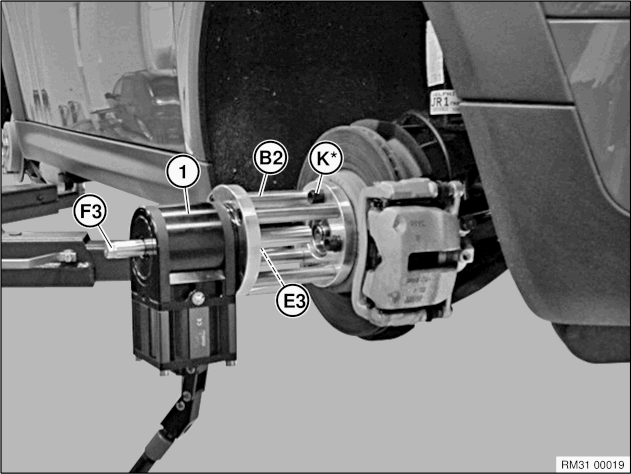

Press out output shaft with hydraulic unit.
Press swivel bearing (1) outwards.
Pull out output shaft (2).
Unfasten screws (2).
Tightening torque: 38 Nm

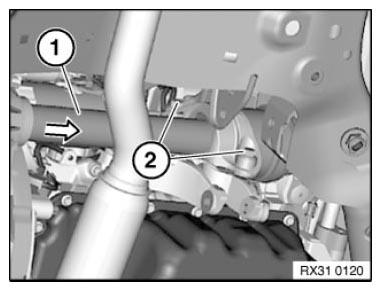

Lever output shaft (1) out of transmission and remove.
Do not mix up snap rings.
M - Manual transmission
A - Automatic transmission
Installation note:
Replace circlip.
Installation note:

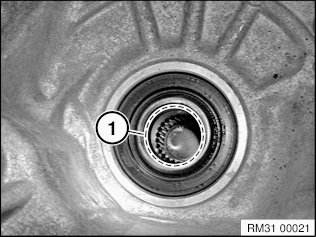

Insert assembly guard (1) into shaft seal.
Assembly guard (1) is provided with new shaft seal for output shaft.
Make sure the tool fits over the shaft seal lip so that the sealing ring is not damaged when the output shaft is inserted.
Installation note:
With automatic transmission only: Replace O-ring (1).
Installation note:
Insert output shaft (1) into gearbox.
Manual gearbox only: Before sealing surface is pushed into radial shaft seal, remove assembly guard (2) by pulling on handle.
Before sealing surface is pushed into shaft seal, remove assembly guard (2) by pulling on handle.
Slide output shaft into gearbox up to stop.
The output shaft must snap audibly into place. Check secure seating by levering.
The following work steps describe drawing in the output shaft:
The following tools are required to press out the output shaft from the drive flange.
Necessary components:
| 1 | Hydraulic unit |
| E3 | Holding sleeve M24 |
| D1 | Washer |
| F2 | Spindle M24 / M20 (length 335 mm) |
| G4 | Adapter M22 x 1.5 to M20 |

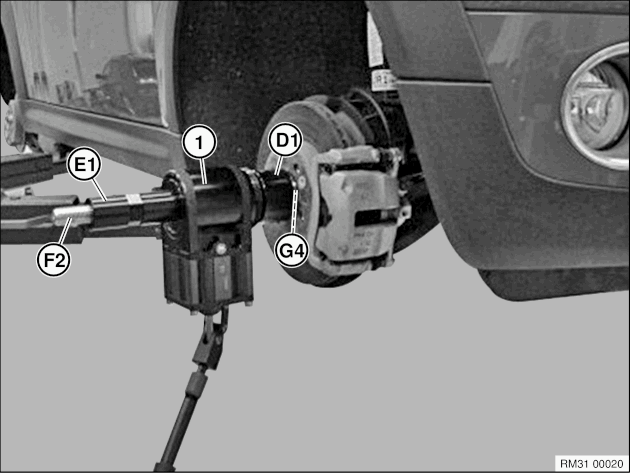

Draw in output shaft with hydraulic unit.
Tighten new collar nut (1).
- For this purpose, press the brake pedal.
Tightening torque: 182 Nm
Installation note:
Replace collar nut, oil collar nut/wheel bearing contact surface only and tighten down.
No oil permitted on thread of shaft journal or collar nut.
Secure collar nut on flattened area (2) of output shaft by positive caulking.
After installation:
- Manual gearbox only: Add TRANSMISSION OIL
.NOTE: The vehicle must be level when the transmission oil is filled.
- Check gearbox for leaks
