34 11 000 Removing And Installing/Replacing Brake Pads On Both Front Disc Brakes

WARNING: This page is about a different variant/trim than selected.

Special tools required:

IMPORTANT:

The brake pad wear sensor must be replaced once it has been removed (brake pad wear sensor loses its retention capability in the brake pad).

Necessary preliminary tasks:

Pull brake pad wear sensor (1) towards front out of pad (left side only).

If necessary, replace brake pad wear sensor.

Release guide screw (2).

If necessary, grip at hexagon head (3).

Tilt brake caliper upwards.

Installation:

Replace guide screws.

Tightening torque 34 11 3AZ .

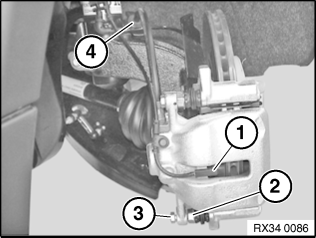

Fig 1: Identifying Brake Pad Sensor, Guide Screw, Hexagon Head, And Brake Hose Holder
G00455353Courtesy of BMW OF NORTH AMERICA, INC.

Remove brake pads (1) in direction of arrow from brake console.

IMPORTANT:

Mark any worn brake pads.

In the event of one-sided brake pad wear, do not change brake pads round.

Observe MINIMUM THICKNESS OF BRAKE PADS .

Clean brake pads.

Do not apply grease to brake pad backplate.

Fig 2: Identifying Brake Pads
G04796983Courtesy of BMW OF NORTH AMERICA, INC.

Check minimum brake disc thickness:

New brake pads may only be installed if the brake disc thickness is greater than or equal to the MINIMUM BRAKE DISC THICKNESS (MIN TH) .

Fig 3: Identifying Special Tool (34 1 280)
G04726574Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:

The minimum thickness of the brake disc is designed so that it holds over the service life of a further set of brake pads if it is greater than or equal to the MINIMUM BRAKE DISC THICKNESS (MIN TH) .

Press brake piston fully back with special tool 34 1 050 .

IMPORTANT:

When pressing piston back, note brake fluid level in expansion tank.

Overflowing brake fluid will damage the paintwork.

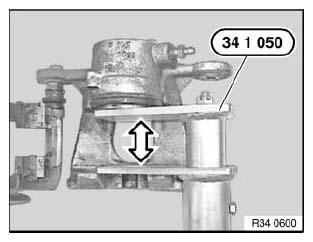

Fig 4: Identifying Special Tool (34 1 050)
G04726618Courtesy of BMW OF NORTH AMERICA, INC.

Check dust sleeve (1) for damage and replace if necessary.

Clean contact face (2) of brake piston and apply a thin coating of anti-squeak compound.

IMPORTANT:

Dust sleeve must not come into contact with anti-squeak compound as this may cause the dust sleeve to swell.

Fig 5: Identifying Dust Sleeve And Contact Face Of Brake Piston
G04796986Courtesy of BMW OF NORTH AMERICA, INC.

Clean contact face (1) of brake caliper and apply a thin coating of anti-squeak compound.

Fig 6: Identifying Contact Face Of Brake Caliper
G04796987Courtesy of BMW OF NORTH AMERICA, INC.

Clean hammerhead guides and apply a thin coating of anti-squeak compound.

IMPORTANT:

Brake pad with indentation (1) is intended for accommodating the brake pad wear sensor and must be fitted on the piston side.

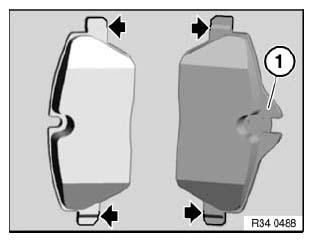

Fig 7: Identifying Brake Pad With Indentation
G04726578Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:

    After completing work:

  • If necessary, when replacing linings, reset CBS display in accordance with factory specification.
  • Fully depress brake pedal several times so that brake pads contact brake discs.
  • When installing new brake pads at front and rear axles, brake fluid level must be brought up to "MAX" marking.
  • Read and comply with notes on BREAKING IN NEW BRAKE DISCS / BRAKE PADS .

Replacement:

Remove lining retaining springs (1).

Installation:

Clean contact face of brake carrier and apply a thin coating of anti-squeak compound.

Fig 8: Identifying Pad Retaining Springs
G04796989Courtesy of BMW OF NORTH AMERICA, INC.
