18 12 030 Removing and installing/replacing rear muffler (W10)

WARNING: This page is about a different variant/trim than selected.

WARNING: Danger of burning and other injuries! These tasks should only be carried out on an exhaust system that has cooled down! Remove the exhaust system with the assistance of a second person.

Release screws (1) of middle pipe on manifold flange.

Installation:

Replace seal.

Tightening torque, refer to 18 00 2AZ in EXHAUST SYSTEM - TIGHTENING TORQUES - COOPER (1.6L) R50/W10 .

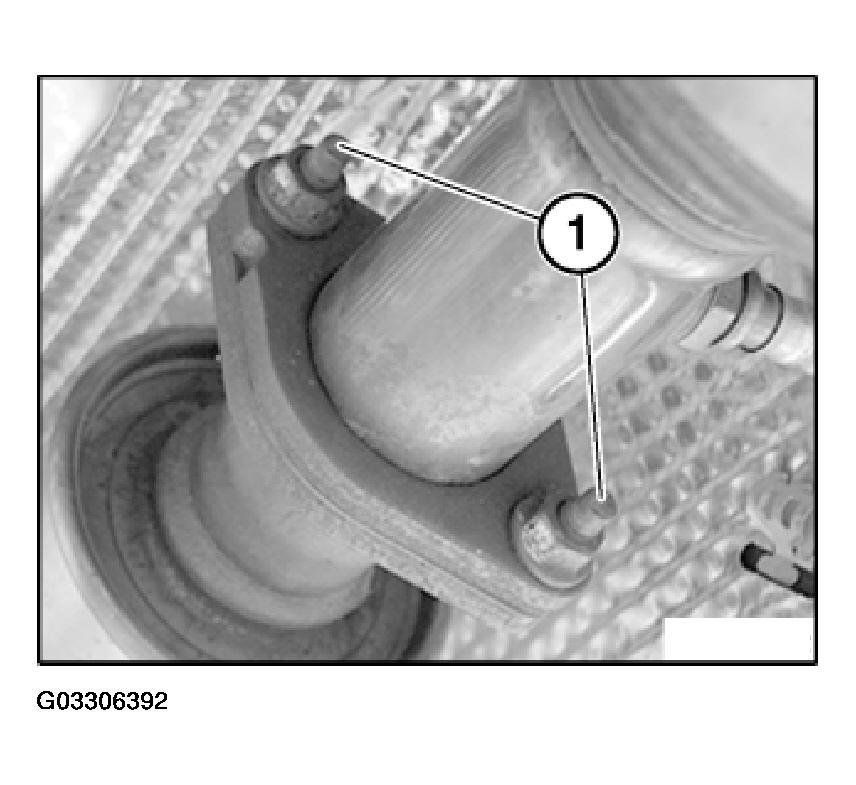

Fig 1: Locating Screws Of Middle Pipe On Manifold Flange

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove bracket from rear muffler.

Tightening torque, refer to 18 00 1AZ in EXHAUST SYSTEM - TIGHTENING TORQUES - COOPER (1.6L) R50/W10 .

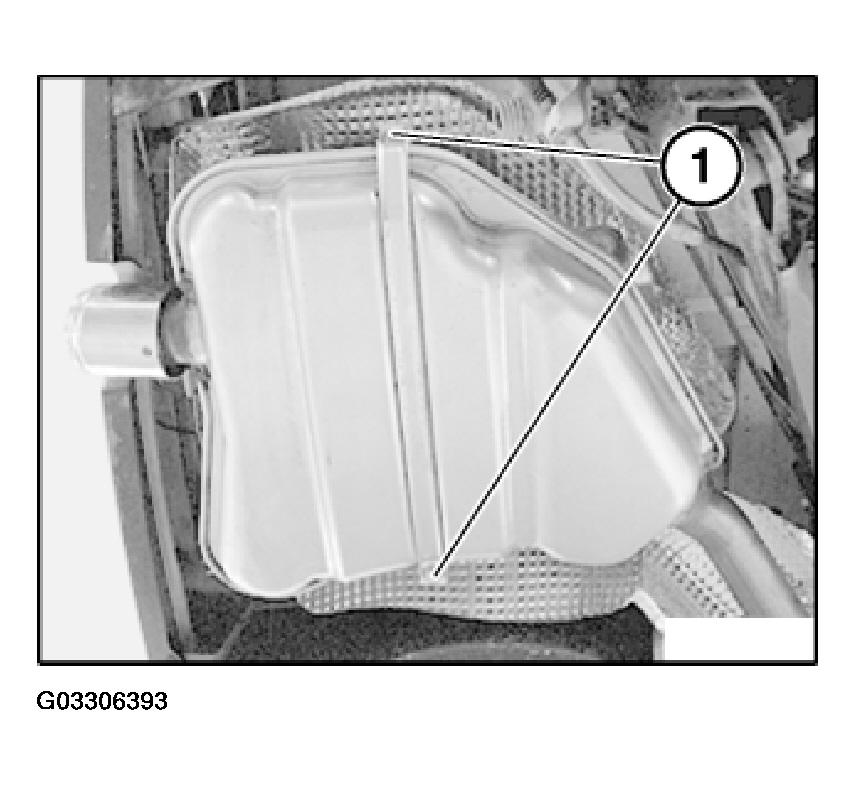

Fig 2: Identifying Rear Muffler Bracket Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on reinforcement plate.

Lower exhaust system carefully.

Remove the exhaust system with the assistance of a second person.

Tightening torque, refer to 18 00 3AZ in EXHAUST SYSTEM - TIGHTENING TORQUES - COOPER (1.6L) R50/W10 .

Replacement only:

Replace all exhaust suspension elements. Refer to 18 21 051 REPLACING ALL EXHAUST SUSPENSION ELEMENTS .

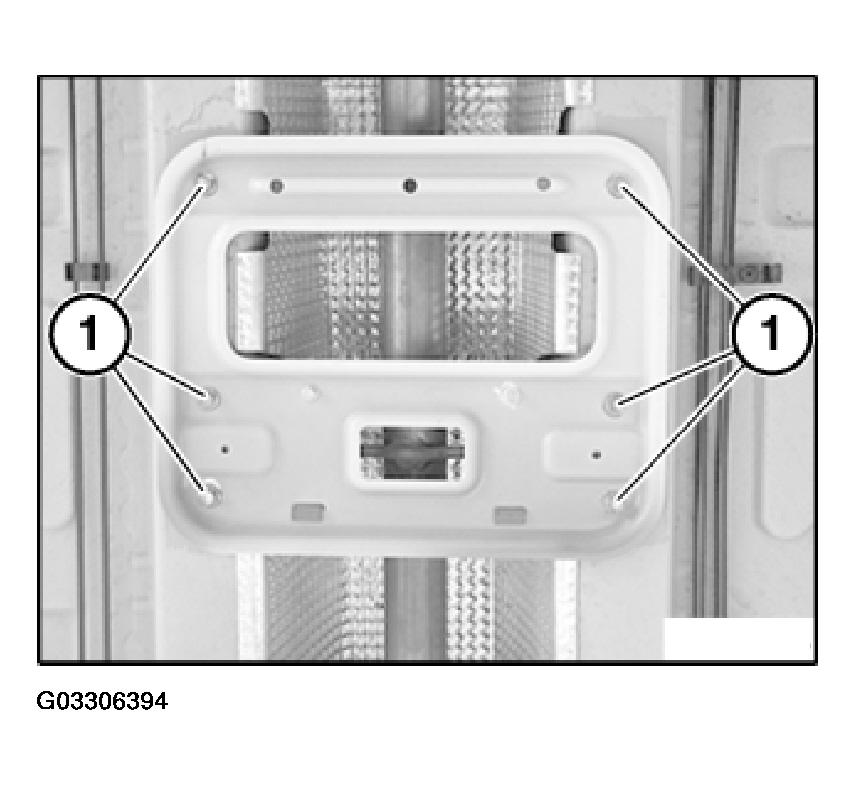

Fig 3: View Of Screws On Reinforcement Plate

Courtesy of BMW OF NORTH AMERICA, INC.
