18 21 051 Replacing all exhaust suspension elements

WARNING: This page is about a different variant/trim than selected.

WARNING: Danger of burning and other injuries! These tasks should only be carried out on an exhaust system that has cooled down!

Necessary Preliminary Tasks:

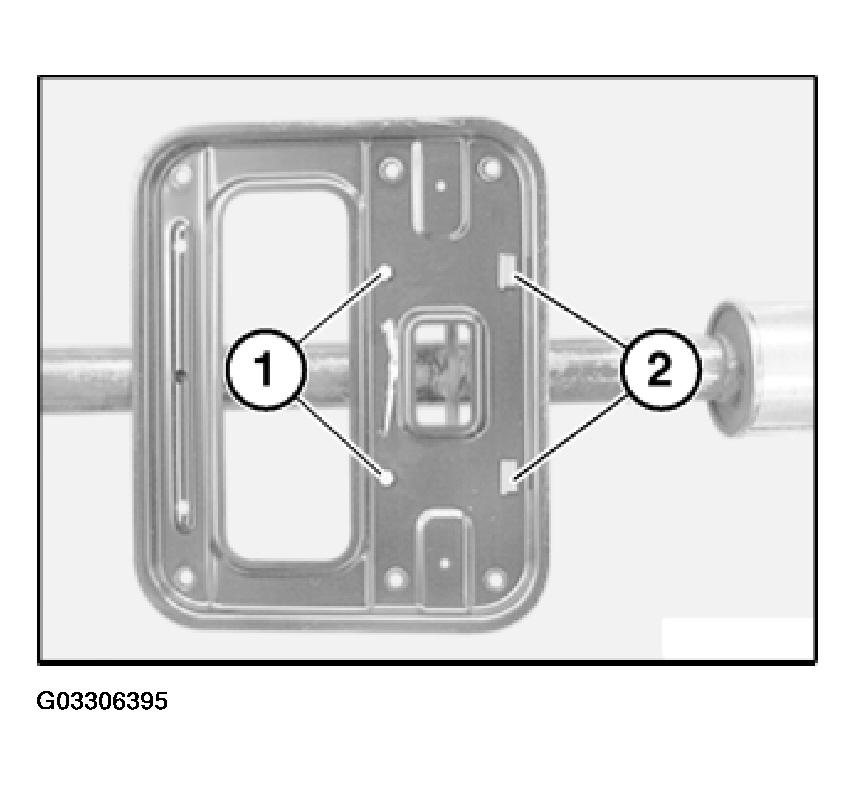

Release screws (1) and remove reinforcement plate. Remove rubber mount (2) from exhaust pipe and replace.

Fig 1: Identifying Reinforcement Plate And Rubber Mount

Courtesy of BMW OF NORTH AMERICA, INC.

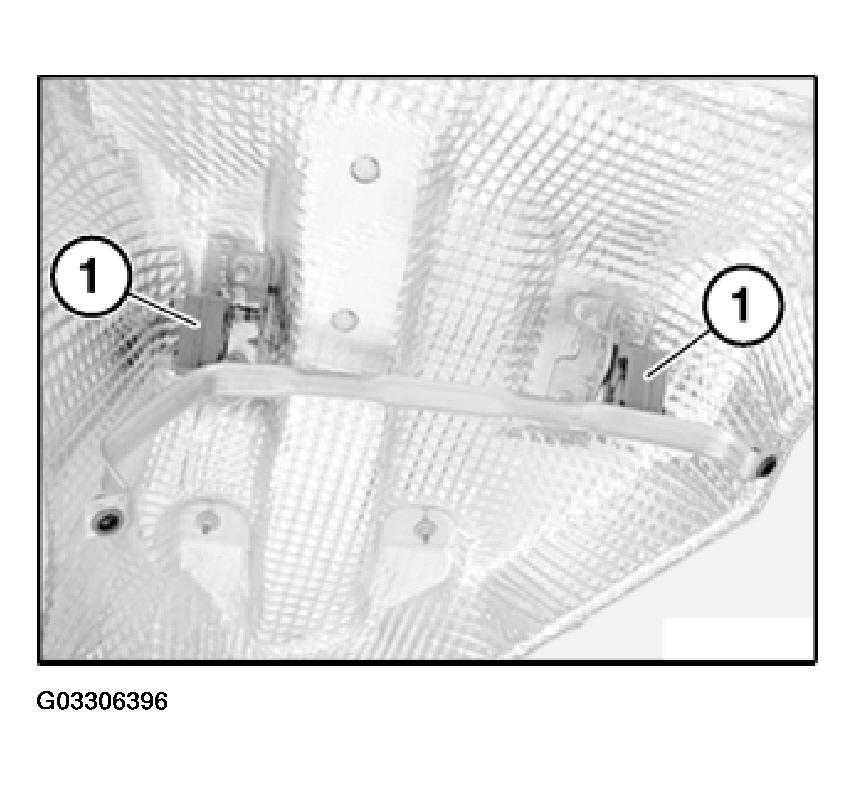

Remove rubber mount (1) of rear exhaust suspension element and mountings and replace.

Fig 2: View Of Rubber Mount Of Rear Exhaust Suspension Element

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Always replace rubber mount if rear muffler mounting or rear exhaust suspension element is replaced.
