64 22 161 Removing and installing/replacing middle fresh air grille

Necessary Preliminary Tasks:

• Remove decorative trim for instrument panel (middle). Refer to 51 45 060 REMOVING AND INSTALLING/REPLACING DECORATIVE TRIM FOR INSTRUMENT PANEL (MIDDLE) .

Turn trim ring of air vent (1) and detach towards front.

Installation:

Rims must snap into place correctly.

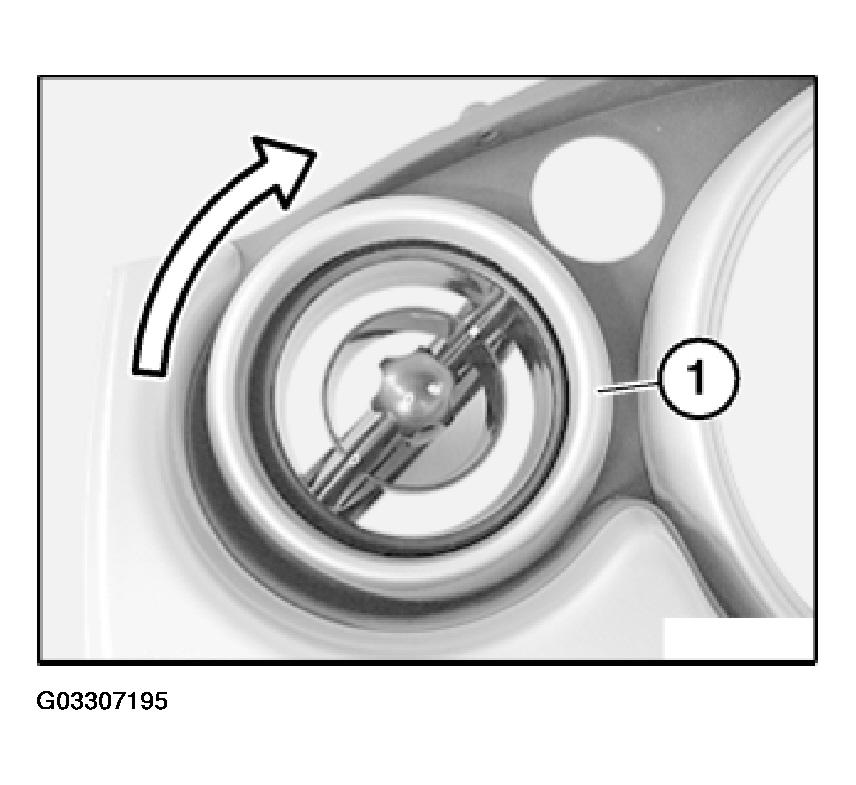

Fig 1: Identifying Trim Ring Of Air Vent

Courtesy of BMW OF NORTH AMERICA, INC.

Release clips (1) and remove air vent.

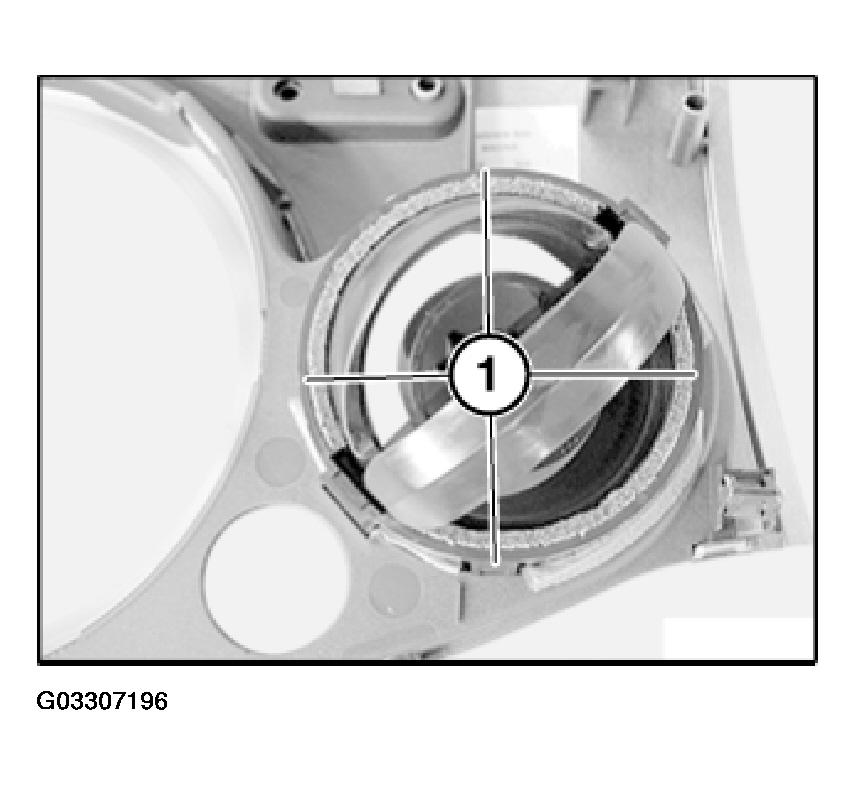

Fig 2: Removing Air Vent Clips

Courtesy of BMW OF NORTH AMERICA, INC.
