51 45 060 Removing and installing/replacing decorative trim for instrument panel (middle)

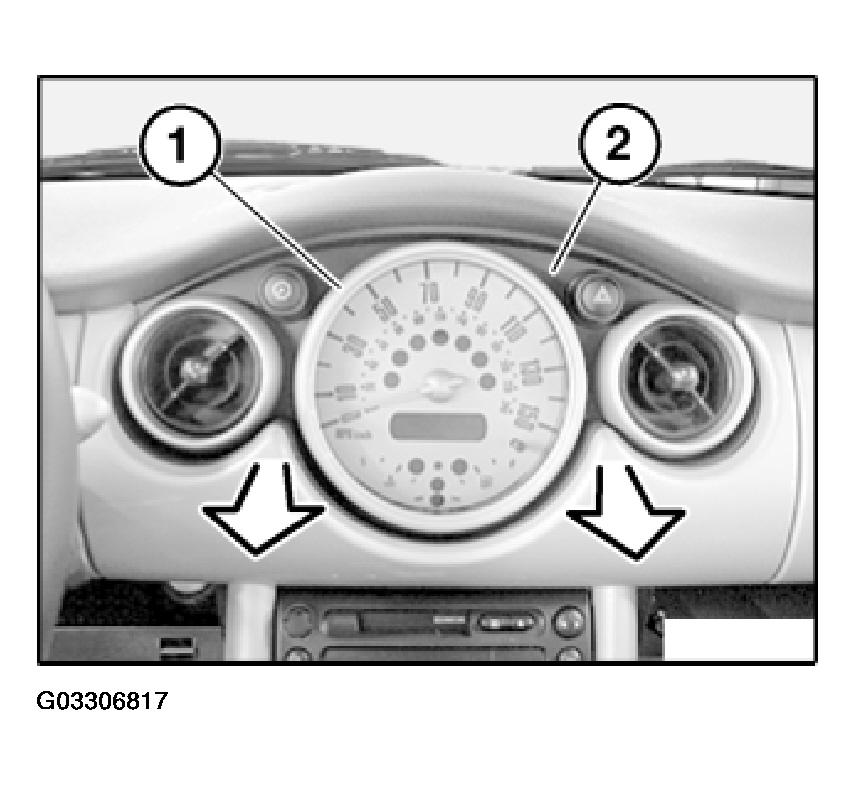

Unclip trim ring (1) in direction of arrow from decorative trim (2).

Installation:

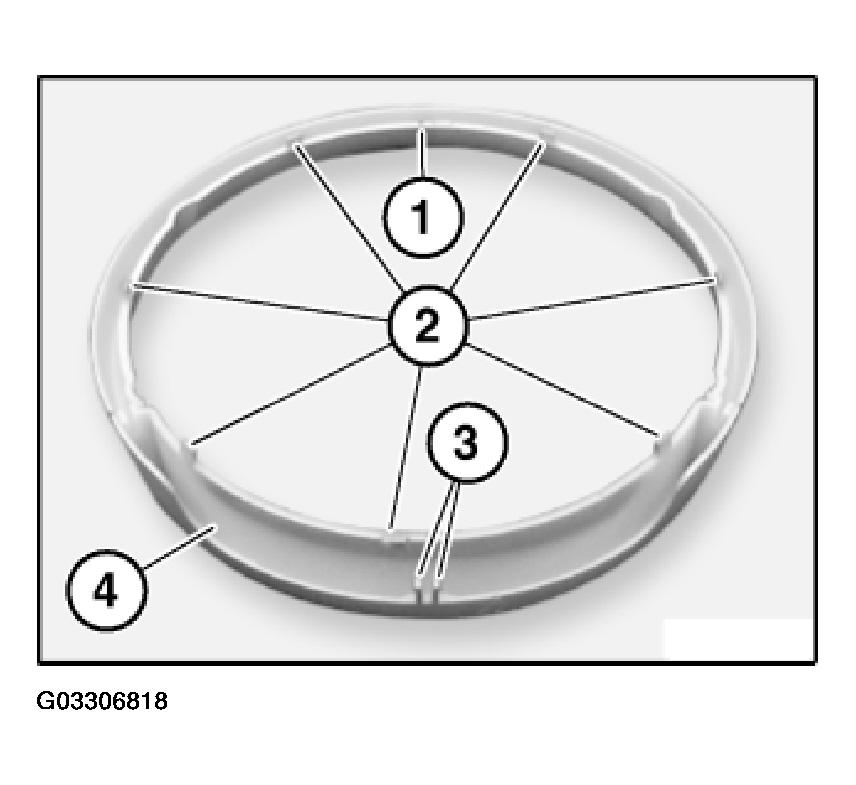

Following parts on trim ring (4) must not be damaged or missing:

1. Guide.
2. Catches.
3. Catch.
   Fig 2: Identifying Parts On Trim Ring

   Courtesy of BMW OF NORTH AMERICA, INC.

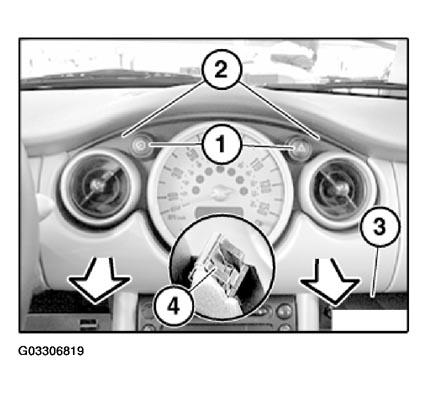

Unclip trim on switches (1).

Unfasten screws (2 and 3).

Remove decorative trim in direction of arrow.

Installation:

If necessary, replace faulty clips (4) on back of decorative trim.

Fit plastic cap on end of screw (3) (risk of damage to passenger airbag).

Installation:

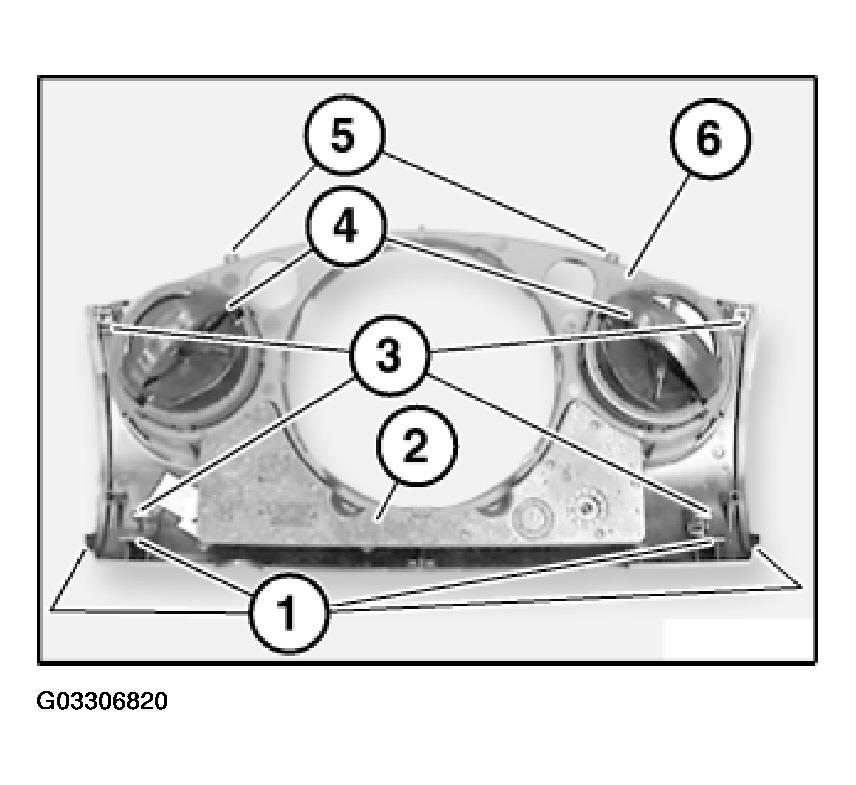

Following parts of decorative trim (6) must not be damaged or missing:

1. Guides.
2. Foam block.
3. Clips.
4. Fresh air grill.
5. Screw tabs.

Replacement:

Remove both center fresh air grilles. Refer to 64 22 161 REMOVING AND INSTALLING/REPLACING MIDDLE FRESH AIR GRILL .
