51 16 200 Removing and installing front center console

NOTE: Front center console and cover trims for front center console on instrument panel must be simultaneously removed and installed. Remove shift lever knob. Refer to SHIFT LEVER KNOB . Remove dust guard. Refer to 51 16 210 REMOVING AND INSTALLING / REPLACING FINISHER FOR PRESELECTOR LEVER .

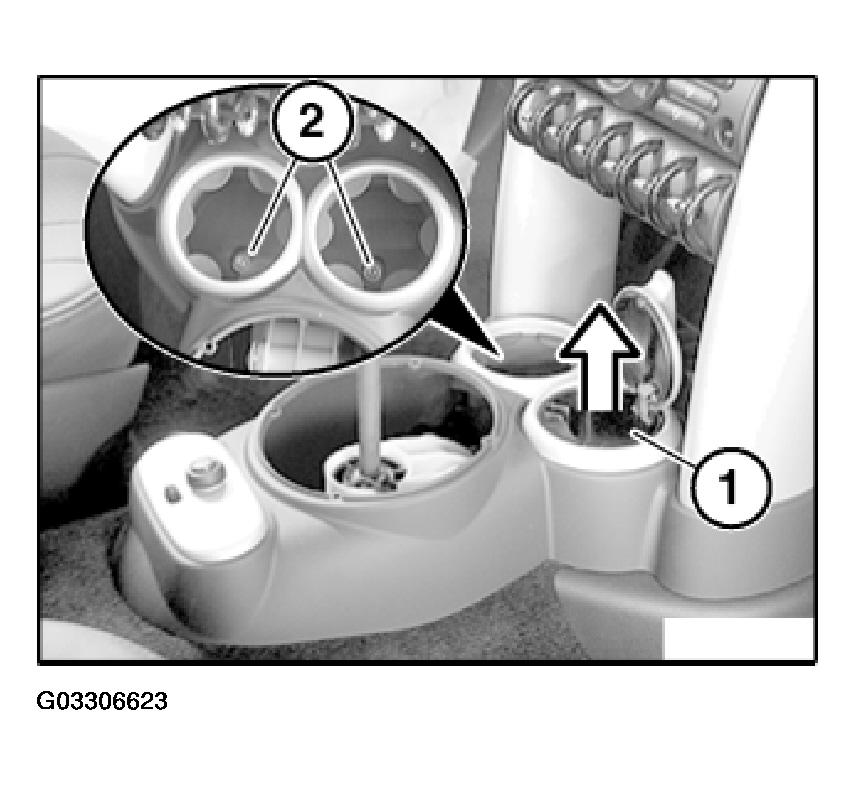

To remove the ashtray (1) (depending on equipment specification), open the ashtray lid and lift out the ashtray housing.

Remove screws (2) in drinks holders.

Fig 1: Locating Screws In Drink Holders

Courtesy of BMW OF NORTH AMERICA, INC.

Snap switch cluster out of center console.

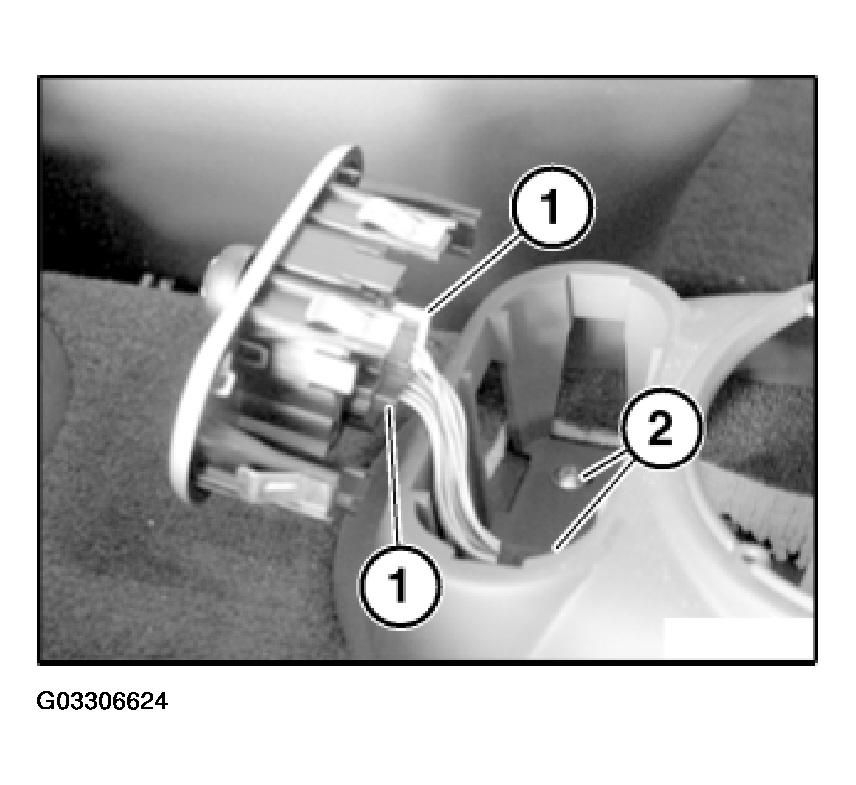

Detach plug connector (1) from switch cluster.

Release screws (2) at back end of console.

Fig 2: Detaching Plug Connector From Switch Cluster

Courtesy of BMW OF NORTH AMERICA, INC.

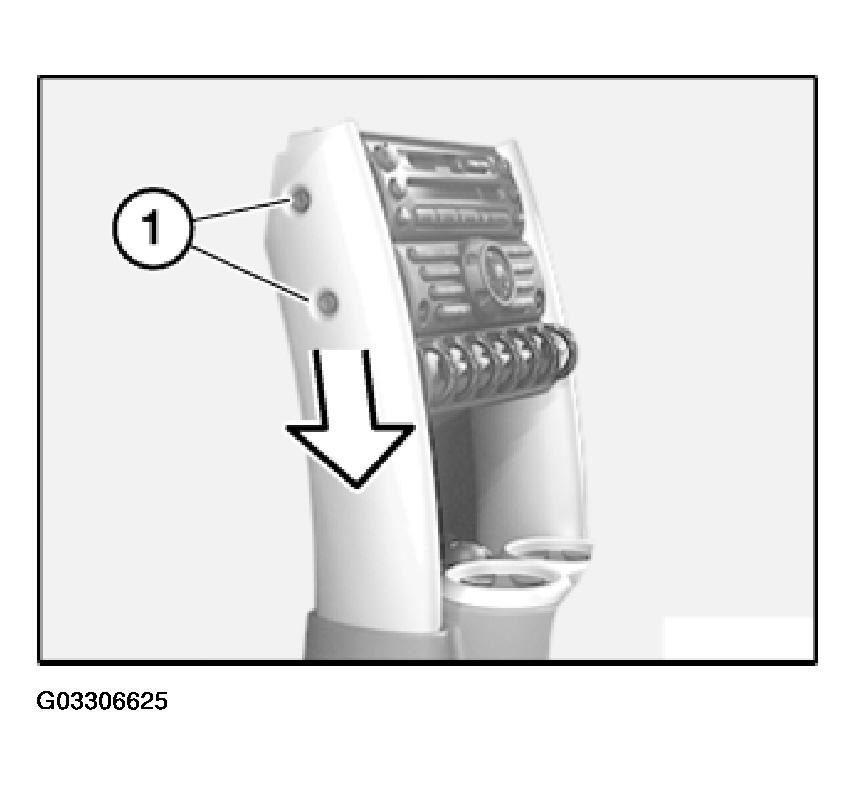

Release screws (1) securing both cover trims of the center console to the instrument panel.

Fig 3: Locating Cover Trim Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Detach front center console to facilitate removal of console and cover trim for instrument panel.

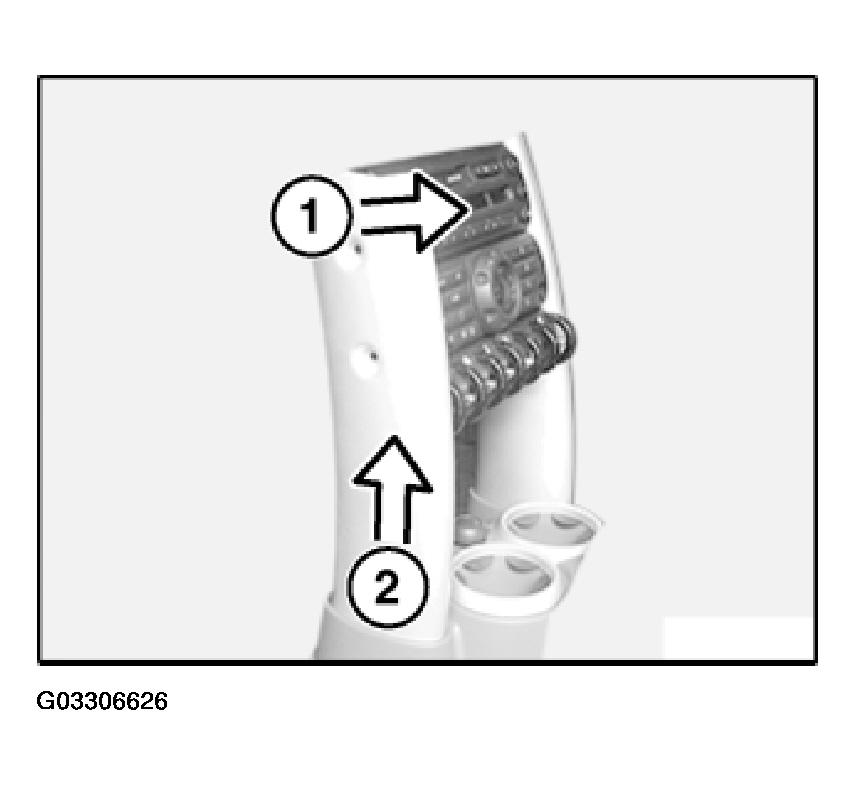

Detach cover trims in direction (1) from instrument panel.

Detach cover trims in direction (2) from center console.

Fig 4: Removing Cover Trims

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connector for socket/cigarette lighter.

Remove console.

Installation:

Make sure foam blocks are correctly seated between center console and cover trims.

IMPORTANT: Make sure that cables are not trapped when installing the center console.
