51 16 210 Removing and installing / replacing finisher for preselector lever

Remove selector handle. Refer to SHIFT LEVER HANDLE .

Pull dust cover surround (1) upwards to release six securing clips.

NOTE: Dust cover surround has locating pins that ensure correct fitment into the center console.

Disconnect PRND display connector (2).

Fig 1: Disconnecting PRND Display Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

Release clips (1) and remove dust cover assembly (2) from dust cover surround.

Release clips (3) and remove PRND display assembly (4) from dust cover.

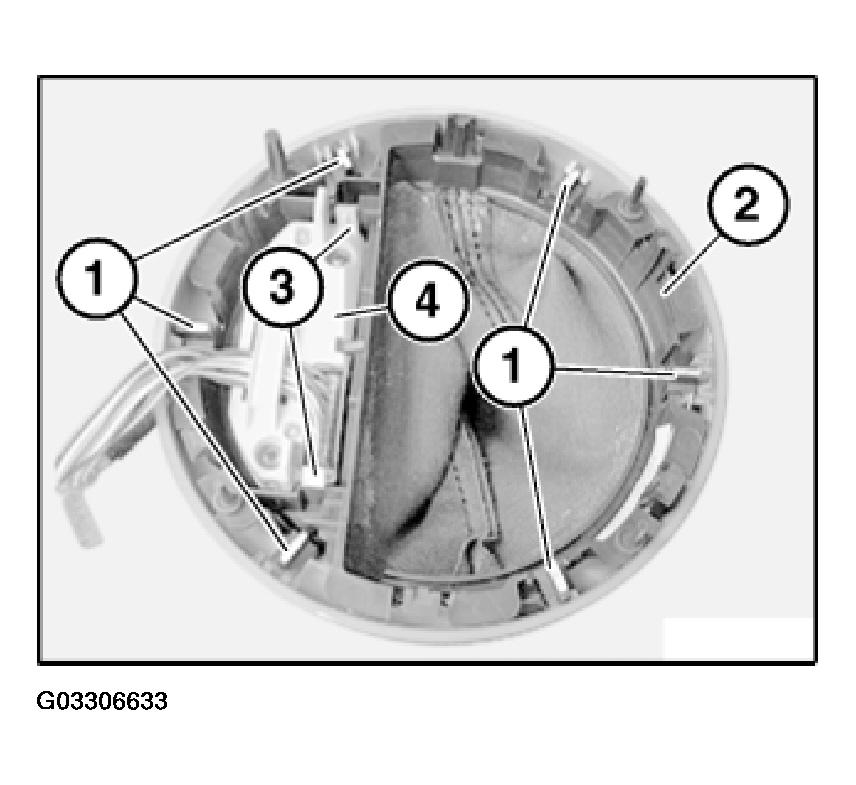

Fig 2: Removing PRND Display Assembly From Dust Cover

Courtesy of BMW OF NORTH AMERICA, INC.
