12 41 020 Removing and installing/replacing starter motor

Necessary preliminary tasks:

• Switch off ignition
• Disconnect battery, refer to 12 00 Disconnecting and connecting battery
• Remove exhaust manifold, refer to 11 62 000 REMOVING AND INSTALLING, SEALING/REPLACING EXHAUST MANIFOLD

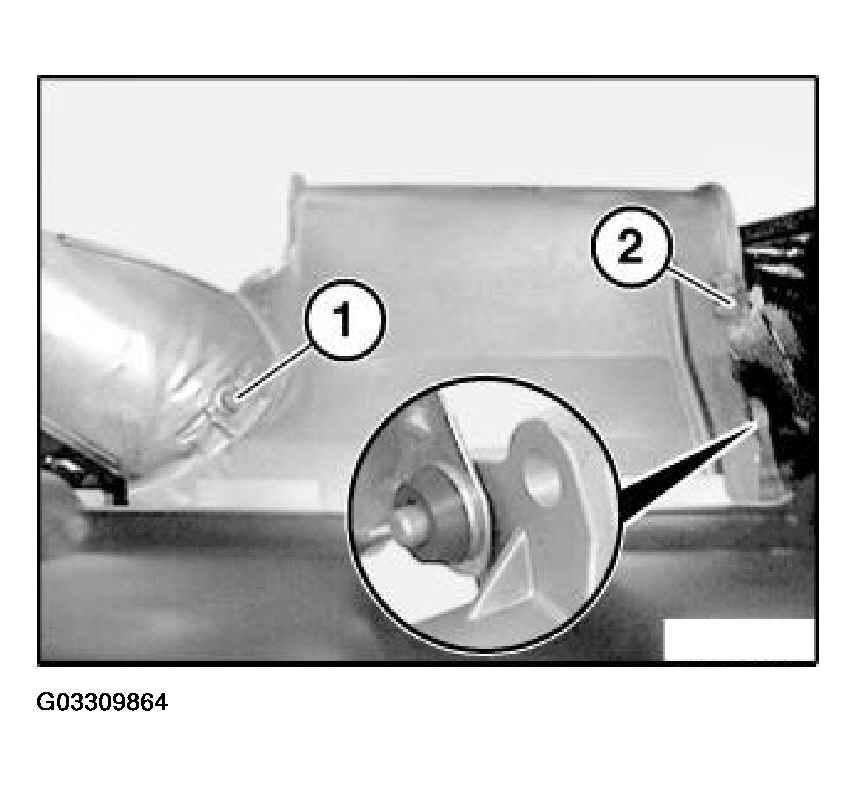

Unscrew bolt (1).

Release retaining clip (2).

Remove heat shield.

Tightening torque 12 41 1AZ. Refer to ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .

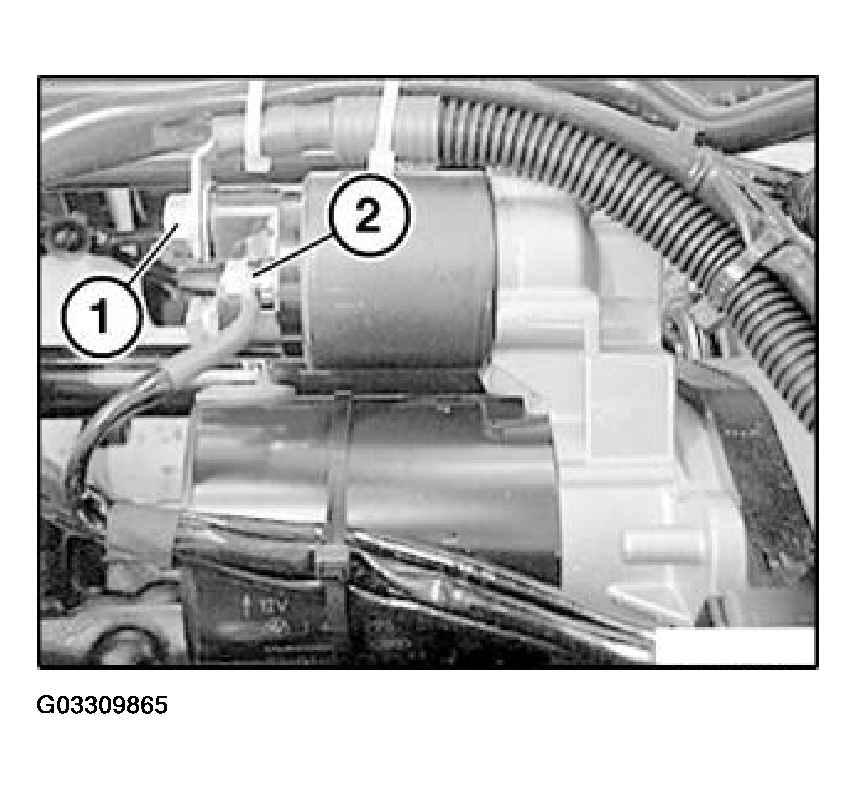

Disconnect battery positive lead (1).

Tightening torque 12 41 2AZ. Refer to ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .

Unscrew nut (2).

Tightening torque 12 41 3AZ. Refer to ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .
