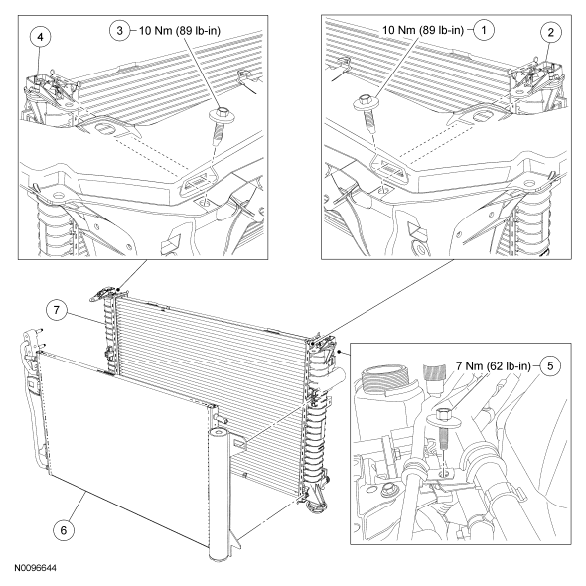

Radiator (View 2 Of 2)
WARNING: This page is about a different variant/trim than selected.
ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | W500214 | LH upper radiator support bracket bolt |
| 2 | 8A194 | LH upper radiator support bracket |
| 3 | W500214 | RH upper radiator support bracket bolt |
| 4 | 8A194 | RH upper radiator support bracket |
| 5 | W505422 | A/C tubes retainer bolt |
| 6 | 19710 | A/C condenser |
| 7 | 8005 | Radiator |
