Removal & Installation: Speedometer/Odometer: Removal

  1. Remove the instrument cluster. See INSTRUMENT CLUSTER  .

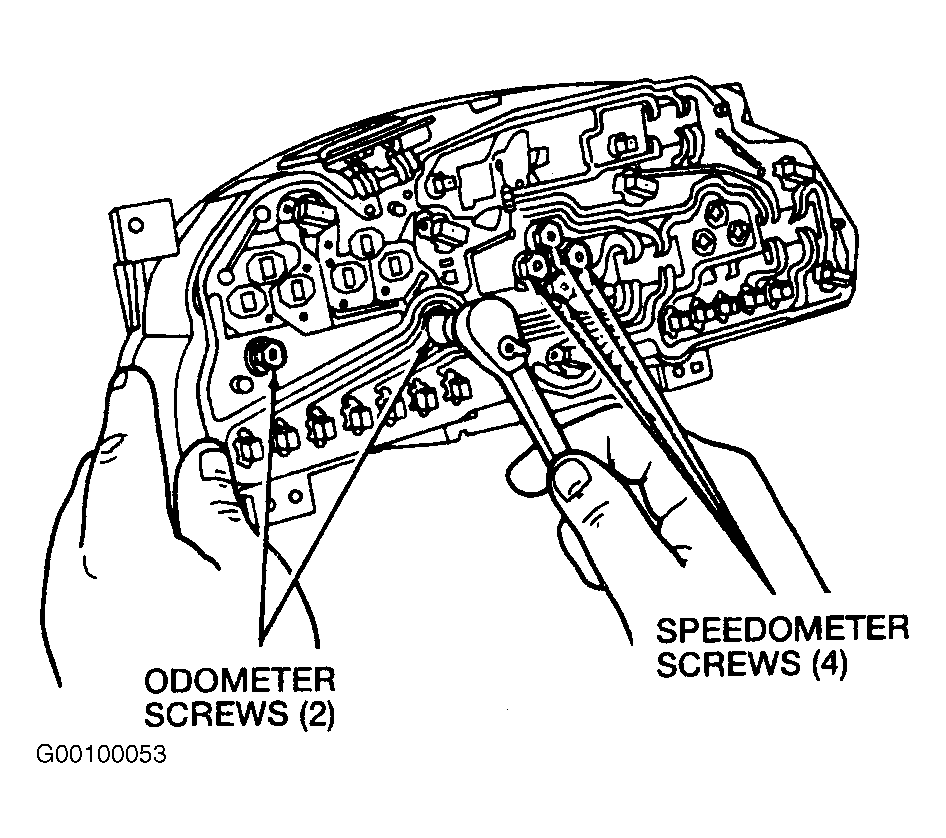

  2. Remove the four speedometer screws and the two odometer screws from the rear of the instrument cluster. See Figure .

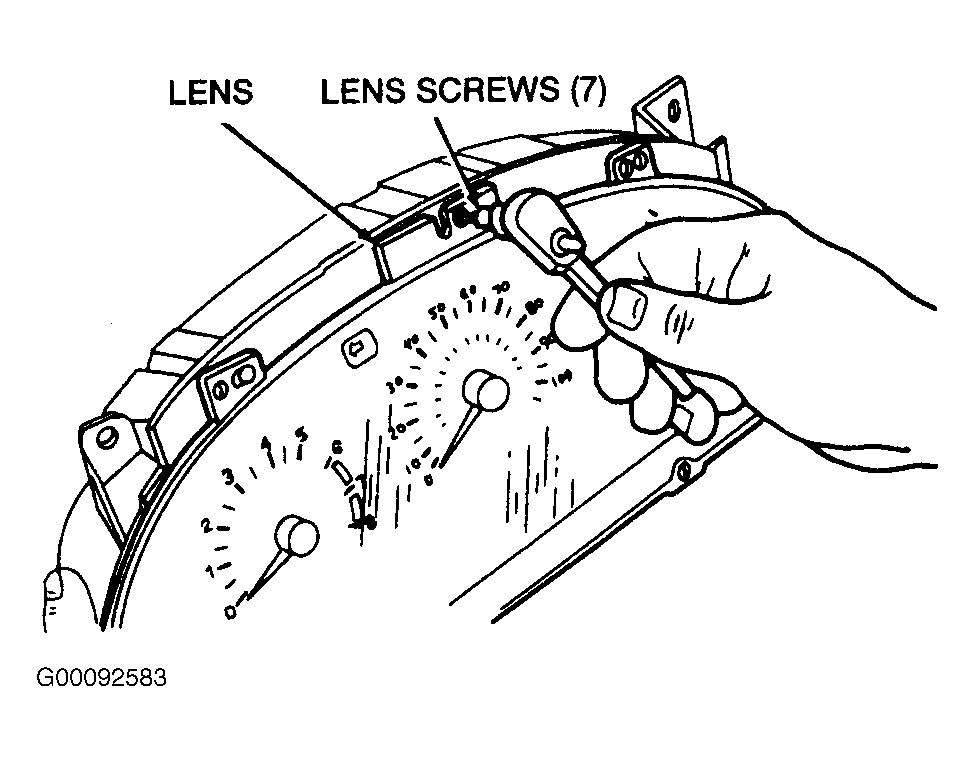

  3. Remove the seven instrument cluster main lens screws and the instrument cluster main lens. SeeFigure .

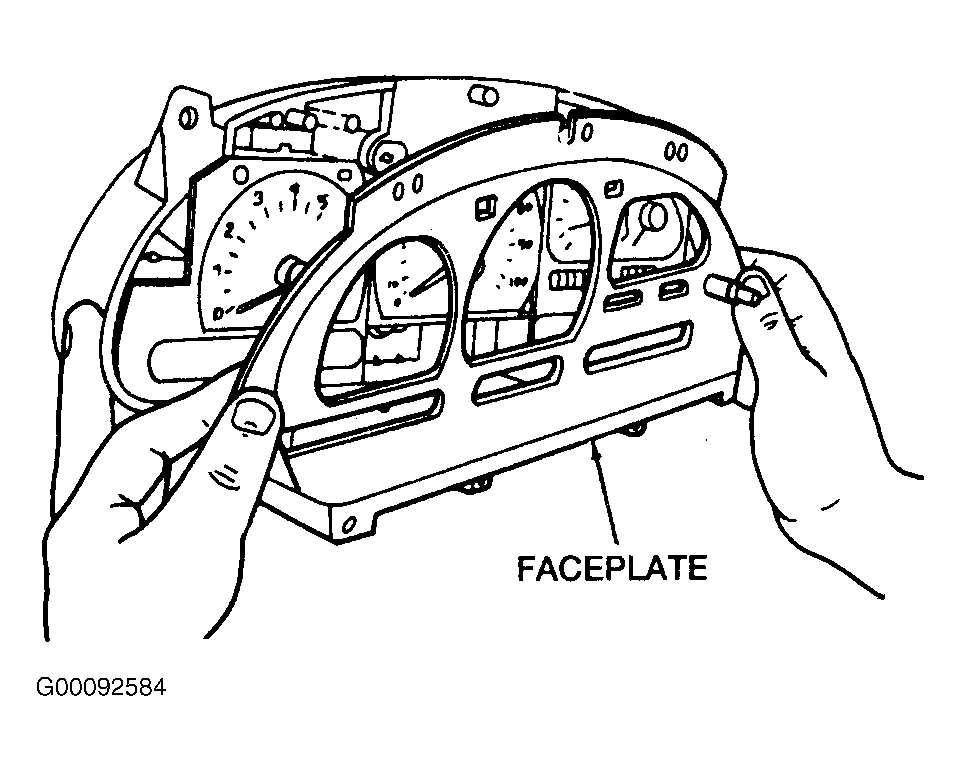

  4. Remove the instrument cluster mask. See Figure .

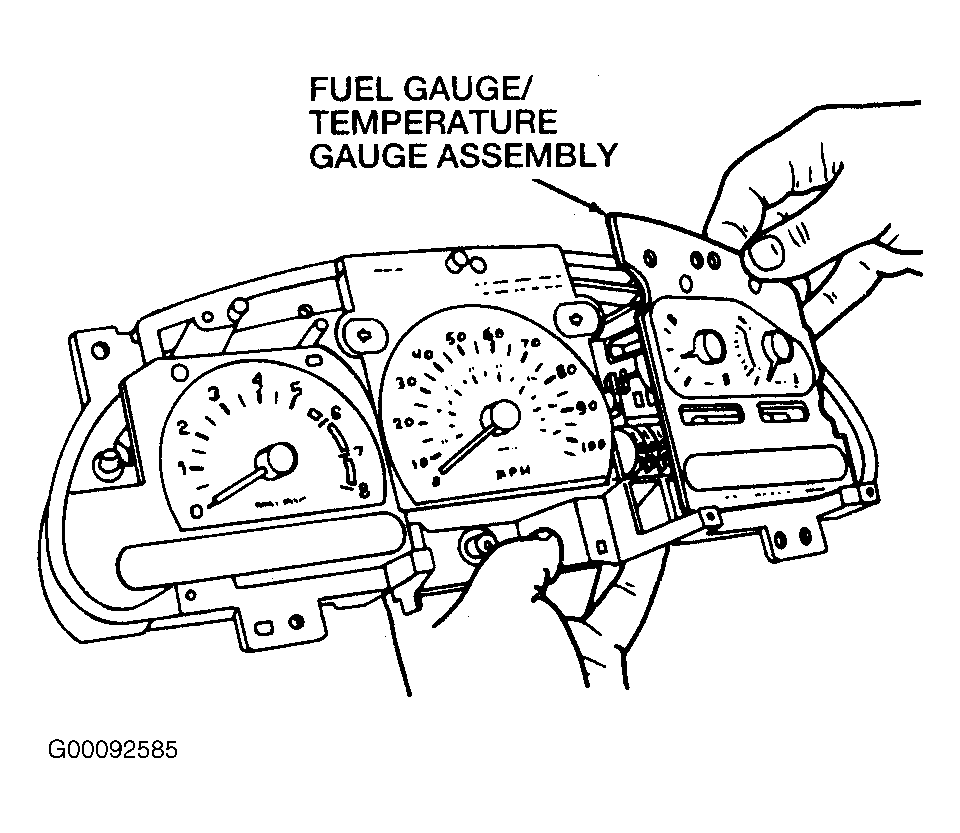

  5. Remove the fuel gauge/temperature gauge assembly. See Figure .
  6. Remove the speedometer/odometer assembly.
  7. Disconnect the odometer electrical connector. See Figure .
