Instrument Cluster Printed Circuit: Installation

NOTE: Install the instrument cluster printed circuit using new indicator terminals.

To install, reverse the removal procedure.

Fig 1: Locating Odometer & Speedometer Screws
G00100053Courtesy of FORD MOTOR CO.

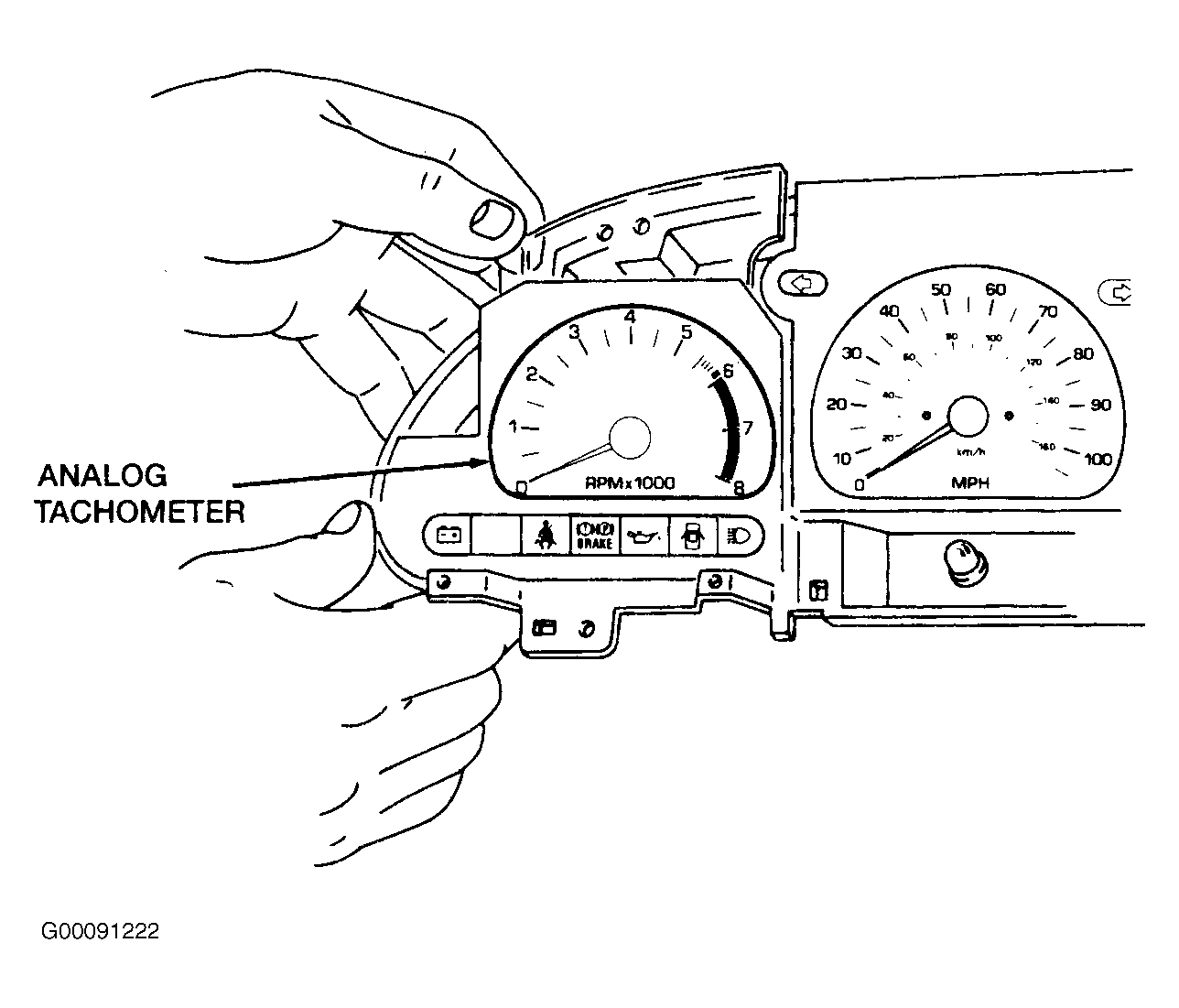

Fig 2: Removing Tachometer
G00091222Courtesy of FORD MOTOR CO.

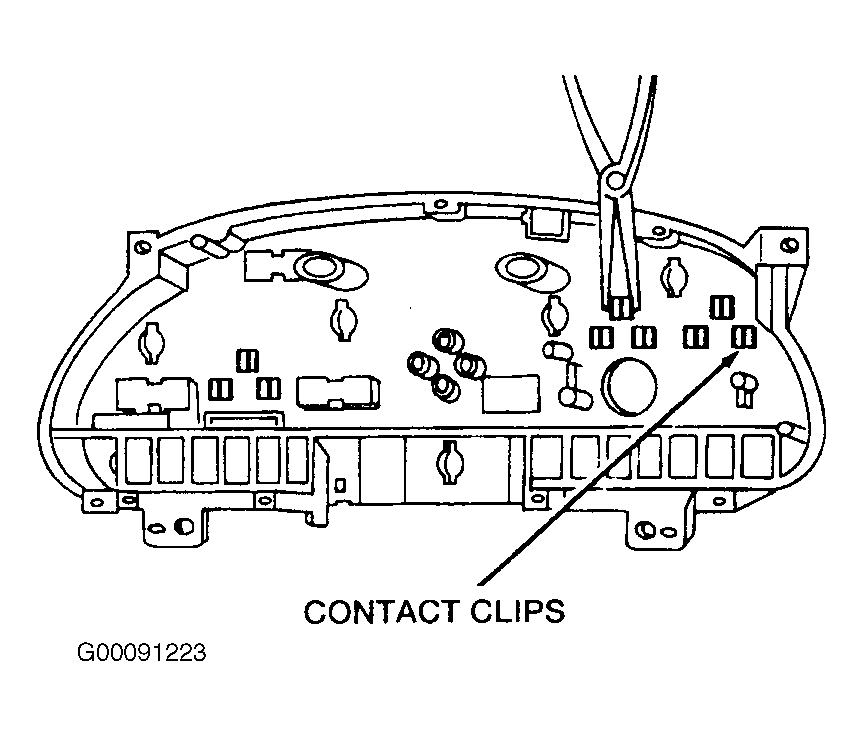

Fig 3: Locating Indicator Terminals
G00091223Courtesy of FORD MOTOR CO.

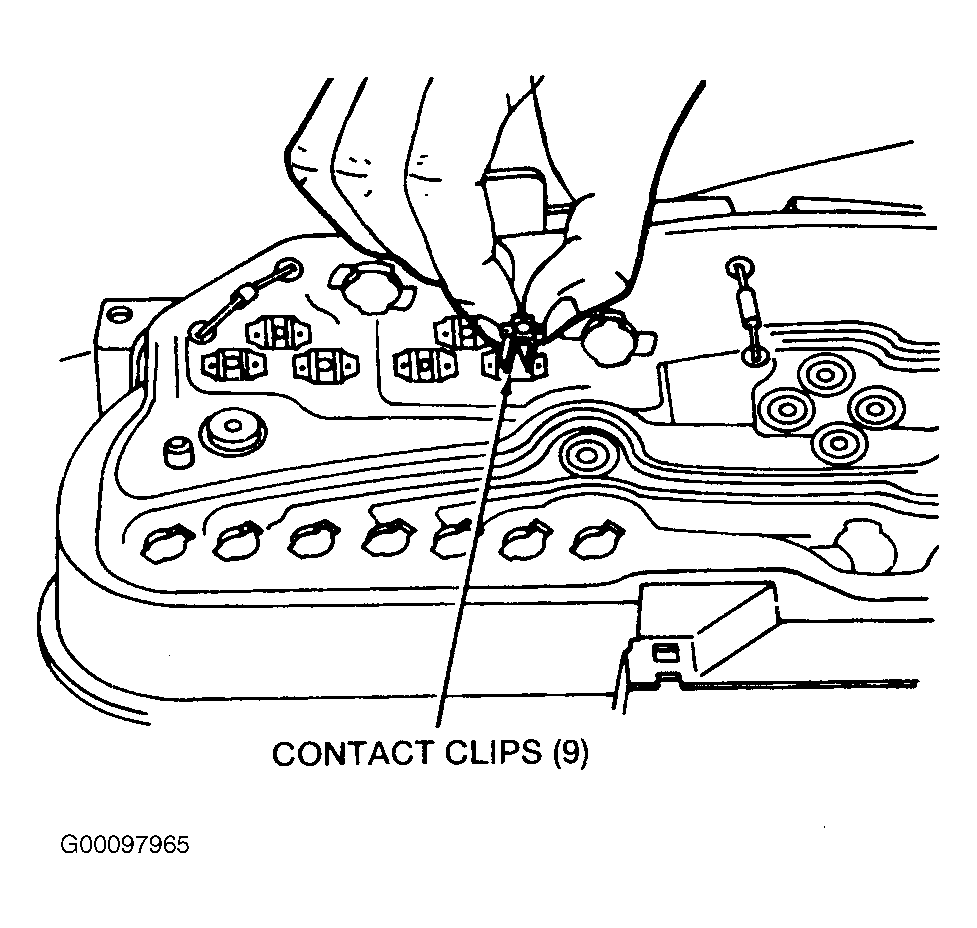

Fig 4: Removing Indicator Terminals
G00097965Courtesy of FORD MOTOR CO.
Fig 5: Removing Instrument Cluster Printed Circuit
G00097966Courtesy of FORD MOTOR CO.
