Fuel Indicator Module: Removal

  1. Remove the instrument cluster. See INSTRUMENT CLUSTER  .
    2. CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.
  2. Depress the clip on the fuel indicator module and remove the fuel indicator module. See Fig 1 .

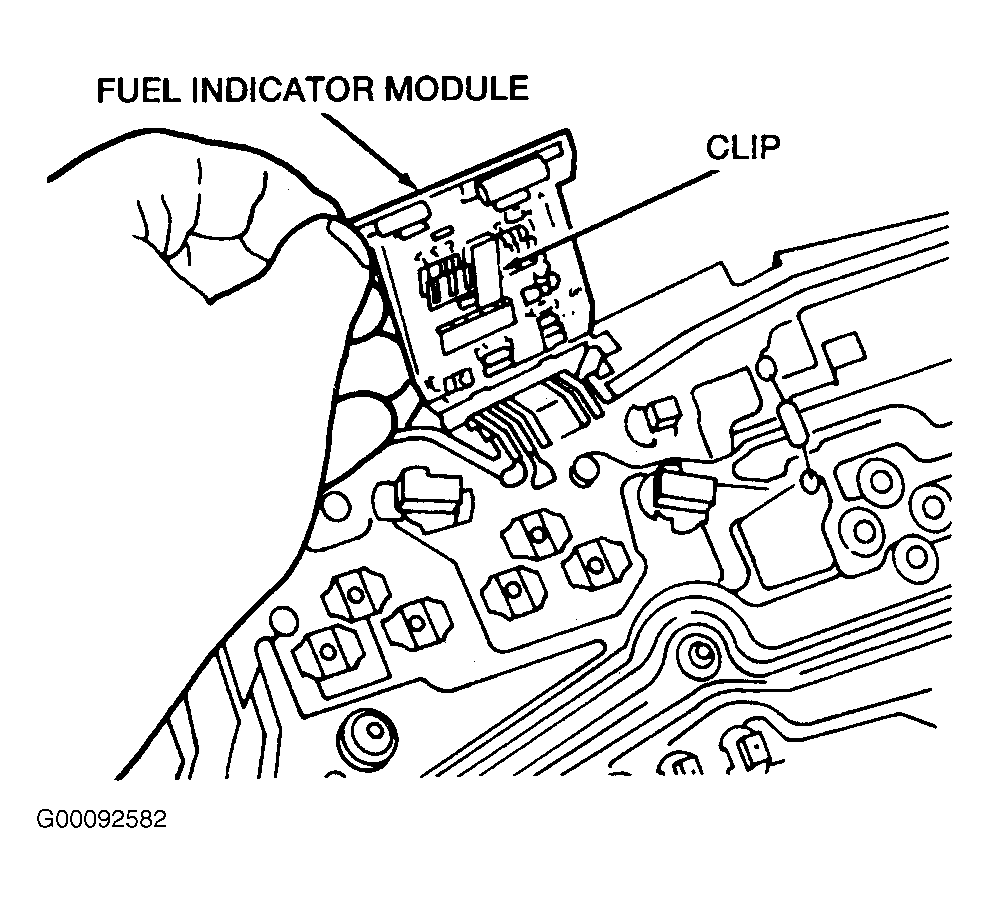

Fig 1: Removing Fuel Indicator Module
G00092582Courtesy of FORD MOTOR CO.
