Instrument Cluster (Ic): Notes
WARNING: This page is about a different car, the 2009 Ford Pickup, 2009 Ford F550 Super Duty, 2009 Ford F450 Super Duty, and 2009 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

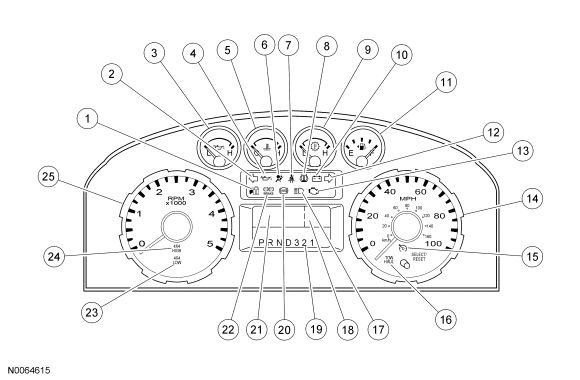

Gasoline vehicles equipped with automatic transmission shown, other clusters similar.
| Item | Description |
|---|---|
| 1 | Anti-theft indicator |
| 2 | LH turn indicator |
| 3 | Oil pressure gauge (gasoline) or boost gauge (diesel) |
| 4 | Low oil pressure warning indicator (gasoline) or wait to start (diesel) |
| 5 | Temperature gauge |
| 6 | Air bag warning indicator |
| 7 | Safety belt warning indicator |
| 8 | Tire pressure monitoring system (TPMS) warning indicator (late build) |
| 9 | Transmission temperature gauge (automatic transmission) or voltage gauge (manual transmission) |
| 10 | Charging system warning indicator |
| 11 | Fuel gauge |
| 12 | RH turn indicator |
| 13 | Malfunction indicator lamp (MIL) |
| 14 | Speedometer |
| 15 | Speed control indicator |
| 16 | Tow haul indicator |
| 17 | High beam indicator |
| 18 | Reconfigurable telltale display area |
| 19 | Electronic PRNDL display |
| 20 | ABS warning indicator |
| 21 | Message center display area |
| 22 | Brake warning indicator |
| 23 | Four wheel drive (4WD) low indicator |
| 24 | 4WD high indicator |
| 25 | Tachometer |
