Active Roll Stabilization, Basic Function - GF32.34-P-1000A
Model All (CAR) with code 465 (Electric Active Roll Stabilization (EARS))
Model All (CAR) with code 470 (Semi-active roll stabilization (Semi ARS))
Model All (CAR) with code 479 (Adjustable chassis)

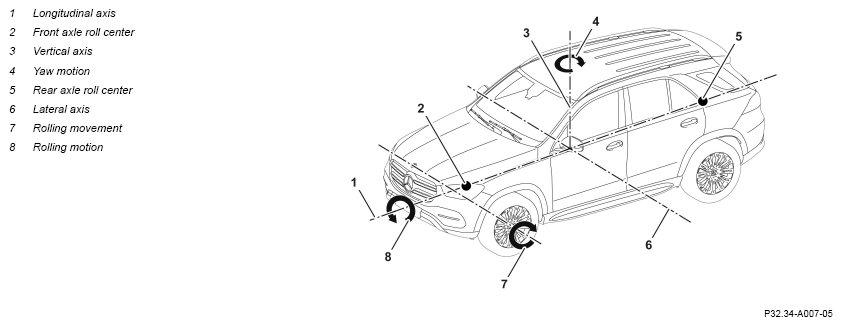

Example illustration of active roll stabilization
Overview
This document contains information on:
- General
- Function
General
Active roll stabilization is implemented by the wheel alignment systems that actively influence the swaying or rolling motion of the vehicle body.
Function
In contrast to passive systems such as stabilizers or torsion bars on the front axle (FA) and rear axle (RA), which (statically) increase the rolling strength of the suspension, active roll stabilization counteracts the applied forces to match the current situation.
Rolling motions should always be differentiated between driver-induced and roadway-induced rolling.
Driver-induced rolling is caused by steering motions that can be felt as transverse forces (yaw, rolling) on the vehicle body.
Roadway-induced rolling occurs when driving over uneven roadways that involve vertical and angular movements around the transverse or longitudinal axis (pitching/rolling), e.g. when driving over obstacles on one side.
In order to actively counteract the vehicle body's rolling motions and ensure an increase in vehicle dynamics, ride comfort and driving safety, the following systems are used:
- Electric active roll stabilization ("EARS")
- Semi-active roll stabilization ("Semi ARS")
| Function schematics | |||
| Function schematic for Active Roll Stabilization | Model 167 with code 465 (Electric Active Roll Stabilization (EARS)) | PE32.34-P-2060-97A | |
| Model 192, 232 with code 470 (Semi-active roll stabilization (Semi ARS)) | PE32.34-P-2060-97B | ||
| Model 223 with code 465 (Electric Active Roll Stabilization (EARS)) | PE32.34-P-2060-97C | ||
| Additional basic functions | |||
| Active roll stabilization lateral acceleration sensor, basic function | Vehicles with code 465 (Electrical active roll stabilization (EARS)) | GF32.34-P-2000A | |
| Detailed information | |||
| Active Roll Stabilization, detailed information | Model 167, 223 with code 465 (Electric Active Roll Stabilization (EARS)) | GF32.34-P-1050A | |
| Model 232 with code 470 (Semi-active roll stabilization (Semi ARS)) with code 479 (Adjustable chassis) | GF32.34-P-1050B |
