Remove/Install Rear Axle Camber Strut - AR35.20-P-0110SG

Model 223

with code Z07 (B7 armoring on special protection version)

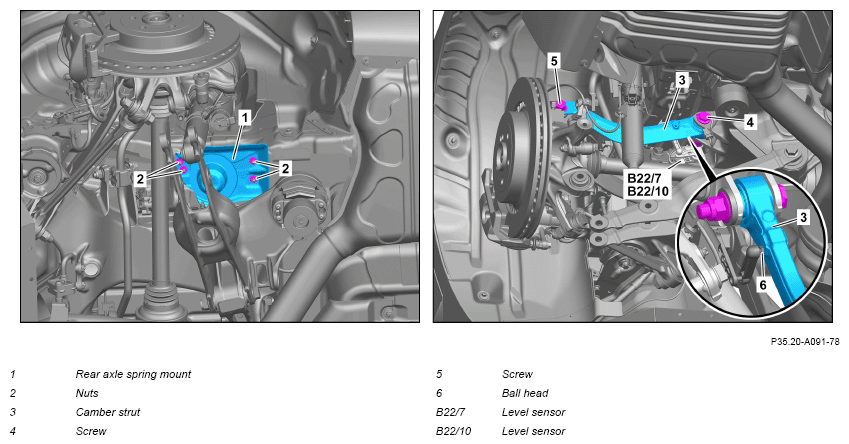

Fig 1: Rear Axle Camber Strut Components Location - Model 223 With Code Z07

Courtesy of MERCEDES-BENZ USA

Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove corresponding rear wheel.		AR40.10-P-1102A
2	Remove corresponding rear axle spring.		AR32.20-P-0232SG
3	Remove nuts (2) of rear axle spring mount (1).	Nut, mount/console rear axle spring to body	*BA61.10-P-1021-01P
4	Remove rear axle spring mount (1).
5	Remove ball head (6) of level sensor (B22/7, B22/10) from camber strut (3).
6	Remove nut from screw (5) and unscrew screw (5).	Screw, camber strut to wheel carrier	*BA35.20-P-1002-02N
7	Remove nut from screw (4) and unscrew screw (4).	Screw/Nut camber strut to rear axle carrier	*BA35.20-P-1001-02N
8	Remove camber strut (3).
	Check
9	Check that camber strut (3) is in good condition and not damaged.	If there is a problem, ↓ replace camber strut (3).
10	Check elastomer bearing in wheel carrier for condition and damage.	If there is a problem, ↓ replace wheel carrier.	AR35.20-P-0115S
11	Install in the reverse order.
	Measure
12	Perform wheel alignment measurement.		AR40.20-P-0200S
