Remove/Install Sensor System for Seat Occupancy Recognition - AR91.60-P-0010S

Model 223

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install

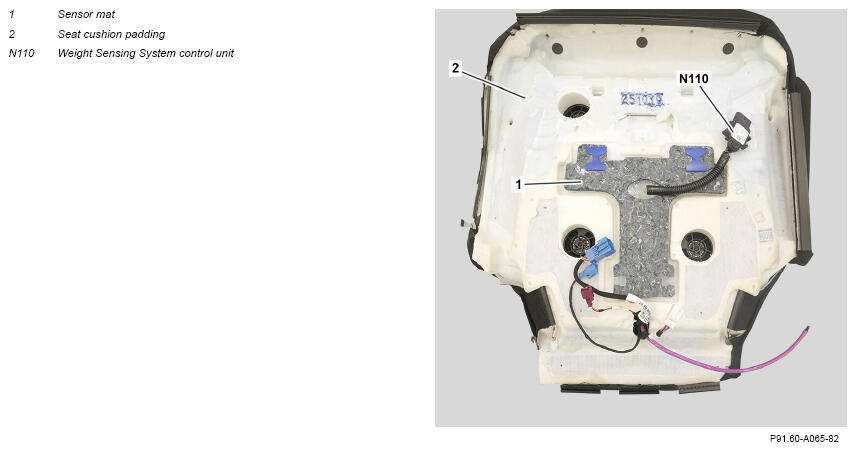

1	Remove seat cushion padding (2) of front passenger seat.	When replacing the sensor mat (1) with Weight Sensing System control unit (N110), the seat cushion including cover is delivered precalibrated complete with the Weight Sensing System control unit (N110) and sensor mat (1).	AR91.10-P-5040S
2	Install in the reverse order
	Initial startup
3	Commission Weight Sensing System control unit (N110).
			AD00.00-P-2000-06FR
		Plates	Fig 1

Fig 1: Identifying Plates (000 589 00 32 00)

Courtesy of MERCEDES-BENZ USA
