Remove/Install Right Inerting System Line In Engine Compartment - AR86.10-P-0419SA

Model 223 with engine 256

with code 2U8 (Alternative refrigerant)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove engine covers.
		Model 223 with engine 256 with code 2U8 (Alternative refrigerant)	AP01.10-P-2405-01OB

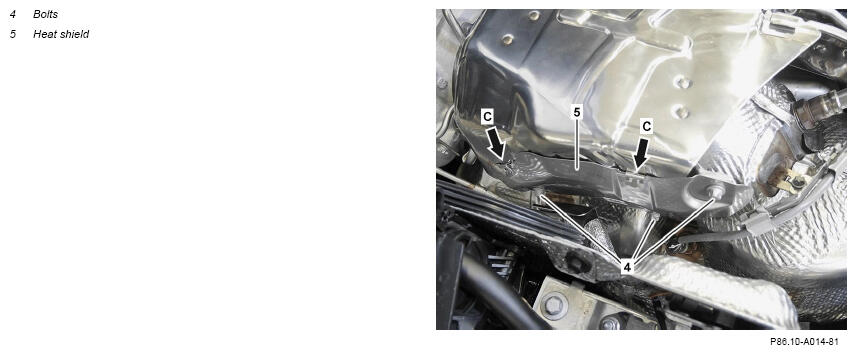

2	Remove bolts (4), unclip heat shield (5) (arrow C) and remove.

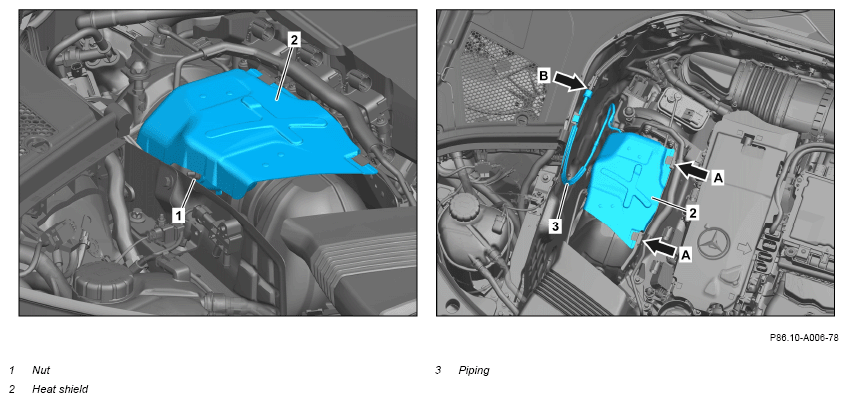

3	Remove nut (1).
4	Unclip right heat shield (2) (arrow A) and remove.
5	Release and disconnect piping (3) (arrow B).	Replace clamp on piping (3).
6	Unclip piping (3) and remove from engine.	Pipe for inerting to engine	*BA86.10-P-1002-03G
7	Install in the reverse order.

INERTING

Number	Designation					Model 223
BA86.10-P-1002-03G	Pipe for inerting to engine	M6	Screw		Nm	8
			Nut	Stage 1	Nm	8
				Stage 2	∠°	-
