Remove/Install Extinguishing Agent Line To Right Distributor Block On Underbody - AR86.10-P-0137SG

Model 223

with code Z07 (B7 armoring on special protection version)

with code Z21 (Fire extinguishing system)

Courtesy of MERCEDES-BENZ USA

	Note on calculation of tightening torque when using insertion or socket tools with various effective lengths		AH00.00-P-0015-01CW
	Remove/install
1	Remove center armor plate and rear armor plate.		AR61.40-P-1001S
2	Remove rear underfloor paneling.		AR61.30-P-1001S
3	Remove complete rear axle.		AR35.10-P-0010S

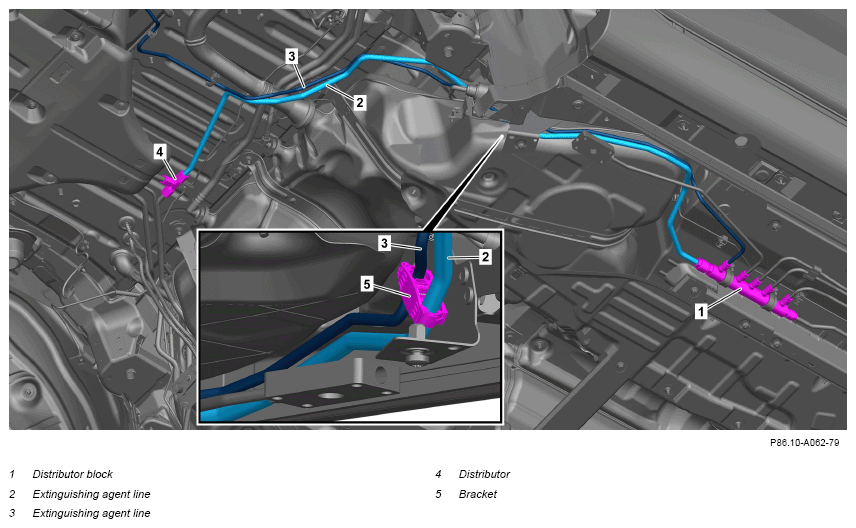

4	Expose extinguishing agent lines (2, 3) on bracket (5).
5	Remove union nut for extinguishing agent line (2) and carefully remove extinguishing agent line (2) from distributor (4).	Threaded connections for fire extinguisher agent lines	*BA86.10-P-1018-01E
6	Remove union nut for extinguishing agent line (2) and carefully remove extinguishing agent line (2) from distributor block (1).	Threaded connections for fire extinguisher agent lines	*BA86.10-P-1018-01E
7	Remove extinguishing agent line (2) downward.
8	Install in the reverse order.
