Remove/Install Emergency Fresh-Air System Hose - AR86.10-P-0157SG

Model 223

with code Z07 (B7 armoring on special protection version)

with code Z25 (Emergency fresh-air system)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Notice	Notes on preventing damage to emergency fresh air system of special protection vehicles.		AH86.10-P-0002-01A
	Remove/install

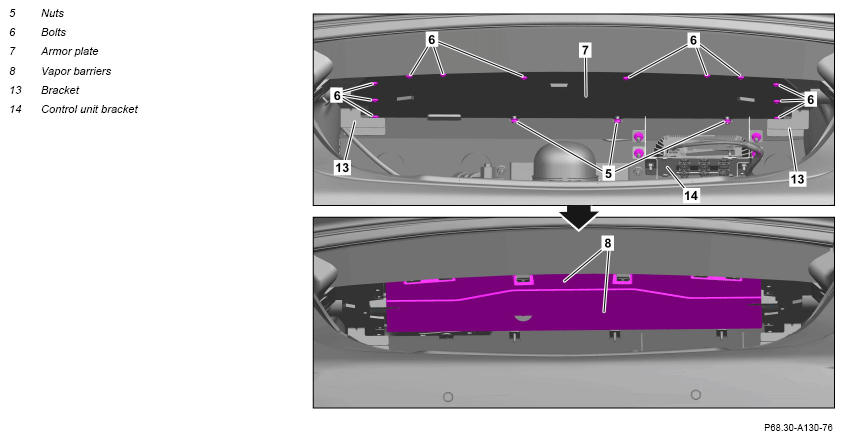

1	Remove left side trunk lining.		AR68.30-P-4800SG
2	Remove the holders (13).
3	Remove control unit holder (14) and place to one side with connected lines.
4	Remove nuts (5).	Nut, rear panel guard plate to body shell	*BA64.10-P-1002-01E
5	Remove screws (6) and remove armor plate (7).	Helper required.
		Bolt, rear panel guard plate to body shell	*BA64.10-P-1001-01E
6	Take out damping (8).

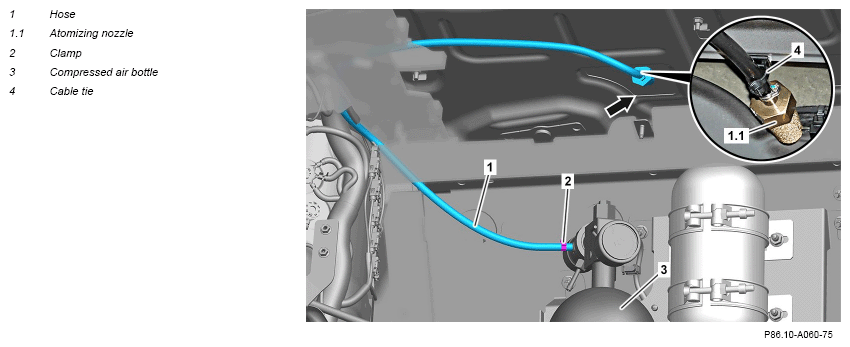

7	Open clamp (2) and detach hose (1) from compressed air cylinder (3).
8	Remove cable tie (4).	Hook atomizer nozzle (1.1) onto body panel.
9	Expose hose (1) and remove.
10	Install in the reverse order.
