Remove/Install Compressor For Refrigerator Box Refrigerant - AR86.61-P-1021SG
Model 223
with code 308 (Refrigerated compartment in rear passenger compartment)
with code Z07 (B7 armoring on special protection version)
| Risk of explosion caused by welding and soldering work on refrigerant circuit of refrigerator box. Risk of poisoning caused by inhaling overheated refrigerant vapors. Risk of injury to skin and eyes caused by contact with liquid refrigerant. | Never perform welding work on or near refrigerator box or compressor. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated areas. | AS86.61-Z-0001-02H | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Action if refrigerant circuit in refrigerator box is damaged | AH86.61-P-0002-01H | |
| Notes on handling R134a refrigerant | AH86.61-P-0003-01H | ||
| Notes on handling components for refrigerant circuit in refrigerator box | AH86.61-P-0004-01H | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Remove rear center console. | Model 223 with code 224 (Individual rear seats) with code 308 (Refrigerated compartment in rear passenger compartment) with code Z07 (B7 armoring on special protection version) |
|
| AR68.20-P-2020S | |||

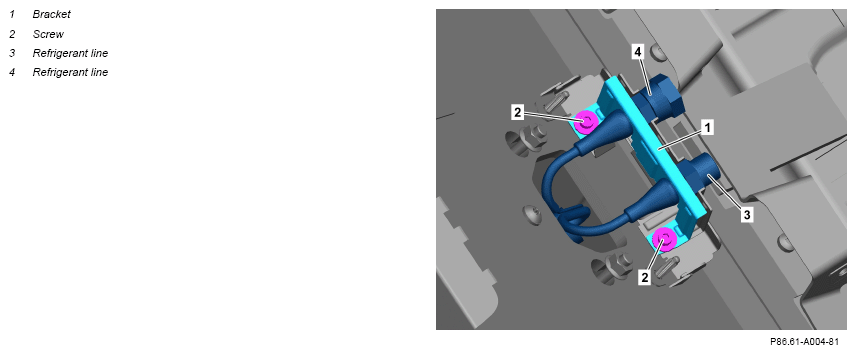

| 3 | Remove screws (2) from bracket (1). | *BA86.61-P-1001-01B | |
| 4 | Remove bracket (1) upwards from refrigerant lines (3, 4). | ||
| 5 | Remove insulation mat in trunk. | ||

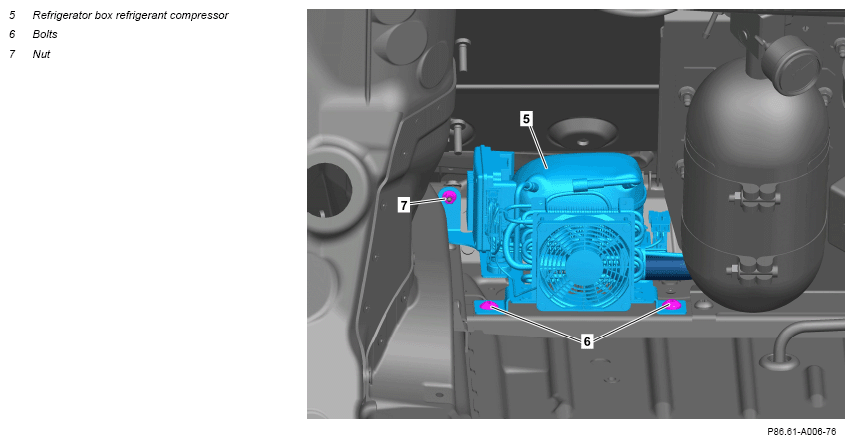

| 6 | Unscrew screws (6) at refrigerant box refrigerant compressor (5). | *BA86.61-P-1002-01B | |
| 7 | Remove nut (7) at refrigerant box refrigerant compressor (5). | ||
| 8 | Carefully lift out refrigerant box refrigerant compressor (5). | Ensure that refrigerant lines (3, 4) are not kinked. Refrigerant lines (3, 4) will otherwise be damaged and function of refrigerator box refrigerant compressor (5) is no longer ensured. |
|
| 9 | Install in the reverse order | ||
| Concluding tasks | |||
| 10 | Empty refrigerant circuit of refrigerator box refrigerant compressor (5), evacuate and refill. | When replacing refrigerator box refrigerant compressor (5) due to a leak in refrigerant circuit. | |
| AR86.61-P-1022SG |
REFRIGERATOR BOX
| Number | Designation | Model 223 with code 308 (Refrigerated compartment in rear passenger compartment) with code Z07 (B7 armoring on special protection version) | |
|---|---|---|---|
| BA86.61-P-1001-01B | Screw, holder for connecting point of refrigerant lines | Nm | 3 |
REFRIGERATOR BOX
| Number | Designation | Model 223 with code 308 (Refrigerated compartment in rear passenger compartment) with code Z07 (B7 armoring on special protection version) | |
|---|---|---|---|
| BA86.61-P-1002-01B | Screw, compressor to body | Nm | 20 |
