Check Fire Extinguisher - AP86.10-P-8650S
Model 223
with code Z07 (B7 armoring on special protection version)
with code Z21 (Fire extinguishing system)
Shown on model 223.179 with code Z07 (B7 armoring for special protection version), with code Z21 (Fire-extinguishing system)
Shown on model 223.179 with code Z07 (B7 armoring for special protection version), with code Z21 (Fire-extinguishing system)
Shown on model 223.179 with code Z07 (B7 armoring for special protection version), with code Z21 (Fire-extinguishing system)
Shown on model 223.179 with code Z07 (B7 armoring for special protection version), with code Z21 (Fire-extinguishing system)
Shown on model 223.179 with code Z07 (B7 armoring for special protection version), with code Z21 (Fire-extinguishing system)
Shown on model 223.179 with code Z07 (B7 armoring for special protection version), with code Z21 (Fire-extinguishing system)
Shown on model 223.179 with code Z07 (B7 armoring for special protection version), with code Z21 (Fire-extinguishing system)
| Risk of injury from engine start by remote start function | Prior to starting work, open engine hood, do not reach into rotation range or hazard area of freely rotating parts, wear closed and snug-fitting work clothes | AS00.00-Z-0024-01A | |
| Risk of injury due to fan starting unexpectedly | Do not reach into the rotation area or danger zone of the fan. Wear closed and snug-fitting work clothes. | AS20.40-Z-0001-01A | |
| Notice | Special notes regarding wax preservation | AH97.20-P-1000-02PV | |
| Notes on aerosol extinguishing agent tank | AH86.10-P-0001-02A | ||
| Preparatory activity | |||
| 1 | Open hood and trunk lid. | ||

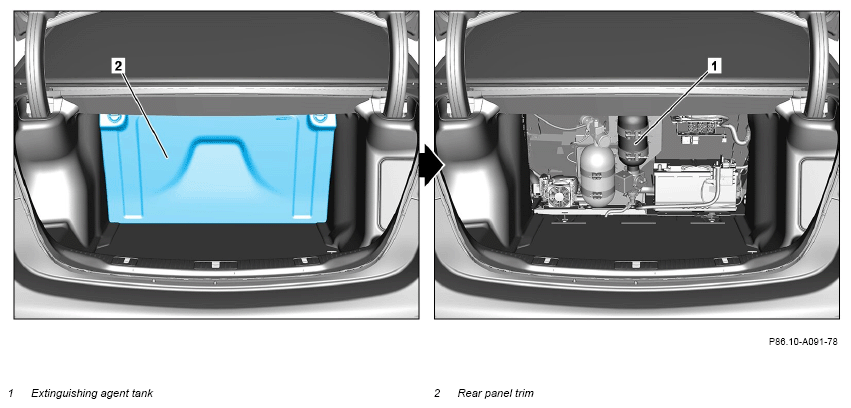

| 2 | Remove rear panel trim (2). | ||
| AR68.30-P-4750SG | |||
| Check | |||

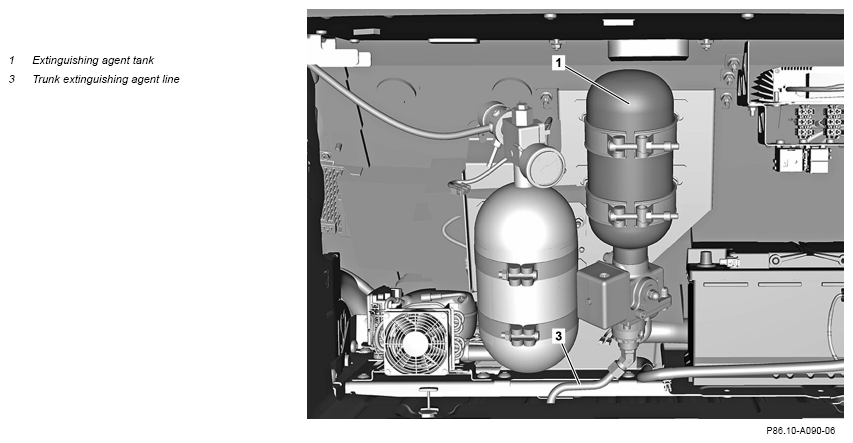

| 3 | Check extinguishing agent tank (1). | If problems are determined, ↓ rectify the problems. |
AP86.10-P-8656S |
| 4 | Check trunk extinguishing agent line (3) for damage, corrosion, routing, chafe marks and firm seating. | If problems are determined, ↓ rectify the problems. |
|
| 5 | Lift vehicle with vehicle lift. | ||
| AR00.60-P-1006A | |||

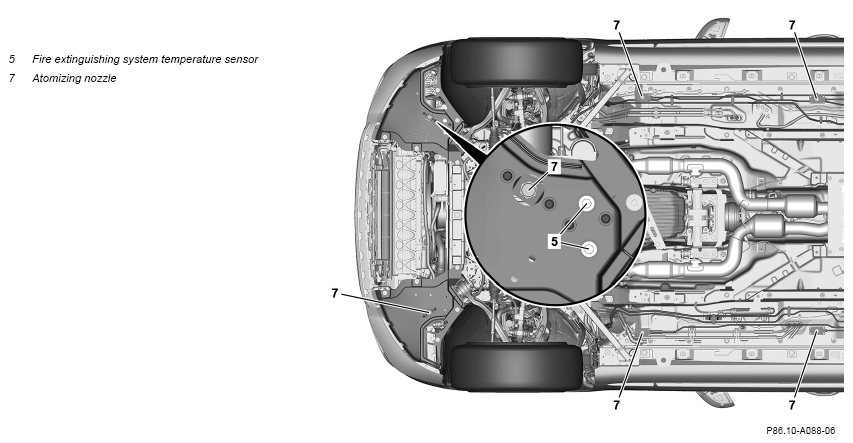

| 6 | Check fire-extinguishing system temperature sensors (5). | ||
| If problems are determined, ↓ rectify the problems. |
AR86.10-P-0124SG | ||
| 7 | Check all atomizer nozzle cover caps (7) for damage and completeness. | If problems are determined, ↓ rectify the problems. |
|
| Remove | |||
| 8 | Remove front engine compartment lining, center engine compartment lining and rear engine compartment lining. | ||
| AR61.20-P-1105S | |||
| 9 |
Remove technical underbody protection. | AR61.40-P-1001S | |
| Check | |||

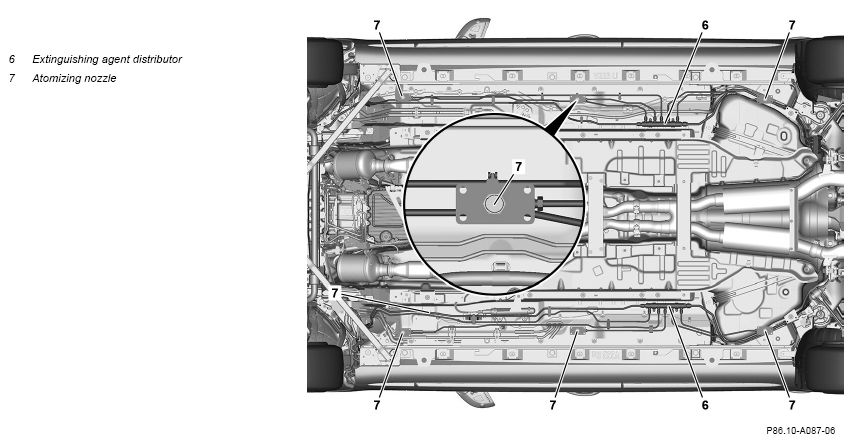

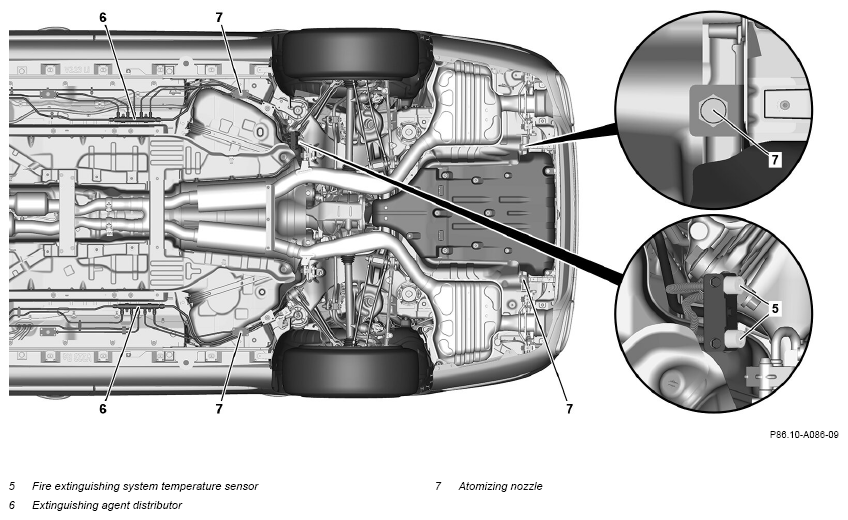

| 10 | Check all extinguishing agent distributors (6) on underbody for damage, corrosion, routing, chafe marks and firm seating. | If problems are determined, ↓ rectify the problems. |
|
| 11 | Check all extinguishing agent lines on underbody for damage, corrosion, routing, chafe marks and firm seating. | If problems are determined, ↓ rectify the problems. |
|

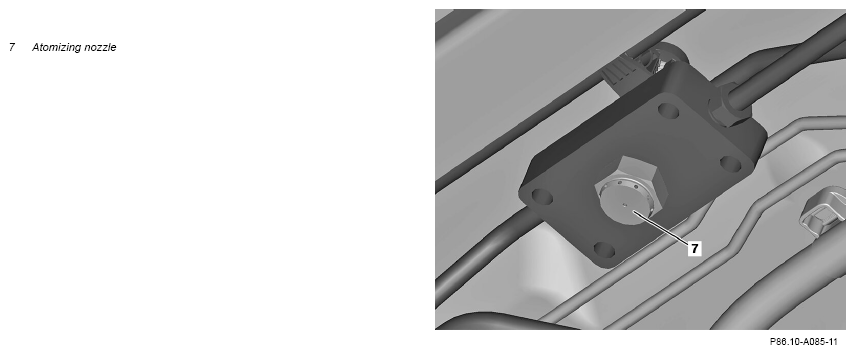

| 12 | Check all atomizer nozzles (7) on underbody for damage, blockage and corrosion. | If problems are determined, ↓ rectify the problems. |
|
| 13 | Check all fasteners and connections of atomizer nozzles (7) on underbody for damage, corrosion, chafe marks and firm seating. | If problems are determined, ↓ rectify the problems. |
|
| Install | |||
| 14 | Install technical underbody protection. | ||
| AR61.40-P-1001S | |||
| 15 | Install front engine compartment lining, center engine compartment lining and rear engine compartment lining. | ||
| AR61.20-P-1105S | |||
| Check | |||
| 16 | Check atomizer nozzle cover caps (7) for correct positioning and firm seating. | ||
| 17 | Lower vehicle with vehicle lift. | ||
| AR00.60-P-1006A | |||

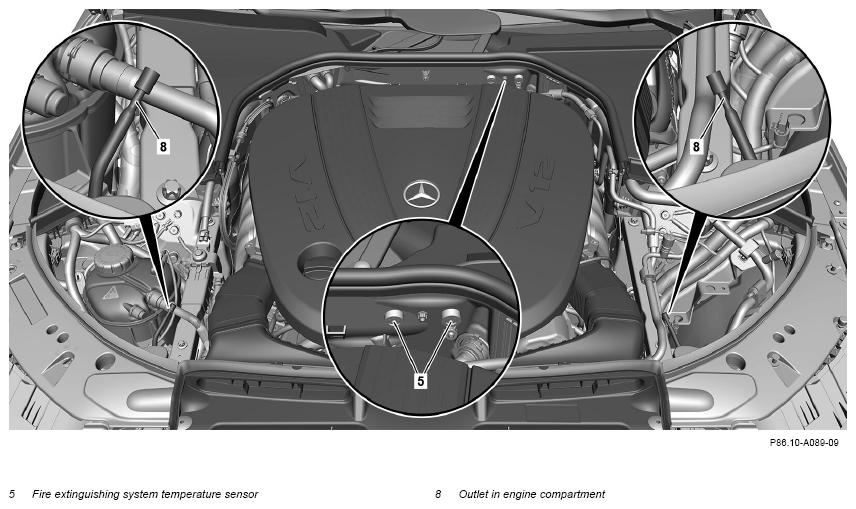

| 18 | Check all cover caps of outlets in engine compartment (8) for damage and completeness. | If problems are determined, ↓ rectify the problems. |
|
| 19 | Remove all cover caps from outlets in engine compartment (8) and check all outlets in engine compartment (8) for damage, blockage and corrosion. | If problems are determined, ↓ rectify the problems. |
|
| 20 | Check fire-extinguishing system temperature sensors (5). | ||
| If problems are determined, ↓ rectify the problems. |
AR86.10-P-0124SG | ||
| Install | |||
| 21 | Install all cover caps of outlets in engine compartment (8). | ||
| Check | |||
| 22 | Perform self-test for fire-extinguishing system. | ||
| If problems are determined, ↓ rectify the problems. |
AR86.10-P-0101-01SG | ||
| Finishing activity | |||
| 23 | Install rear panel trim (2). | ||
| AR68.30-P-4750SG | |||
| 24 | Close hood and trunk lid. |
