Check Extinguishing Agent Tank - AP86.10-P-8656S
Model 223
with code Z07 (B7 armoring on special protection version)
with code Z21 (Fire extinguishing system)

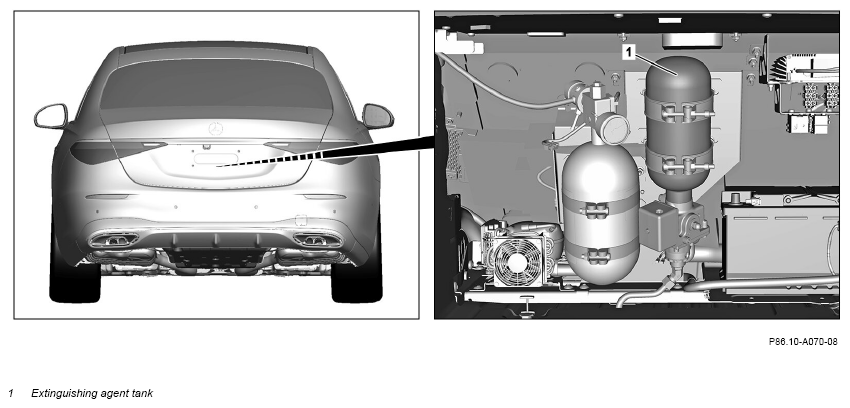

Shown on model 223.179 with code Z07 (B7 armoring for special protection version) and with code Z21 (Fire-extinguishing system)
Shown on model 223.179 with code Z07 (B7 armoring for special protection version) and with code Z21 (Fire-extinguishing system)
Shown on model 223.179 with code Z07 (B7 armoring for special protection version) and with code Z21 (Fire-extinguishing system)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on aerosol extinguishing agent tank | AH86.10-P-0001-02A | ||
| Remove | |||
| 1 |
Remove extinguishing agent tank (1). | AR86.10-P-0100SG | |
| Check | |||

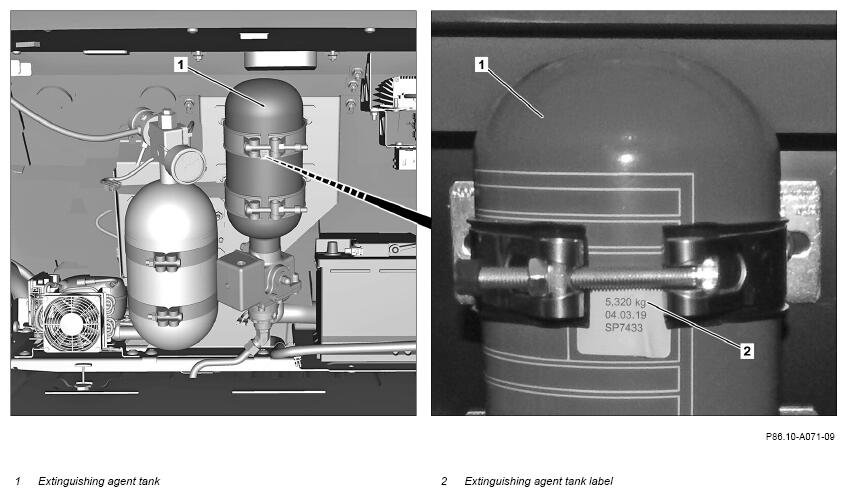

| 2 | Check whether extinguishing agent tank label (2) is present and whether details are fully legible. | If problems are determined, ↓ Replace extinguishing agent tank (1). |
|

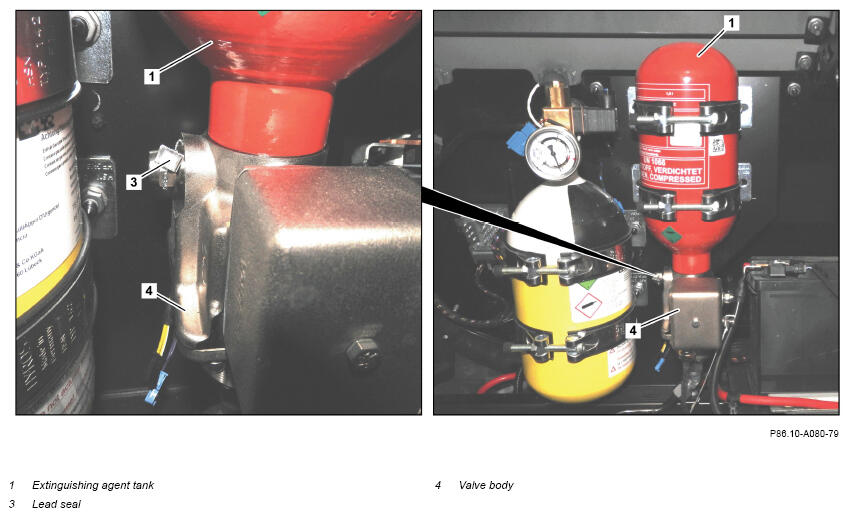

| 3 | Check whether anti-tamper seal (3) on valve body (4) of extinguishing agent tank (1) is present and check for damage to it. | If anti-tamper seal (3) is damaged or missing: ↓ Replace extinguishing agent tank (1). |
|
| 4 | Check extinguishing agent tank (1) for external damage and corrosion. | If problems are determined, ↓ Replace extinguishing agent tank (1). |
|
| 5 | Check gross weight of extinguishing agent tank (1). | If the gross weight of the extinguishing agent tank (1) deviates from the printed weight on the extinguishing agent tank label (2) by more than 50 g: ↓ Replace extinguishing agent tank (1). |
|
| Install | |||
| 6 |
Install extinguishing agent tank (1). | AR86.10-P-0100SG |
