Check Emergency Fresh Air System - AP86.10-P-8654S

Model 223

with code Z07 (B7 armoring on special protection version)

with code Z25 (Emergency fresh-air system)

Courtesy of MERCEDES-BENZ USA

Shown on model 223.179 with code Z07 (B7 armoring for special protection version), with code Z25 (Emergency fresh-air system)

Courtesy of MERCEDES-BENZ USA

Shown on model 223.179 with code Z07 (B7 armoring for special protection version), with code Z25 (Emergency fresh-air system)

Courtesy of MERCEDES-BENZ USA

Shown on model 223.179 with code Z07 (B7 armoring for special protection version), with code Z25 (Emergency fresh-air system)

Shown: Emergency fresh-air system pressurized gas cylinder (3) in removed condition in delivery box

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by flying parts if pressurized gas cylinders or their valves are damaged. Risk of injury  of body parts caused by "breathing gas" streaming out or by coming into contact with components near the valve. Risk of injury  of skin and body parts caused by "breathing gas" streaming out under high pressure	Work may only be done by instructed personnel. Wear protective clothing, hearing protection, safety gloves, safety glasses and face mask.	AS86.10-Z-0001-01A
	Risk of injury  from engine start by remote start function	Prior to starting work, open engine hood, do not reach into rotation range or hazard area of freely rotating parts, wear closed and snug-fitting work clothes	AS00.00-Z-0024-01A
	Risk of injury  due to fan starting unexpectedly	Do not reach into the rotation area or danger zone of the fan. Wear closed and snug-fitting work clothes.	AS20.40-Z-0001-01A
Notice	Notes on preventing damage to emergency fresh air system of special protection vehicles.		AH86.10-P-0002-01A
	Preparatory activity
1	Open hood and trunk lid.

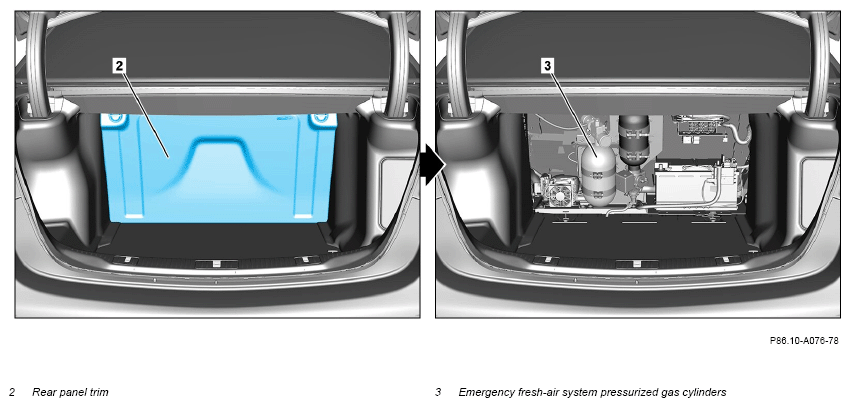

2	Remove rear panel trim (2).		AR68.30-P-4750SG
	Remove

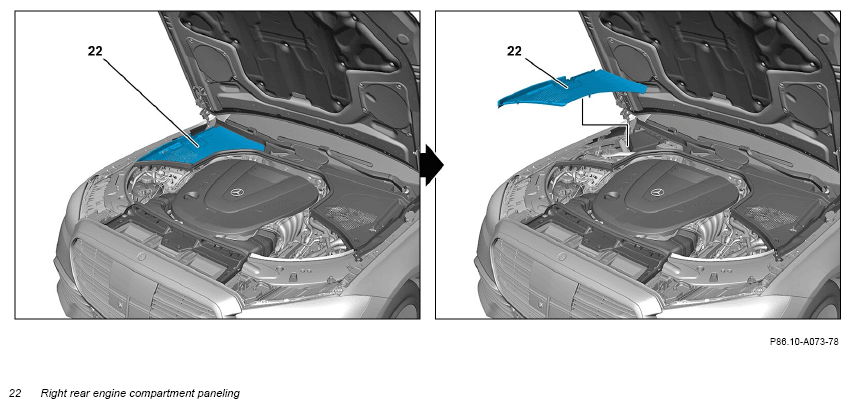

3	Remove right rear engine compartment trim (22).

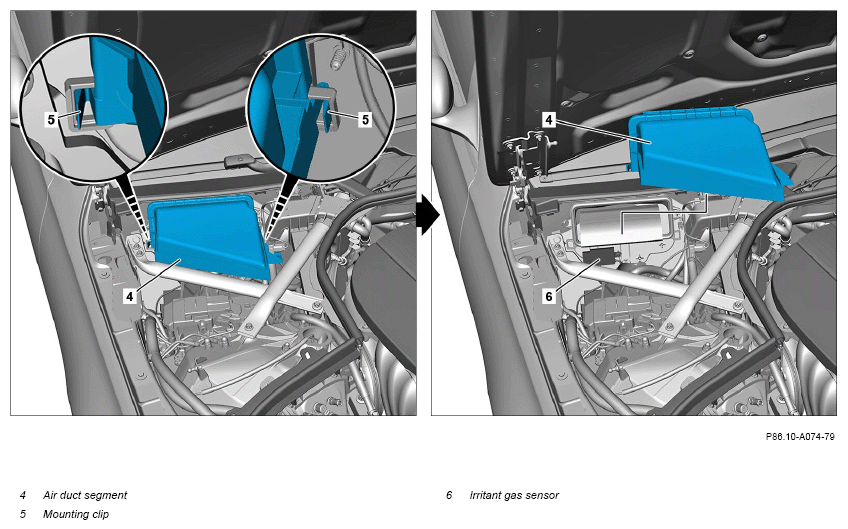

4	Unclip retaining clips (5) of air duct segment (4) and place air duct segment (4) on one side with the lines attached to it.	Do not crush or kink or subject electric lines to tension. Damage can otherwise occur.
	Check
5	Check irritant gas sensor (6) for correct seating, cracks, deformation and soiling.	If problems are determined, ↓ rectify the problems. After obtaining special order.
6	Read off reservoir pressure of emergency fresh-air system pressurized gas cylinder (3).	Reservoir pressure If problems are determined, ↓ rectify the problems. After obtaining special order.	*BF86.10-P-1001-01A

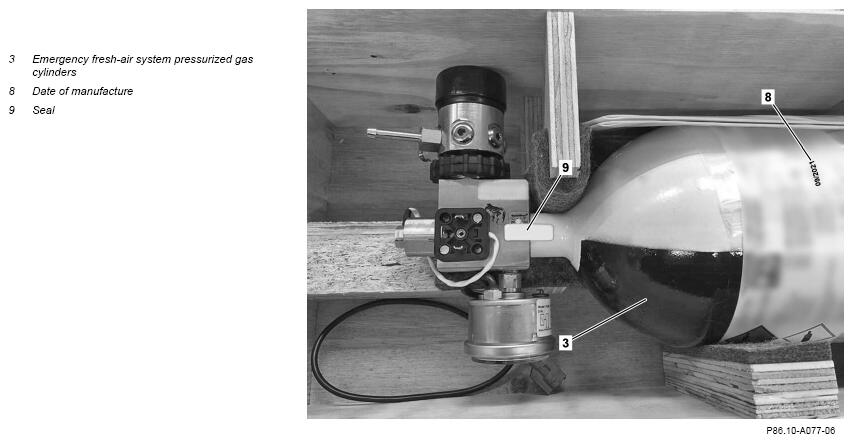

7	Check manufacturing date (8) of emergency fresh-air system pressurized gas cylinder (3).	If, according to the specified manufacturing date (8) on the emergency fresh-air system pressurized gas cylinder (3), the maximum service life of 10 years has been reached or exceeded, or is reached or exceeded within the next service interval, ↓ Replace emergency fresh-air system pressurized gas cylinder (3). After obtaining special order.
8	Check visible component parts, lines and hoses of emergency fresh-air system for damage, correct mounting and corrosion.	If problems are determined, ↓ rectify the problems. After obtaining special order.
9	Check that seal (9) on emergency fresh-air system is present and undamaged.	If problems are determined, ↓ rectify the problems. After obtaining special order.
10	Carry out self-test of emergency fresh-air system.	If problems are determined, ↓ rectify the problems. After obtaining special order.	AP86.10-P-8654-03S
	Install
11	Install air duct segment (4) and clip in retaining clips (5).
12	Install right rear engine compartment trim (22).
	Finishing activity
13	Install rear panel trim (2).		AR68.30-P-4750SG
14	Close hood and trunk lid.
