Carry Out Self-Test - AP86.10-P-8654-03S
Model 223
with code Z07 (B7 armoring on special protection version)
with code Z25 (Emergency fresh-air system)

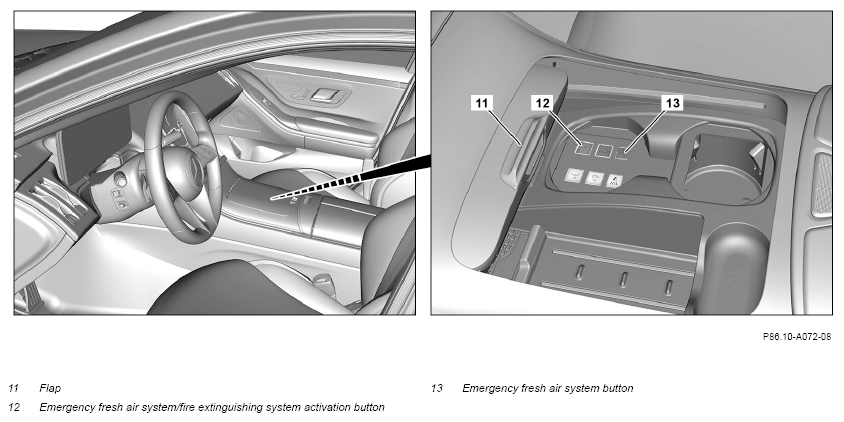

Shown on model 223.179 with code Z07 (Highest protection), with code Z25 (Emergency fresh-air system)
- Open flap (11).
- Switch electronic ignition lock control unit to position "2" (circuit 15) and check self-test of emergency fresh-air system.
The self-test of the emergency fresh air system is performed automatically.
If the fire-extinguishing system is intact, the light-emitting diode in the emergency fresh-air system/fire-extinguishing system activation button (12) and the light-emitting diode in the emergency fresh-air system button (13) light up for 6 seconds. The warning buzzer does not sound. The emergency fresh air system is ready for operation.
If the emergency fresh-air system is defective, the light-emitting diode in the emergency fresh-air system button (13) lights up continuously and the warning buzzer sounds for 6 seconds or the light-emitting diode in the emergency fresh-air system button (13) does not light up. The emergency fresh air system is nonfunctional.
If problems are determined,
↓
rectify the problems.
- Switch electronic ignition lock control unit to position "0".
- Close flap (11).
