Remove/Install Left Oxygen Sensor Upstream Of Catalytic Converter - AR07.04-P-0081SVZ
Engine 279 in model 223
Shown on removed engine

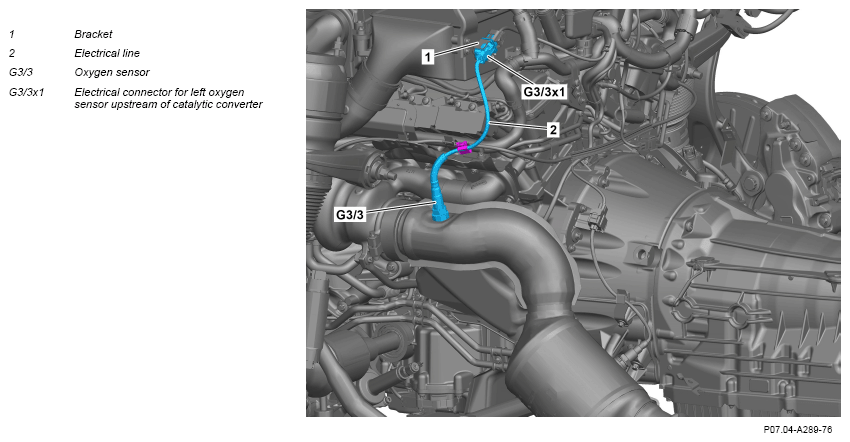

Fig 1: Left Oxygen Sensor Upstream Of Catalytic Converter Components Location - Model 223 With Engine 279
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone. | AS49.00-Z-0001-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Remove rear and center lower engine compartment lining. | AR61.20-P-1105S | |
| 3 | Remove engine cover. | AR01.10-P-2405SVZ | |
| 4 | Unclip electrical connector for left lambda sensor upstream of the catalytic converter (G3/3x1) from the holder (1). | ||
| 5 | Release and disconnect electrical connector for left lambda sensor upstream of the catalytic converter (G3/3x1). | ||
| 6 | Expose electric line (2). | ||
| 7 | Remove lambda sensor (G3/3). | Fig 3 | |
| 8 | Cover sensor tip of the lambda sensor (G3/3) with a protective cover. | If the lambda sensor (G3/3) will be re-used. |
Fig 2 |
| 9 | Close off threaded hole for the lambda sensor (G3/3) on the catalytic converter. | Lambda sensor screw plug threaded hole M18x1, 5 mm |
|
| Install | |||
| 10 | Remove protective cover or cover cap from the sensor tip of the lambda sensor (G3/3). | ||
| 11 | Coat thread of lambda sensor (G3/3) with heat-resistant lubricating paste. | If the lambda sensor (G3/3) will be re-used. Paste, hot lubrication 1 kg, DBL 6879.20 |
*BR00.45-Z-1005-06A |
| 12 | Expose threaded hole for the lambda sensor (G3/3) on the catalytic converter. | ||
| 13 | Turn in lambda sensor (G3/3). | ||
| Note on calculation of tightening torque when using insertion or socket tools with various effective lengths | AH00.00-P-0015-01CW | ||
| *BA14.00-P-1002-01A | |||
| Fig 3 | |||
| 14 | Route electric line (2) and secure. | ||
| 15 | Connect and lock electrical connector for left lambda sensor upstream of the catalytic converter (G3/3x1). | ||
| 16 | Clip electrical connector for left lambda sensor upstream of the catalytic converter (G3/3x1) into holder (1). | ||
| 17 | Install engine cover. | AR01.10-P-2405SVZ | |
| Check | |||
| 18 | Read out and delete fault memory using diagnostic system. | ||
| AD00.00-P-2000-06FR | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 19 | Perform an engine test run; check engine for proper operation and check exhaust system for leak tightness. | ||
| 20 | Install rear and bottom center engine compartment lining. | AR61.20-P-1105S |
OXYGEN SENSOR
| Number | Designation | Engine 279 | |
|---|---|---|---|
| BA14.00-P-1002-01A | Oxygen sensor to catalytic converter | Nm | 50 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1005-06A | Paste, hot lubrication 1 kg, DBL 6879.20 | A 000 989 76 51 |
