Remove/Install Purge Control Valve - AR47.30-P-8252S
Model 223 with Engine 256
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove upper Engine cover. | ||
| AP01.10-P-2405-01OB | |||

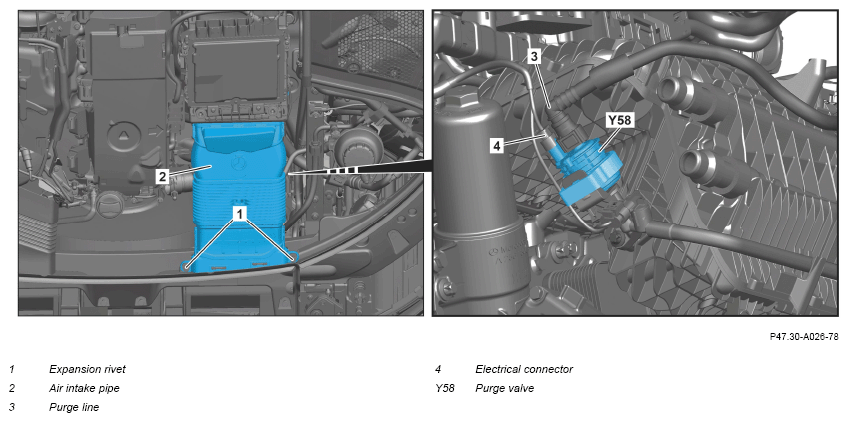

| 2 | Remove expansion rivets (1). | ||
| 3 | Detach the air intake pipe (2) upstream of the air filter and remove. | ||
| 4 | Position air extraction system in working area and switch on. | ||
| 000 588 00 85 00 Air extraction system | WS47.00-P-0039B | ||
| 5 | Remove the purge line (3) from the purge valve (Y58) and place it to one side. | Do not crush, kink or subject purge line (3) to tension. This will result in damage to purge line (3) and impair its function. |
|
| 6 | Seal exposed connections using suitable plugs. | Fig 1 | |
| 7 | Release and disconnect electrical connector (4). | ||
| 8 | Remove the purge valve (Y58). | ||
| 9 | Seal exposed connections using suitable plugs. | Fig 1 | |
| 10 | Install in the reverse order. | ||
| 11 | Read out and delete fault memory. | ||
| AD00.00-P-2000-06FR | |||
| Risk of accident from vehicle starting off by itself when Engine running. Risk of injury (bruises and burns) resulting from working on the Engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 12 | Perform Engine test run. While doing so, check Engine for proper operation and leak tightness. | ||
| 13 | Install air intake pipe (2). | ||
| 14 | Install upper Engine cover. | ||
| AP01.10-P-2405-01OB |
