Remove/Install Charge Air Pressure Sensor - AR09.41-P-2006SVZ
Engine 279 in model 223
Shown on removed engine
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove engine cover. | AR01.10-P-2405SVZ | |

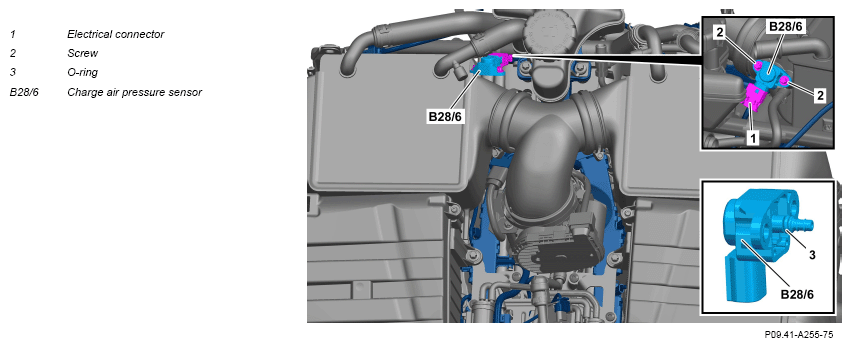

| 2 | Release electrical connector (1) and disconnect. | ||
| 3 | Unscrew screws (2) and remove charge air pressure sensor (B28/6). | Lubricant, rubber assembly 1 L |
*BR00.45-Z-1010-06A |
| Fig 2 | |||
| Check | |||
| 4 | Check charge air pressure sensor (B28/6) and O-ring (3) for damage. | If damage is present, ↓ Replace charge air pressure sensor (B28/6). |
|
| 5 | Install in the reverse order. | ||
| Check | |||
| 6 | Read out and delete fault memory using vehicle diagnosis system. | ||
| AD00.00-P-2000-06FR | |||
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. | AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Carry out engine test run and check engine for proper operation and leak tightness. |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1010-06A | Lubricant, rubber assembly 1 L | A 000 989 03 67 |
