Remove/Install Left Charge Air Distributor - AR09.41-P-8684SC
Engine 176 in model 223
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove engine with front axle carrier. | AR01.10-P-2500SC | |

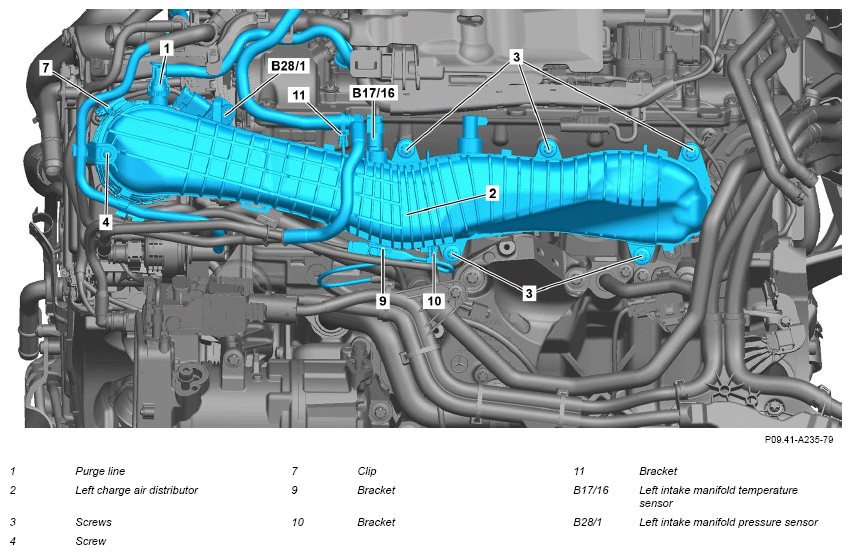

| 2 | Remove purge line (1) from the left charge-air distributor (2) and seal openings with suitable stop plugs. | Fig 3 | |
| 3 | Remove screw (4) and place holder with purge lines to one side. | ||
| 4 | Release and disconnect electrical connector of the left intake manifold pressure sensor (B28/1). | ||
| 5 | Release and disconnect electrical connector of the left intake manifold temperature sensor (B17/16). | ||
| 6 | Remove brackets (9, 10, 11) from the left charge-air distributor (2). | ||
| 7 | Loosen clamp (7) on the left charge-air distributor (2). | *BA09.41-P-1002-01X | |
| 8 | Remove screws (3) in reverse order to tightening procedure. | Tightening procedure |
AR09.41-P-8683-01MNL |
| *BA09.41-P-1004-01X | |||
| 9 | Remove left charge-air distributor (2). | Lubricant, rubber assembly 1 L |
*BR00.45-Z-1010-06A |

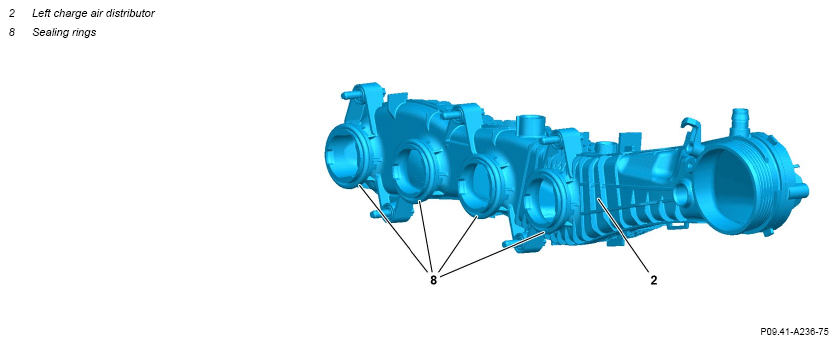

| Fig 2 | |||
| 10 | Remove the left intake manifold pressure sensor (B28/1). | When replacing left charge-air distributor (2). | AR09.41-P-1030SC |
| 11 | Remove left intake manifold temperature sensor (B17/16). | When replacing left charge-air distributor (2). | AR09.41-P-0041SC |
| 12 | Remove guides of sealing rings (8) at the left charge-air distributor (2). | When replacing left charge-air distributor (2). | |
| 13 | Install in the reverse order. |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA09.41-P-1002-01X | Bolt, clamp for charge air hose to charge-air distributor | Nm | 6 |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA09.41-P-1004-01X | Bolt, charge air distributor to cylinder head | Nm | 13 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1010-06A | Lubricant, rubber assembly 1 L | A 000 989 03 67 |
