Check Engine Cooling System For Leaktightness - AR20.00-P-1011SVZ

Engine 279 in model 223

Courtesy of MERCEDES-BENZ USA

	Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning  from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
Notice	Notes on coolant		AH20.00-P-2080-01KOA
	Notes on coolant level		AH20.00-P-1142-01CW
	Remove
1	Switch on ignition.
2	Adjust heater to maximum heating output.

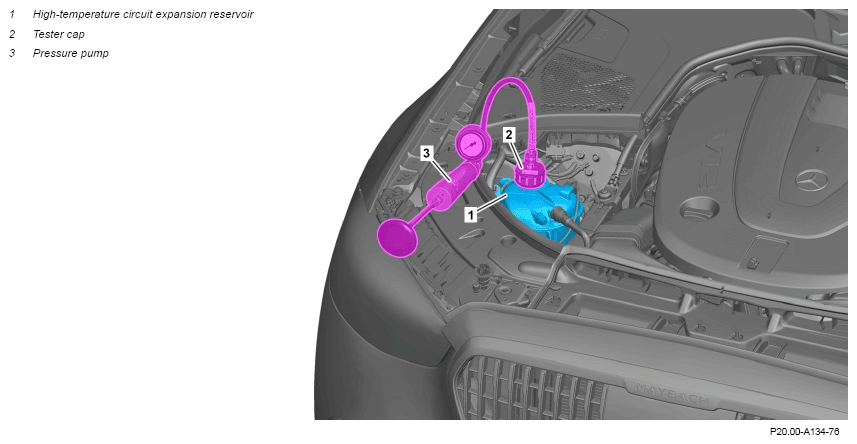

3	Carefully open cap of high-temperature circuit expansion reservoir (1), release overpressure, and remove cap.
4	Check coolant level of high-temperature circuit, correct if necessary.	Cooling system	*BF20.00-P-1001-02GA
5	Attach tester cap (2) to high-temperature circuit expansion reservoir (1).	Test cap	Fig 1
6	Connect pressure pump (3) to tester cap (2).	Test cap	Fig 1
		Pressure pump	Fig 2
	Check
7	Apply test pressure to high-temperature circuit for 2 min.	Do not exceed the specified test pressure. Damage will occur otherwise to the engine cooling system. There should be no pressure loss within a period of 2 minutes.
		Test pressure for pressure-testing the engine cooling system	*BE20.30-P-1005-01A
8	Perform visual check of coolant-carrying component parts and connecting points for condition and coolant loss.	Where pressure loss is detected.
	Install
9	Release overpressure via valve on pressure pump (3).
10	Remove pressure pump (3) from tester cap (2).
11	Detach tester cap (2) from high-temperature circuit expansion reservoir (1).
12	Switch off ignition.
13	Check coolant level and antifreeze content of high-temperature circuit, correct if necessary.	Cooling system	*BF20.00-P-1001-02GA
14	Seal high-temperature circuit expansion reservoir (2) with cap.

RADIATOR OR EXPANSION RESERVOIR CAP

Number	Designation			1-stage cover latch	2-stage latch cover
BE20.30-P-1005-01A	Test pressure for pressure-testing the engine cooling system	Overpressure	bar	1, 4	1, 4

COOLING SYSTEM

Number	Designation				Engine 279 in model 223
BF20.00-P-1001-02GA	Cooling system	Workshop replacement amount	Main circuit	Liter	≈ 16, 0
			Low-temperature circuit	Liter	≈ 5, 0
		Antifreeze/water	Down to -37°C	%	50/50
			-38°C and below	%	55/45
			Fluids specifications		BB00.40-P-0310-01A
			Fluids specifications		BB00.40-P-0325-06A
			Fluids specifications		BB00.40-P-0326-06A

Fig 1: Identifying Test Cap (210 589 00 91 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Pressure Pump (124 589 24 21 00)

Courtesy of MERCEDES-BENZ USA
