Remove/Install Lower Coolant Expansion Reservoir For Low-Temperature Circuit - AR09.41-P-0060SC
Engine 176 in model 223
MODIFICATION NOTES
| 24.06.2021 | Document completely revised. | Operation steps 1 to 16 |
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Notes on coolant level | AH20.00-P-1142-01CW | ||
| Remove/install | |||
| 1 | Remove fan unit. | AR20.40-P-5050SC | |
| 2 | Attach protective plate for cooler unit. | ||
| WF58.50-P-0110-01A | |||
| 3 | Remove the coolant hose (1) from the bottom expansion reservoir (2). | AR20.20-P-7441-01RQ | |
| 4 | Remove coolant hoses (11). | AR20.20-P-7441-01RQ | |

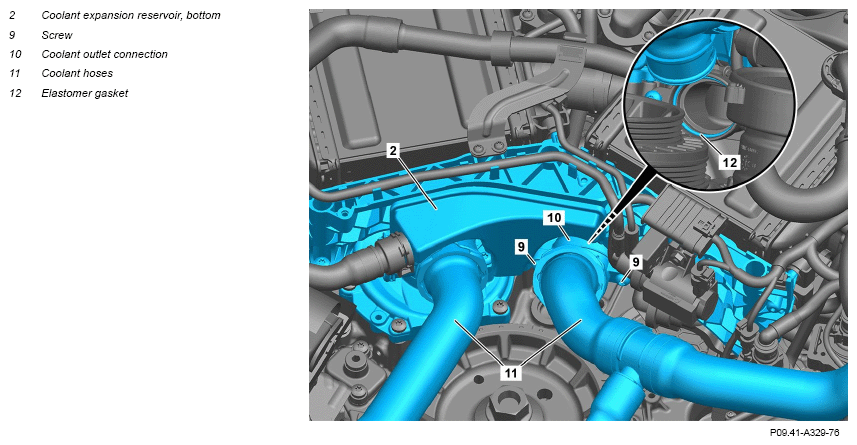

| 5 | Unscrew screws (9) and remove coolant outlet connection (10). | *BA20.10-P-1009-01ZA | |
| 6 | Check elastomer molded seal (12) in thermostat housing. | If elastomer molded seal (12) is damaged: ↓ Replace elastomer molded seal (12). |
|
| 7 | Remove the holder (7). | ||
| 8 | Remove vacuum lines (6) from wastegate pressure transducer (Y31/3) and place to one side. | ||
| 9 | Release and disconnect electrical connectors (5) and place electrical wiring harness (8) to one side. | ||
| 10 | Remove screws (3). | *BA09.41-P-1010-01X | |
| 11 | Remove lower expansion reservoir (2) until coolant line (4) on lower expansion reservoir (2) is accessible. | Do not crush, kink, or subject coolant line (4) to tension. This will result in damage to the coolant line (4) and can impair its function. |
|
| 12 | Remove coolant line (4) on lower expansion reservoir (2) and seal openings with suitable stop plugs. | AR20.30-P-0010-02SC | |

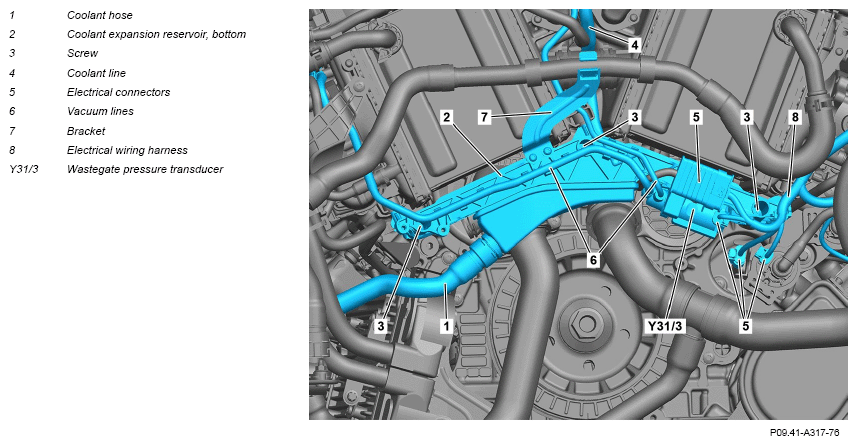

| Fig 1 | |||
| Check | |||
| 13 | Check elastomer bearings of charge air coolers for damage. | Lubricant, rubber assembly 1 L If damage is present: ↓ Replace appropriate elastomer bearing. |
*BR00.45-Z-1010-06A |
| 14 | Remove the wastegate pressure transducer (Y31/3) on the bottom expansion reservoir (2). | When replacing the lower expansion reservoir (2). | AR09.41-P-2004SC |
| 15 | Remove coolant line (4). | When replacing the lower expansion reservoir (2). | AR20.30-P-0010-02SC |
| 16 | Install in the reverse order. |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA09.41-P-1010-01X | Screw, low-temperature circuit expansion reservoir at bottom to charge air cooler/crankcase/cylinder head cover holder | Nm | 9 |
COOLANT PUMP, COOLANT THERMOSTAT
| Number | Designation | Engine 176 | ||
|---|---|---|---|---|
| BA20.10-P-1009-01ZA | Screw, coolant line to thermostat housing | M6 | Nm | 8 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1010-06A | Lubricant, rubber assembly 1 L | A 000 989 03 67 |
