Replace Main Circuit Coolant - AP20.00-P-2082S
Engine 176, 177, 256, 279, 656 in model 223

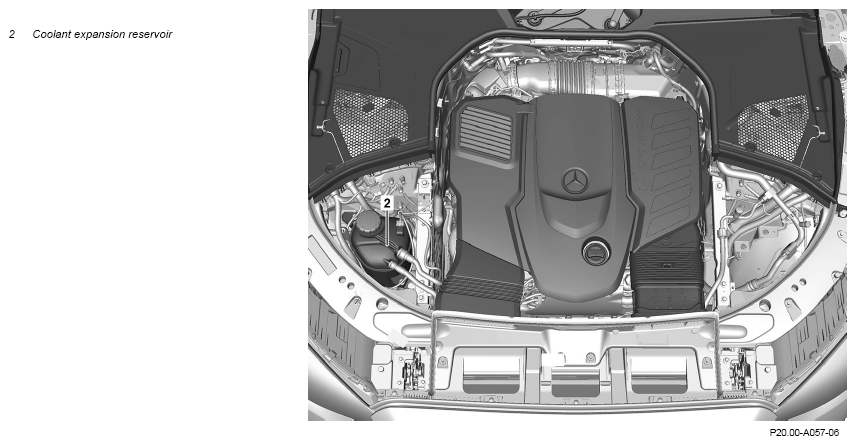

Shown on engine 656.9 in model 223.130
| Risk of injury from engine start by remote start function | Prior to starting work, open engine hood, do not reach into rotation range or hazard area of freely rotating parts, wear closed and snug-fitting work clothes | AS00.00-Z-0024-01A | |
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury due to fan starting unexpectedly | Do not reach into the rotation area or danger zone of the fan. Wear closed and snug-fitting work clothes. | AS20.40-Z-0001-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Check | |||
| 1 | Check coolant level in coolant expansion reservoir (2). | AP20.30-P-2050P | |
| Drain off | |||
| 2 | Drain off coolant. | ||
| Engine 176 in model 223 | AR20.00-P-1142SC | ||
| Engine 177.8 in model 223 | AR20.00-P-1142SCA | ||
| Engine 256 in model 223 | AR20.00-P-1142SB | ||
| Engine 279 in model 223 | AR20.00-P-1142SVZ | ||
| Engine 656 in model 223 | AR20.00-P-1142S | ||
| Pour in | |||
| 3 | Pour in new coolant. | ||
| Engine 176 in model 223 | AR20.00-P-1142SC | ||
| Engine 177.8 in model 223 | AR20.00-P-1142SCA | ||
| Engine 256 in model 223 | AR20.00-P-1142SB | ||
| Engine 279 in model 223 | AR20.00-P-1142SVZ | ||
| Engine 656 in model 223 | AR20.00-P-1142S | ||
| Coolant specifications | BB00.40-P-0310-01A |
