Check Low-Temperature Circuit Coolant Level - AP20.30-P-2052Q
Engine 176 in model 223
Shown on engine 176.9 in model 223.163
Shown on engine 176.9 in model 223.163
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury from engine start by remote start function | Prior to starting work, open engine hood, do not reach into rotation range or hazard area of freely rotating parts, wear closed and snug-fitting work clothes | AS00.00-Z-0024-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Remove | |||

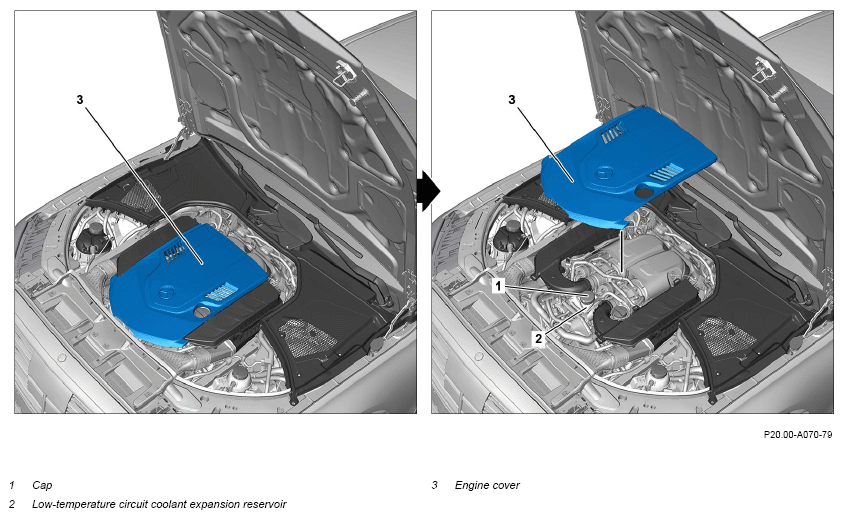

| 1 | Remove engine cover (3). | AP01.10-P-2405-01OA | |

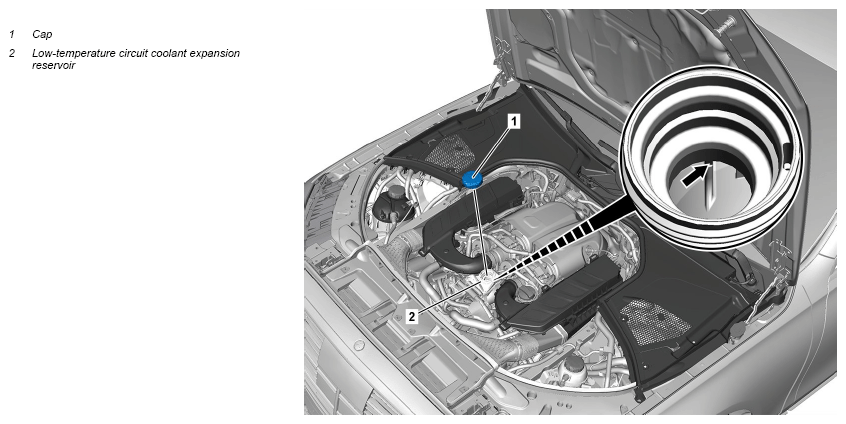

| 2 | Unscrew cap (1) of low-temperature circuit coolant expansion reservoir (2). | ||
| Check | |||
| 3 | Check coolant level. | If the coolant level is too low, ↓ Check cooling system for leak tightness and coolant for antifreeze content. |
|
| Coolant specifications |
BB00.40-P-0310-01A | ||
| Install | |||
| 4 | Seal low-temperature circuit coolant expansion reservoir (2) with cap (1). | ||
| 5 | Install engine cover (3). | AP01.10-P-2405-01OA |
