Remove/Install Engine Covers - AP01.10-P-2405-01OA

Engine 176 in model 223

Courtesy of MERCEDES-BENZ USA

Shown on engine 176.9 in model 223.176

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

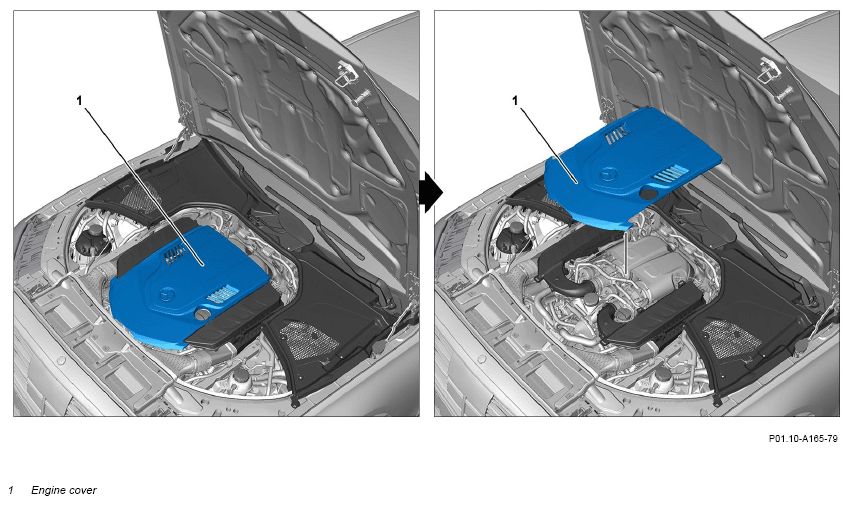

Shown on engine cover of engine 176.9 in model 223.176

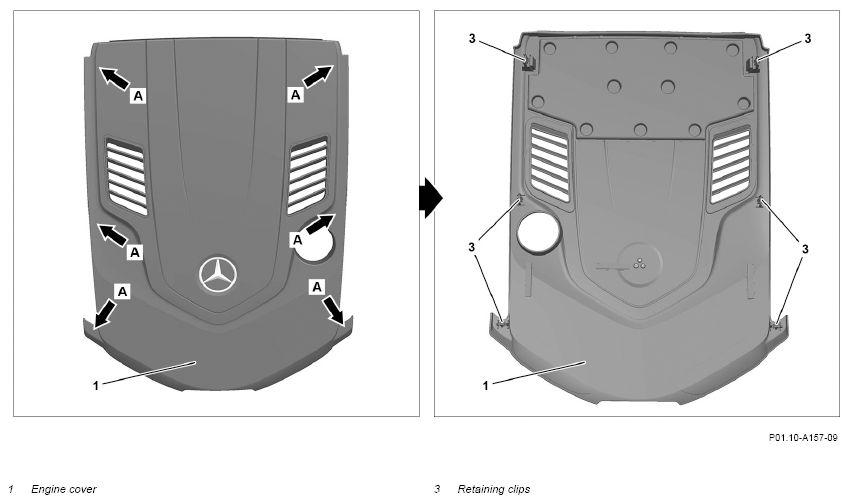

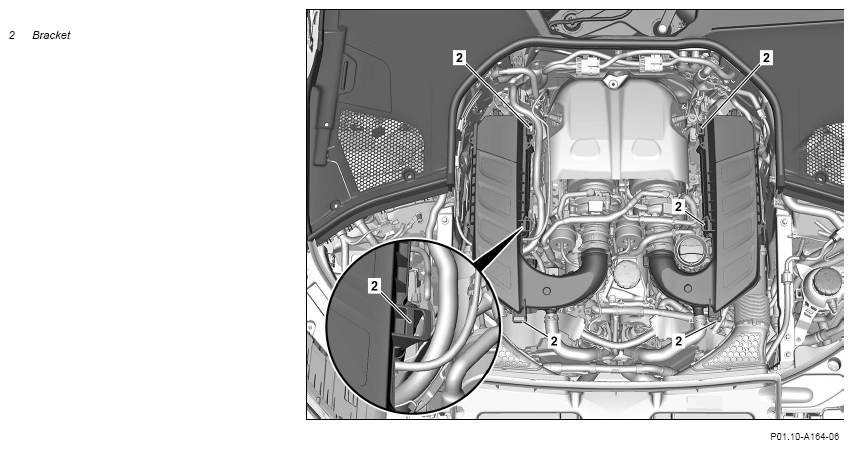

When removing and installing the engine cover (1) always make sure that only the positions shown in the picture (arrows A) are to be used for pulling during removal or for pressing during installation. The retaining clips (3) latch in the brackets (2) there. Do not exert any force to the engine cover at any other points.

The engine cover can get damaged if these instructions are not observed.
