Check Engine Compartment Air Flap - AP20.00-P-2052G
Engine 176 in model 223
Shown on engine 176.9 in model 223.176
Shown on engine 176.9 in model 223.176
Shown on engine 176.9 in model 223.176
Shown on engine 176.9 in model 223.176
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury from engine start by remote start function | Prior to starting work, open engine hood, do not reach into rotation range or hazard area of freely rotating parts, wear closed and snug-fitting work clothes | AS00.00-Z-0024-01A | |
| Remove | |||

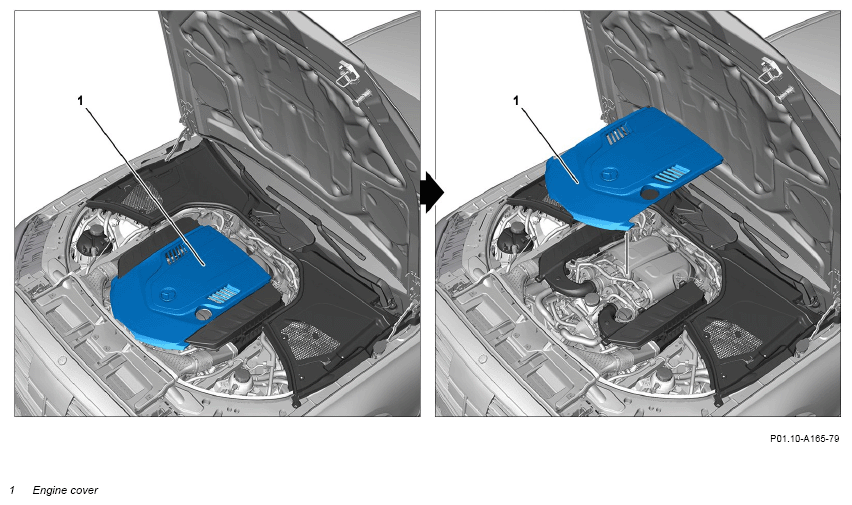

| 1 | Remove engine cover (1). | AP01.10-P-2405-01OA | |
| Clean | |||

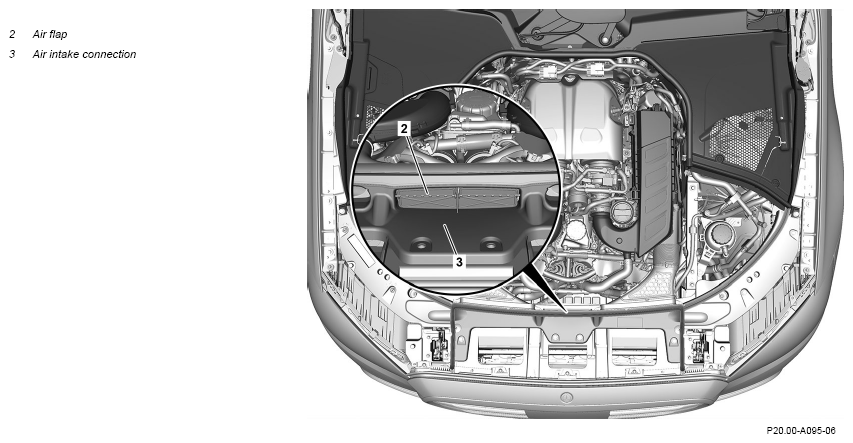

| 2 | Clean area around air intake fitting (3) and air flap (2). | ||
| Check | |||
| 3 | Check air flap (2) for proper operation by opening and closing it. | The engine compartment can otherwise be damaged. If problems are determined, ↓ rectify the problems. |
|
| 4 | Check air intake fitting (3) for damage, deformation and correct seating. | If problems are determined, ↓ rectify the problems. |
|

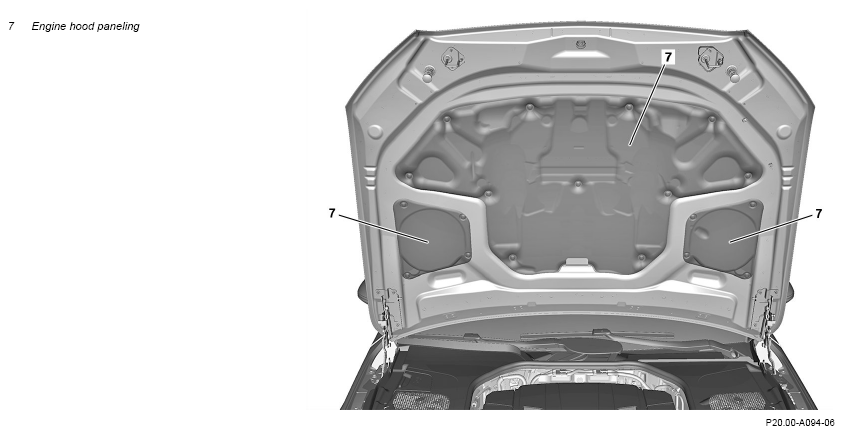

| 5 | Check engine hood paneling (7) for damage and deformation and proper seating. | If problems are determined, ↓ rectify the problems. |
|
| Clean | |||

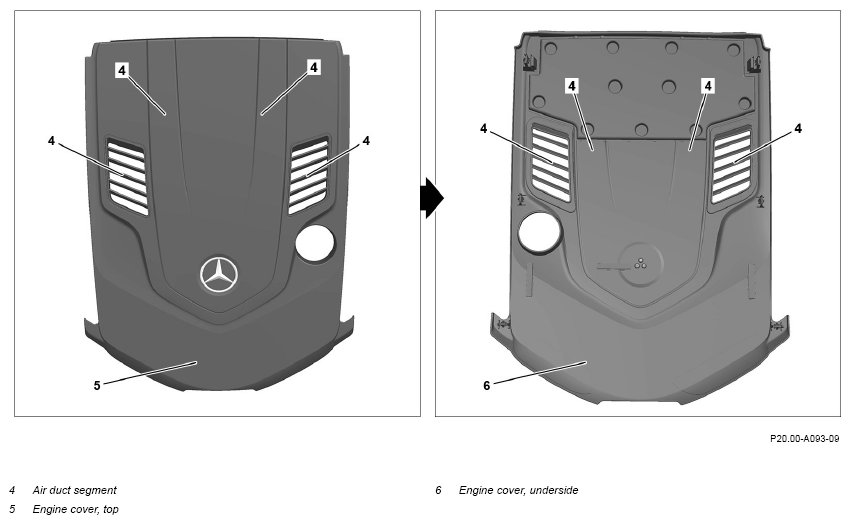

| 6 | Clean area around air duct segments (4) on upper side of engine cover (5) and lower side of engine cover (6). | ||
| Check | |||
| 7 | Check air duct segments (4) on upper side of engine cover (5) and lower side of engine cover (6) for damage. | The engine compartment can otherwise be damaged. If problems are determined, ↓ rectify the problems. |
|
| Install | |||
| 8 | Install engine cover (1). | AP01.10-P-2405-01OA |
