Remove/Check/Install Front Axle Brake Pads - AR42.10-P-1610SA
Model 223
with code B06 (Silver brake calipers)
except code B07 (AMG - ceramic brake system)
except code U70 (red-painted brake callipers)
Model 223
with code B07 (AMG - ceramic brake system)
except code B06 (Silver brake calipers)
except code U70 (red-painted brake callipers)
Model 223
with code U70 (red-painted brake callipers)
except code B06 (Silver brake calipers)
except code B07 (AMG - ceramic brake system)
MODIFICATION NOTES
| 29.09.2022 | Work procedure adapted. | ||
| 23.01.2023 | Factual information and conditional continuation added. | Operation step 22 |

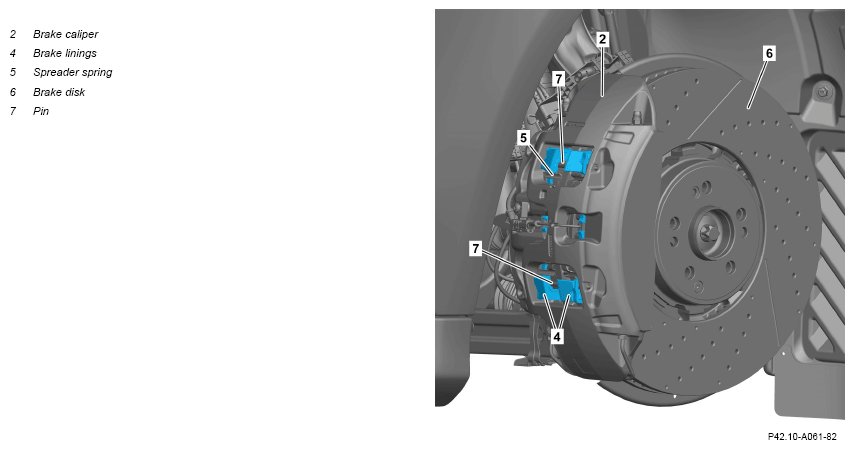

Shown with code B07 (AMG - ceramic brake system)
Shown with code B06 (Brake calipers painted silver)

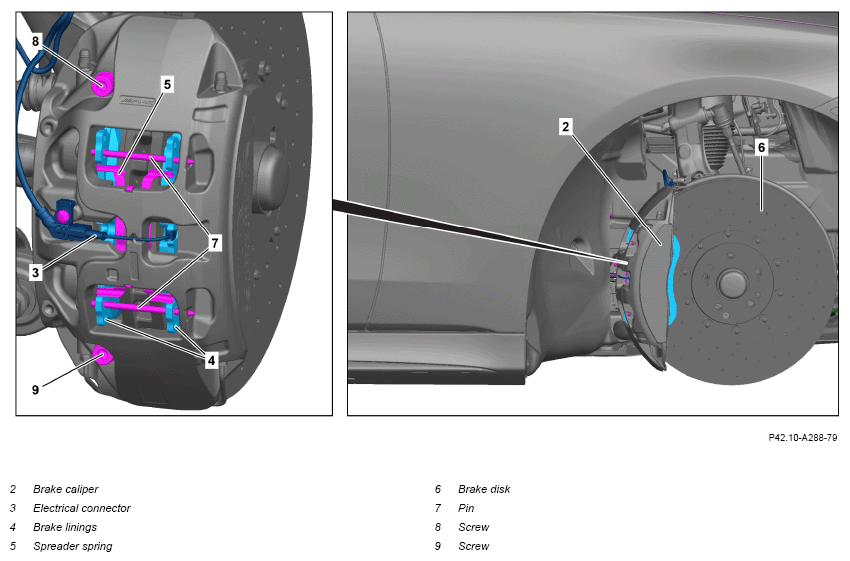

Shown with code B07 (AMG - ceramic brake system)
| Risk of accident when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work. | Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system. | AS42.50-Z-0002-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on handling, transport and storage of ceramic brake disks | AH42.10-P-9406-13A | |
| Notice | Notes on handling, transport and storage of composite brake disks | AH42.10-P-9406-12LF | |
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Brake fluid notes | AH42.50-P-0001-01A | |
| Notice | Notes on repairs to brake system | AH42.00-P-0003-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove | |||
| 1 | Remove cover over brake fluid reservoir. | ||
| 2 | Clean area around cap of brake fluid reservoir. | Assembly cleaner | *BR00.45-Z-1028-04A |
| 3 | Remove cap of brake fluid reservoir and suction off some brake fluid. | ||
| 4 | Remove front wheels. | AR40.10-P-1102A | |
| 5 | Release and disconnect electrical connector (3) of brake lining wear sensor (S10/2) from brake caliper (2). | When removing brake linings (4) at front right. | |
| 6 | Remove electrical wiring harness of brake lining wear sensor (S10/2) from brake caliper (2). | When removing brake linings (4) at front right. | |
| 7 | Drive out bolts (7) using a suitable tool and remove. | ||
| 8 | Unscrew screw (8), replace with guide pin, and tighten guide pin slightly. | Fig 1 | |
| 9 | Unscrew screw (9), replace with guide pin, and tighten guide pin slightly. | Fig 1 | |
| 10 | Push brake caliper (2) with connected brake hose to side onto guide pin. | Do not stretch, crush or kink the brake hoses and brake lines. This leads to damage to the brake hoses and brake lines, and it can impair their function. |
|
| 11 | Remove brake linings (4) from brake caliper (2). | ||
| 12 | Unclip spreader spring (5) from brake caliper (2) and remove. | ||
| 13 | Pull brake lining wear sensor (S10/2) out of backing plate of brake lining (4). | When replacing brake linings (4) or when replacing brake lining wear sensor (S10/2). |
|
| 14 | Press back brake pistons with pusher tool. | ||
| Fig 2 | |||
If the brake pistons are sluggish, ↓ Replace brake caliper (2). |
Fig 3 | ||
| AR42.10-P-0070SA | |||
| Check | |||
| 15 | Check brakepads (4) for wear and condition. | ||
| If there is a problem, ↓ replace brakepads (4) as a set. |
AP42.10-P-4252HH | ||
| 16.1 | Check condition of brake disk (6). | Model 223 with code B06 (Silver brake calipers) except code B07 (AMG - ceramic brake system) except code U70 (red-painted brake callipers) Model 223 with code U70 (red-painted brake callipers) except code B06 (Silver brake calipers) except code B07 (AMG - ceramic brake system) |
|
| If there is a problem, ↓ replace brake disks (6) in sets. |
AP42.10-P-4256A | ||
| AR42.10-P-0230S | |||
| 16.2 | Check condition of brake disk (6). | Model 223 with code B07 (AMG - ceramic brake system) except code B06 (Silver brake calipers) except code U70 (red-painted brake callipers) |
|
| If there is a problem, ↓ replace corresponding brake disk (6). |
AR42.10-P-0270RG | ||
| AR42.10-P-0230S | |||
| 17 | Check brake caliper (2) for damage. | If there is a problem, ↓ Replace brake caliper (2). |
|
| AR42.10-P-0070SA | |||
| Install | |||
| 18 | Clean contact surfaces of brake linings (4) at brake caliper (2) and at brake pistons. | Do not use sharp-edged or pointed objects. Otherwise, the brake caliper (2) and the dust boots on the brake pistons will be damaged. |
|
| Assembly cleaner | *BR00.45-Z-1028-04A | ||
| 19 | Insert brake lining wear sensor (S10/2) into backing plate of brake lining (4). | When replacing brake linings (4) at front right or when replacing brake lining wear sensor (S10/2). | |
| 20 | Install spreader spring (5) in brake caliper (2). | ||
| 21 | Insert brakepads (4). | ||

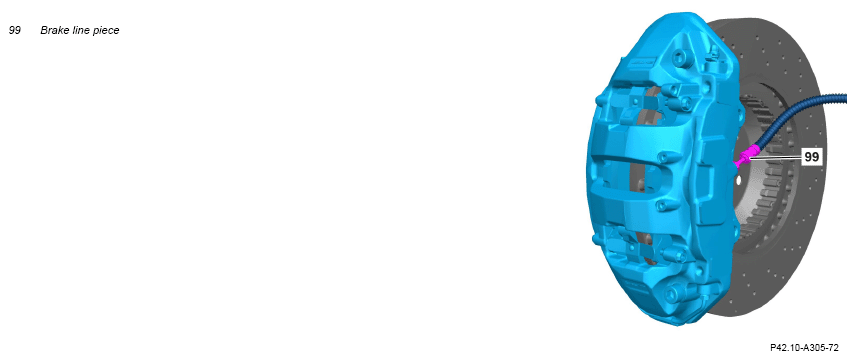

| 22 | Slide brake caliper (2) onto brake disk (6). | Do not stretch, crush or kink the brake hoses and brake lines. This leads to damage to the brake hoses and brake lines, and it can impair their function. The brake line pieces (99) of the brake hoses must not be bent. Replace the affected brake hoses with damaged brake line pieces (99) immediately. If brake line piece (99) is damaged, ↓ replace affected brake hose. |
|
| Model 223 with code B06 (Silver brake calipers) except code B07 (AMG - ceramic brake system) except code U70 (red-painted brake callipers) except code Z07 (B7 armoring on special protection version) Model 223 with code B07 (AMG - ceramic brake system) except code B06 (Silver brake calipers) except code U70 (red-painted brake callipers) except code Z07 (B7 armoring on special protection version) Model 223 with code U70 (red-painted brake callipers) except code B06 (Silver brake calipers) except code B07 (AMG - ceramic brake system) except code Z07 (B7 armoring on special protection version) |
AR42.10-P-0026S | ||
| 23 | Install bolts (7). | ||
| 24 | Unscrew lower guide pin, replace with screw (9) and tighten screw (9) slightly. | ||
| Fig 1 | |||
| 25 | Unscrew upper guide pin, replace with screw (8), and tighten screw (8) slightly. | ||
| Fig 1 | |||
| 26 | Tighten screws (8, 9). | *BA42.10-P-1001-10CA | |
| 27 | Attach electrical wiring harness of brake lining wear sensor (S10/2) to brake caliper (2). | When installing brake linings (4) at front right. | |
| *BA42.10-P-1004-10CA | |||
| 28 | Connect electrical connector (3) of brake lining wear sensor (S10/2). | When installing brake linings (4) at front right. | |
| 29 | Install front wheels. | AR40.10-P-1102A | |
| 30 | Operate brake pedal several times until brake pads (4) make contact with brake disks (6). | ||
| Check | |||
| 31 | Check brake fluid level in brake fluid reservoir, correct if necessary. | ||
| AP42.10-P-4210G | |||
| 32 | Perform brake test on test stand. | ||
| AP42.00-P-4290BS |
FRONT AXLE BRAKE CALIPER
| Number | Designation | Model 223.182 | Model 223 (except 223.182) with code Z07 | ||
|---|---|---|---|---|---|
| BA42.10-P-1001-10CA | Bolt, brake caliper to steering knuckle | Step 1 | Nm | 120 | 200 |
| Step 2 | ∠° | - | 90 | ||
FRONT AXLE BRAKE CALIPER
| Number | Designation | Model 223 (except 223.182) except code Z07 |
||
|---|---|---|---|---|
| BA42.10-P-1001-10CA | Bolt, brake caliper to steering knuckle | Step 1 | Nm | 150 |
| Step 2 | ∠° | 45 | ||
FRONT AXLE BRAKE CALIPER
| Number | Designation | Model 223.182 | Model 223 (except 223.182) with code Z07 | ||
|---|---|---|---|---|---|
| BA42.10-P-1004-10CA | Bolt, brake wear sensor to brake caliper | M6 | Nm | 8 | 8 |
FRONT AXLE BRAKE CALIPER
| Number | Designation | Model 223 (except 223.182) except code Z07 | ||
|---|---|---|---|---|
| BA42.10-P-1004-10CA | Bolt, brake wear sensor to brake caliper | M6 | Nm | 8 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
